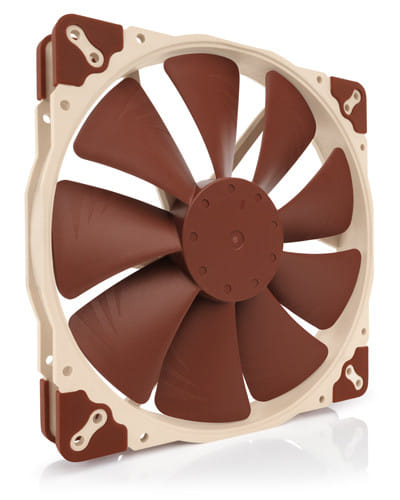

Noctua NF A20 5V PWM, Fan, 20 cm, 350 RPM, 800 RPM, 146.9 m3/h, Beige, Red
The NF A20 5V PWM is a PWM enabled 5V variant of Noctua
| Performance | |
| Suitable location Locations in which the product can be used. | Computer case |
| Type Characteristics of the device. | Fan |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 20 cm |
| Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. | Not supported |
| Compatible processor series A processor which is compatible with this device, belongs to a 'series' which is part of 'family' e.g Celeron D, Celeron G, Celeron M, or, in some cases, is the same as 'family'. | Not supported |
| Rotational speed (min) | 350 RPM |
| Rotational speed (max) | 800 RPM |
| Noise level with LNA (max) | 18.1 dB |
| Airflow | 146.9 m³/h |
| Maximum air pressure | 1.08 mmH2O |
| Pulse-width modulation (PWM) support |
 |
| Bearing type | Self-Stabilising Oil-pressure Bearing (SSO) |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Beige, Red |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Number of fan blades | 9 |
| Fan connector | 4-pin |
| Power | |
| Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable. | 0.85 W |
| Voltage | 5 V |
| Maximum current The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge. | 0.17 A |
| Weight & dimensions | |
| Fan dimensions (W x D x H) | 200 x 200 x 30 mm |
| Package width The distance from one side of the packaging to the other. | 285 mm |
| Package depth The distance from the front to the back of the packaging. | 38 mm |
| Package height The distance from the top to the bottom of the packaging. | 285 mm |
| Package weight Weight of the packaged product. | 721 g |
| Packaging content | |
| Cables included | Fan |
| Screws included |
|
| Other features | |
| Mean time to failure (MTTF) | 150000 h |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 300 mm |
| Master (outer) case length | 420 mm |
| Master (outer) case height | 315 mm |
| Master (outer) case gross weight | 8 kg |
| Products per master (outer) case | 10 pc(s) |
| SKU | 729935 |
| MPN | A20-5V-PWM |
| Brand | Noctua |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://noctua.at/ |
