Manufacturer: Noctua. Designed in Austria, Noctuas premium cooling solutions are internationally renowned for their low noise, exceptional performance and outstanding quality. Having received more than one thousand awards and recommendations from leading hardware websites and magazines, Noctua is the most acclaimed manufacturer of premium quality quiet cooling solutions and the number one choice for silent, high performance PC builds.

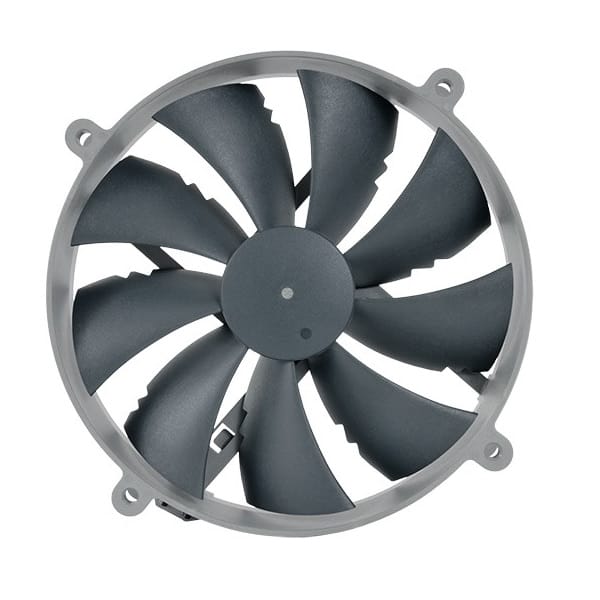

The 140mm NF-P14R Redux Edition PWM fan features Noctuas novel, custom designed PWM IC for fully automatic control and ultra low power consumption. Equipped with Noctuas signature SSO bearing and topped off with a 6 years manufacturers warranty, the NF-P14R PWM Redux Edition is a premium choice for the highest demands.
Highlights:
* Manufacturers model code: NF-P14R PWM Redux Edition.
* Market orientation: Quiet PC, cooling enthusiasts & overclockers.
* RPM: 1500.
* CFM: 78.6.
* dBA: 25.8.
* Fan width: 140mm.
* Fan depth: 25mm.
* Bearing type: SSO (Self Stabilising Oil).
* Connector: 4Pin PWM.
* Warranty: 6 years.
Do you want to know more? Check out Noctuas product introduction page, detailed specifications, infosheet & product FAQ.
The 140mm NF-P14R Redux Edition PWM fan features Noctuas novel, custom designed PWM IC for fully automatic control and ultra low power consumption. Equipped with Noctuas signature SSO bearing and topped off with a 6 years manufacturers warranty, the NF-P14R PWM Redux Edition is a premium choice for the highest demands.
Highlights:
* Manufacturers model code: NF-P14R PWM Redux Edition.
* Market orientation: Quiet PC, cooling enthusiasts & overclockers.
* RPM: 1500.
* CFM: 78.6.
* dBA: 25.8.
* Fan width: 140mm.
* Fan depth: 25mm.
* Bearing type: SSO (Self Stabilising Oil).
* Connector: 4Pin PWM.
* Warranty: 6 years.
Do you want to know more? Check out Noctuas product introduction page, detailed specifications, infosheet & product FAQ.
| Performance | |
| Suitable location Locations in which the product can be used. | Processor |
| Type Characteristics of the device. | Fan |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 14 cm |
| Rotational speed (min) | 450 RPM |
| Rotational speed (max) | 1500 RPM |
| Noise level (high speed) How loud the device is when used at high speed. | 25.8 dB |
| Airflow | 133.7 m³/h |
| Pulse-width modulation (PWM) support |
 |
| Bearing type | Self-Stabilising Oil-pressure (SSO) bearing |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 150000 h |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Grey |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Fan connector | 4-pin |
| Power | |
| Fan voltage | 12 V |
| Fan current | 0.2 A |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 140 mm |
| Depth The distance from the front to the back of something. | 140 mm |
| Height The measurement of the product from head to foot or from base to top. | 25 mm |
| Cable length How long the cable is. | 0.4 m |
| Technical details | |
| Warranty period | 6 year(s) |
| Packaging content | |
| Screws included |
|
| Number of screws | 4 |
| Other features | |
| Mounting hole pattern (W x D) | 105 x 105 mm |
| Power Energy that is produced by mechanical, electrical, or other means and used to operate a device. | 2.4 W |
| SKU | 324303 |
| MPN | NF-P14R-REDUX-1500-PWM |
| Brand | Noctua |
| Product Condition | Brand New/Unused |
| Fan Size (mm) | 140mm |
| Warranty Period | 6 Years Warranty |
| Warranty Contact | https://noctua.at/ |
