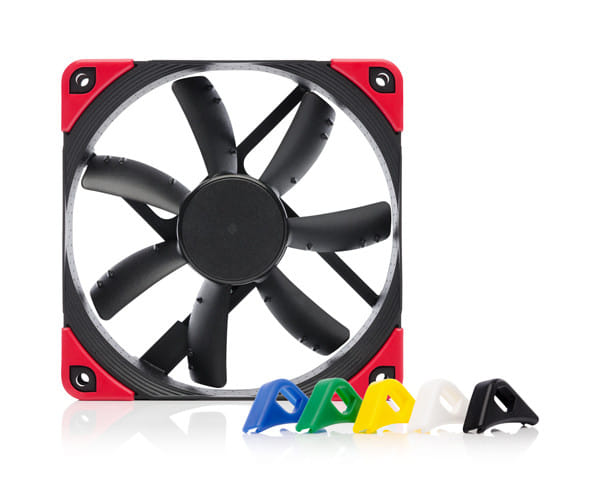

Manufacturer: Noctua. The NF-S12A is one of Noctuas most renowned and popular 120mm fans. Its outstanding airflow efficiency and superb acoustics make it ideal for case cooling and other low-impedance applications. The chromax.black.swap edition combines the NF-S12As signature quiet cooling performance with an attractive all-black design and a bundle of swappable red, white, blue, green, yellow and black anti-vibration pads that allow the colour-customisation of the fan to match individual build colour schemes. For further customisation, a wide range of accessories such as coloured cables, additional anti-vibration pads and anti-vibration mounts are available separately. Topped off with Noctuas trusted premium-grade SSO2 bearing, more than 150,000 hours MTTF and 6-year manufacturers warranty, the NF-S12A PWM chromax.black.swap is the perfect choice for all users who value individual, focused build aesthetics just as much as class-leading quality and performance.
Highlights:
* Frame type: Square.
* RPM: 1200.
* CFM: 63.
* dBA: 17.8.
* Fan length: 120mm.
* Fan width: 120mm.
* Fan depth: 25mm.
* Bearing type: SSO2 (Self Stabilising Oil v2).
* Connector: 4Pin PWM.
* Warranty: 6 years.
Would you like to know more? Check out the full product information page.
Highlights:
* Frame type: Square.
* RPM: 1200.
* CFM: 63.
* dBA: 17.8.
* Fan length: 120mm.
* Fan width: 120mm.
* Fan depth: 25mm.
* Bearing type: SSO2 (Self Stabilising Oil v2).
* Connector: 4Pin PWM.
* Warranty: 6 years.
Would you like to know more? Check out the full product information page.
| Performance | |
| Suitable location Locations in which the product can be used. | Computer case |
| Type Characteristics of the device. | Fan |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. | Not supported |
| Compatible processor series A processor which is compatible with this device, belongs to a 'series' which is part of 'family' e.g Celeron D, Celeron G, Celeron M, or, in some cases, is the same as 'family'. | Not supported |
| Rotational speed (min) | 300 RPM |
| Rotational speed (max) | 1200 RPM |
| Airflow | 107.5 m³/h |
| Pulse-width modulation (PWM) support |
 |
| Bearing type | Self-Stabilising Oil-pressure Bearing (SSO) |
| Quantity per pack | 1 pc(s) |
| Fan static pressure | 1.19 mmH2O |
| Fan's mean time to failure (MTTF) | 150000 h |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| Fan connector | 4-pin |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 1.44 W |
| Voltage | 12 V |
| Maximum current The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge. | 0.12 A |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 120 mm |
| Depth The distance from the front to the back of something. | 120 mm |
| Height The measurement of the product from head to foot or from base to top. | 25 mm |
| Cable length How long the cable is. | 0.3 m |
| Package width The distance from one side of the packaging to the other. | 185 mm |
| Package depth The distance from the front to the back of the packaging. | 35 mm |
| Package height The distance from the top to the bottom of the packaging. | 215 mm |
| Package weight Weight of the packaged product. | 286 g |
| Packaging content | |
| Screws included |
|
| Number of screws | 4 |
| Other features | |
| Mounting hole pattern (W x D) | 105 x 105 mm |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 17.8 dB |
| Mean time to failure (MTTF) | 150000 h |
| SKU | 324366 |
| MPN | NF-S12A-PWM-CH-BK-S |
| Brand | Noctua |
| Product Condition | Brand New/Unused |
| Fan Size (mm) | 120mm |
| Stock Availability | Available for Shipping, In Stock at Blacktown |
| Warranty Period | 6 Years Warranty |
| Warranty Contact | https://noctua.at/ |
