Manufacturer: Noctua. Designed in Austria, Noctuas premium cooling solutions are internationally renowned for their low noise, exceptional performance and outstanding quality. Having received more than one thousand awards and recommendations from leading hardware websites and magazines, Noctua is the most acclaimed manufacturer of premium quality quiet cooling solutions and the number one choice for silent, high performance PC builds.

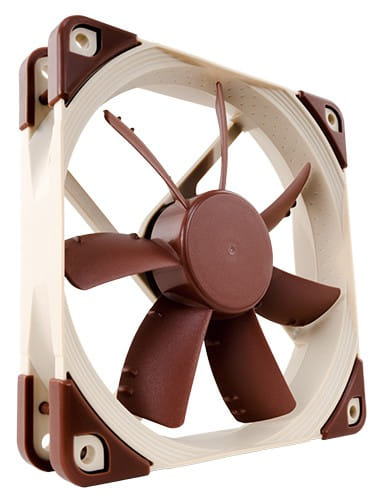

Featuring a further refined blade design with anti stall knobs that works in tandem with the new advanced acoustic optimisation frame, the NF-S12A improves the airflow & noise efficiency of its renowned predecessor by up to eight percent.The PWM version sports Noctuas custom designed NE-FD1 IC for fully automatic speed control via 4 pin fan headers and comes with a low noise adaptor to reduce the maximum speed during PWM control from 1200 to 900rpm. Its superb running smoothness, SSO2 bearing and Noctuas trusted premium quality make it an elite choice for quiet case cooling.
Highlights:
* Manufacturers model code: NF-S12A PWM.
* Market orientation: Quiet PC, cooling enthusiasts & overclockers.
* RPM: 1200.
* CFM: 63.
* dBA: 17.8.
* Fan width: 120mm.
* Fan depth: 25mm.
* Bearing type: SSO2 (Self Stabilising Oil2).
* Connector: 4Pin PWM.
* Warranty: 6 years.
Do you want to know more? Check out Noctuas product introduction page, detailed specifications, infosheet & product FAQ.
Featuring a further refined blade design with anti stall knobs that works in tandem with the new advanced acoustic optimisation frame, the NF-S12A improves the airflow & noise efficiency of its renowned predecessor by up to eight percent.The PWM version sports Noctuas custom designed NE-FD1 IC for fully automatic speed control via 4 pin fan headers and comes with a low noise adaptor to reduce the maximum speed during PWM control from 1200 to 900rpm. Its superb running smoothness, SSO2 bearing and Noctuas trusted premium quality make it an elite choice for quiet case cooling.
Highlights:
* Manufacturers model code: NF-S12A PWM.
* Market orientation: Quiet PC, cooling enthusiasts & overclockers.
* RPM: 1200.
* CFM: 63.
* dBA: 17.8.
* Fan width: 120mm.
* Fan depth: 25mm.
* Bearing type: SSO2 (Self Stabilising Oil2).
* Connector: 4Pin PWM.
* Warranty: 6 years.
Do you want to know more? Check out Noctuas product introduction page, detailed specifications, infosheet & product FAQ.
| Performance | |
| Suitable for Who can use the product, or what the product can be used for. | Computer case |
| Type Characteristics of the device. | Fan |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Number of speeds The different speeds that the device can operate at. | 3 |
| Rotational speed (min) | 300 RPM |
| Rotational speed (max) | 1200 RPM |
| Noise level (low speed) | 10.7 dB |
| Noise level (high speed) How loud the device is when used at high speed. | 17.8 dB |
| Airflow | 107.5 m³/h |
| Minimum air pressure | 0.73 mmH2O |
| Maximum air pressure | 1.19 mmH2O |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 150000 h |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Beige, Brown |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Power | |
| Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable. | 1.44 W |
| Voltage | 12 V |
| Maximum current The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge. | 0.12 A |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 120 mm |
| Depth The distance from the front to the back of something. | 25 mm |
| Height The measurement of the product from head to foot or from base to top. | 120 mm |
| SKU | 324359 |
| MPN | NF-S12A-PWM |
| Brand | Noctua |
| Product Condition | Brand New/Unused |
| Fan Size (mm) | 120mm |
| Stock Availability | Available for Shipping, In Stock at Warehouse |
| Warranty Period | 6 Years Warranty |
| Warranty Contact | https://noctua.at/ |
