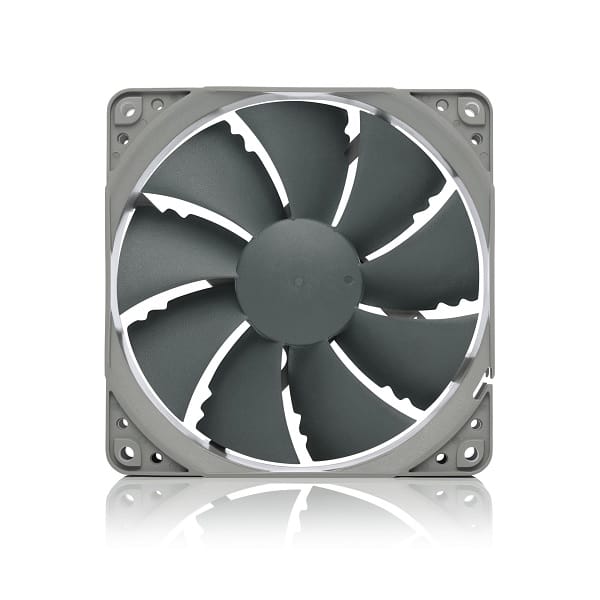

Noctua 120mm NF-P12 Redux Edition 1700RPM PWM Fan
Item No:
324296
MPN:
NF-P12-REDUX-1700P
$45.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
Manufacturer: Noctua. Specifically designed for pressure demanding applications such as CPU or radiator cooling, the classic NF-P12 is a long-standing favourite among enthusiast users around the world and helped to found Noctuas reputation as a top-tier manufacturer of premium quality quiet cooling components. The new redux edition reissues this award-winning model in a streamlined, accessibly priced package that has been reduced to the essential core: the NF-P12 premium fan. Its industry grade SSO bearing, over 150.000 hours MTTF rating and full 6 years manufacturers warranty make the NF-P12 redux a proven premium choice that provides trusted Noctua quality at an attractive price point. The performance-oriented top speed of the 1700rpm PWM version is ideal for high efficiency case, radiator and CPU cooling as well as other applications that require both extended performance headroom and PWM for automatic speed control.
Would you like to know more? Check out the full product information page.
Would you like to know more? Check out the full product information page.
| Performance | |
| Suitable location Locations in which the product can be used. | Computer case |
| Type Characteristics of the device. | Fan |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Rotational speed (min) | 450 RPM |
| Rotational speed (max) | 1700 RPM |
| Noise level (high speed) How loud the device is when used at high speed. | 25.1 dB |
| Airflow | 120.2 m³/h |
| Maximum air pressure | 2.83 mmH2O |
| Pulse-width modulation (PWM) support |
 |
| Bearing type | Self-Stabilising Oil-pressure (SSO) bearing |
| Fan noise level (max) | 25.1 dB |
| Quantity per pack | 1 pc(s) |
| Fan speed (min) | 450 RPM |
| Fan speed (max) | 1700 RPM |
| Fan's mean time to failure (MTTF) | 150000 h |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Grey |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Number of fan blades | 9 |
| Fan connector | 4-pin |
| Power | |
| Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable. | 1.08 W |
| Voltage | 12 V |
| Maximum current The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge. | 0.09 A |
| Fan voltage | 12 V |
| Fan current | 0.09 A |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 120 mm |
| Depth The distance from the front to the back of something. | 25 mm |
| Height The measurement of the product from head to foot or from base to top. | 120 mm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Fan thickness | 2.5 cm |
| Package width The distance from one side of the packaging to the other. | 170 mm |
| Package depth The distance from the front to the back of the packaging. | 32 mm |
| Package height The distance from the top to the bottom of the packaging. | 180 mm |
| Package weight Weight of the packaged product. | 242 g |
| Technical details | |
| Warranty period | 6 year(s) |
| Packaging content | |
| Package type The type of product package e.g. box. | Box |
| Screws included |
|
| Number of screws | 4 |
| SKU | 324296 |
| MPN | NF-P12-REDUX-1700P |
| Brand | Noctua |
| Assembled to Order | No |
| Shipping Latency | None |
| Display In Stock In Frontend | No |
| Product Condition | Brand New/Unused |
| Fan Size (mm) | 120mm |
| Cooling Technology | Air |
| Stock Availability | Available for Shipping, In Stock at Bankstown |
| Warranty Period | 6 Years Warranty |
| Warranty Contact | https://noctua.at/ |
