Manufacturer: Noctua. Designed in Austria, Noctuas premium cooling solutions are internationally renowned for their low noise, exceptional performance and outstanding quality. Having received more than one thousand awards and recommendations from leading hardware websites and magazines, Noctua is the most acclaimed manufacturer of premium quality quiet cooling solutions and the number one choice for silent, high performance PC builds.

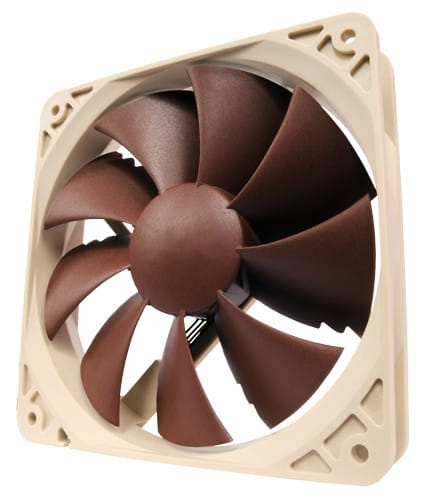

Specifically conceived for pressure demanding applications such as CPU cooling, the 120mm NF-P12 PWM fan features Noctuas novel, custom designed PWM IC for fully automatic control and ultra low power consumption. Equipped with Noctuas signature SSO bearing and topped off with a 6 years manufacturers warranty, the NF-P12 PWM is a premium choice for the highest demands.
Highlights:
* Manufacturers model code: NF-P12 PWM.
* Market orientation: Quiet PC, cooling enthusiasts & overclockers.
* RPM: 1300.
* CFM: 54.
* dBA: 19.8.
* Fan width: 120mm.
* Fan depth: 25mm.
* Bearing type: SSO (Self Stabilising Oil).
* Connector: 4Pin PWM.
* Warranty: 6 years.
Do you want to know more? Check out Noctuas product introduction page, detailed specifications, infosheet & product FAQ.
Specifically conceived for pressure demanding applications such as CPU cooling, the 120mm NF-P12 PWM fan features Noctuas novel, custom designed PWM IC for fully automatic control and ultra low power consumption. Equipped with Noctuas signature SSO bearing and topped off with a 6 years manufacturers warranty, the NF-P12 PWM is a premium choice for the highest demands.
Highlights:
* Manufacturers model code: NF-P12 PWM.
* Market orientation: Quiet PC, cooling enthusiasts & overclockers.
* RPM: 1300.
* CFM: 54.
* dBA: 19.8.
* Fan width: 120mm.
* Fan depth: 25mm.
* Bearing type: SSO (Self Stabilising Oil).
* Connector: 4Pin PWM.
* Warranty: 6 years.
Do you want to know more? Check out Noctuas product introduction page, detailed specifications, infosheet & product FAQ.
| Performance | |
| Suitable for Who can use the product, or what the product can be used for. | Computer case |
| Type Characteristics of the device. | Fan |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. | Not supported |
| Compatible processor series A processor which is compatible with this device, belongs to a 'series' which is part of 'family' e.g Celeron D, Celeron G, Celeron M, or, in some cases, is the same as 'family'. | Not supported |
| Rotational speed (min) | 300 RPM |
| Rotational speed (max) | 1300 RPM |
| Noise level (low speed) | 12.6 dB |
| Noise level (high speed) How loud the device is when used at high speed. | 19.8 dB |
| Airflow | 92.3 m³/h |
| Minimum air pressure | 1.21 mmH2O |
| Maximum air pressure | 1.68 mmH2O |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 150000 h |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Brown |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Plastic |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 0.6 W |
| Voltage | 12 V |
| Maximum current The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge. | 0.05 A |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 12 mm |
| Depth The distance from the front to the back of something. | 25 mm |
| Height The measurement of the product from head to foot or from base to top. | 120 mm |
| Other features | |
| Connector(s) | 4-pin |
| SKU | 324289 |
| MPN | NF-P12-PWM |
| Brand | Noctua |
| Product Condition | Brand New/Unused |
| Fan Size (mm) | 120mm |
| Stock Availability | Available for Shipping |
| Warranty Period | 6 Years Warranty |
| Warranty Contact | https://noctua.at/ |
