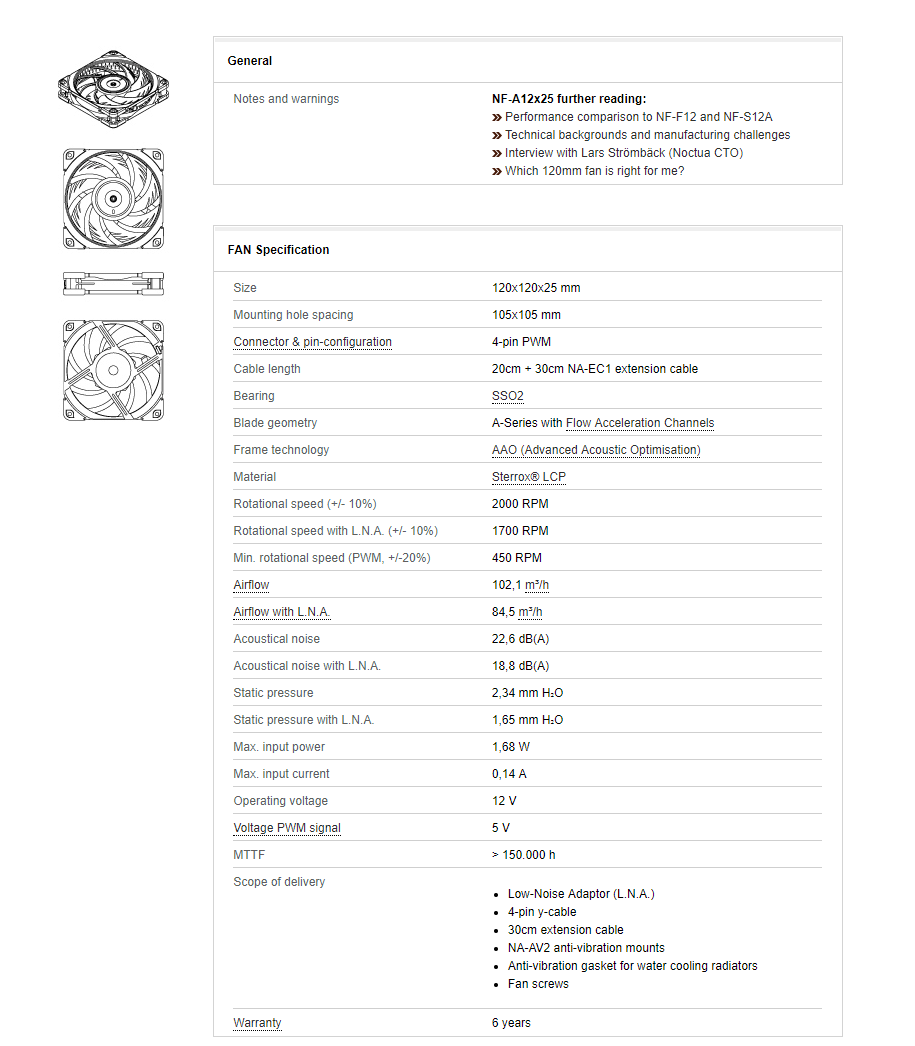

| Performance | |
| Suitable for Who can use the product, or what the product can be used for. | Computer case |

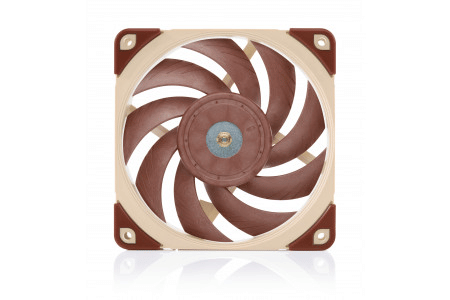

| Type Characteristics of the device. | Fan |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. | Not supported |
| Compatible processor series A processor which is compatible with this device, belongs to a 'series' which is part of 'family' e.g Celeron D, Celeron G, Celeron M, or, in some cases, is the same as 'family'. | Not supported |
| Rotational speed (min) | 450 RPM |
| Rotational speed (max) | 2000 RPM |
| Rotational speed with LNA (max) | 1700 RPM |
| Noise level (high speed) How loud the device is when used at high speed. | 22.6 dB |
| Noise level with LNA (max) | 18.8 dB |
| Airflow | 102.1 m³/h |
| Airflow with LNA (max) | 84.5 m³/h |
| Maximum air pressure | 2.34 mmH2O |
| Pulse-width modulation (PWM) support |
 |
| Bearing type | Self-Stabilising Oil-pressure Bearing (SSO) |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Beige, Red |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Liquid Crystal Polymer (LCP) |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Fan connector | 4-pin |
| Power | |
| Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable. | 1.68 W |
| Voltage | 12 V |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 120 mm |
| Depth The distance from the front to the back of something. | 25 mm |
| Height The measurement of the product from head to foot or from base to top. | 120 mm |
| Package width The distance from one side of the packaging to the other. | 150 mm |
| Package depth The distance from the front to the back of the packaging. | 34 mm |
| Package height The distance from the top to the bottom of the packaging. | 210 mm |
| Package weight Weight of the packaged product. | 355 g |
| Packaging content | |
| Cables included | Fan |
| Screws included |
|
| Low-noise adaptor (LNA) |
|
| Other features | |
| Mean time to failure (MTTF) | 150000 h |
| Logistics data | |
| Master (outer) case width | 38 cm |
| Master (outer) case length | 38 cm |
| Master (outer) case height | 37.5 cm |
| Master (outer) case weight | 14.4 kg |
| Quantity per master (outer) case | 36 pc(s) |
| SKU | 323995 |
| MPN | NF-A12x25-PWM |
| Brand | Noctua |
| Product Condition | Brand New/Unused |
| Fan Size (mm) | 120mm |
| Stock Availability | Available for Shipping |
| Warranty Period | 6 Years Warranty |
| Warranty Contact | https://noctua.at/ |
