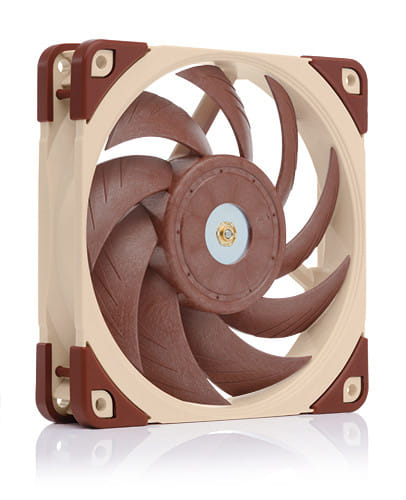

Noctua 120mm NF-A12x25 FLX 2000RPM Fan
Item No:
323988
MPN:
NF-A12x25-FLX
$69.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
Manufacturer: Noctua. The NF-A12x25 is a highly optimised next-generation 120mm fan that integrates Noctuas latest innovations in aerodynamic engineering in order to achieve an unprecedented level of quiet cooling performance. It takes state-of-the-art technologies such as the AAO (Advanced Acoustic Optimisation) frame or Flow Acceleration Channels and combines them with a record tight tip clearance of only 0.5mm, which is made possible by using the novel Sterrox liquid-crystal polymer (LCP) compound as well as a metal-reinforced motor hub and axis for ultimate precision. Following the approach of Noctuas A-series, the NF-A12x25 is a true all-rounder that yields superb results in all types of usage, regardless of whether its in low-impedance, airflow-oriented applications such as case cooling, or high-impedance, pressure-demanding scenarios such as on heatsinks and watercooling radiators. The 3-pin FLX version provides 2000/1700/1350rpm speed settings via the supplied Low-Noise Adaptors so as to give full flexibility in configuring the fan for maximum cooling capacity or near-silent acoustics. Topped off with exceptional running smoothness, Noctuas reference-class SSO2 bearing, a rich bundle of accessories and 6-year manufacturers warranty, the NF-A12x25 is a premium-quality product through and through. Its superior efficiency, cutting-edge construction and pioneering materials make it an elite choice for the most discerning demands.
Would you like to know more? Check out the full product information page.
Would you like to know more? Check out the full product information page.
| Performance | |
| Suitable for Who can use the product, or what the product can be used for. | Computer case |
| Type Characteristics of the device. | Fan |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. | Not supported |
| Compatible processor series A processor which is compatible with this device, belongs to a 'series' which is part of 'family' e.g Celeron D, Celeron G, Celeron M, or, in some cases, is the same as 'family'. | Not supported |
| Number of speeds The different speeds that the device can operate at. | 3 |
| Rotational speed (max) | 2000 RPM |
| Rotational speed with LNA (max) | 1700 RPM |
| Rotational speed with ULNA (max) | 1350 RPM |
| Noise level (high speed) How loud the device is when used at high speed. | 22.6 dB |
| Noise level with LNA (max) | 18.8 dB |
| Noise level with ULNA (max) | 14.2 dB |
| Airflow | 102.1 m³/h |
| Airflow with LNA (max) | 84.5 m³/h |
| Airflow with ULNA (max) | 64.5 m³/h |
| Maximum air pressure | 2.34 mmH2O |
| Maximum air pressure with LNA | 1.65 mmH2O |
| Maximum air pressure with ULNA | 1.05 mmH2O |
| Bearing type | Self-Stabilising Oil-pressure Bearing (SSO) |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Beige, Red |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Liquid Crystal Polymer (LCP) |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Power | |
| Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable. | 1.68 W |
| Voltage | 12 V |
| Maximum current The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge. | 0.14 A |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 120 mm |
| Depth The distance from the front to the back of something. | 25 mm |
| Height The measurement of the product from head to foot or from base to top. | 120 mm |
| Package width The distance from one side of the packaging to the other. | 150 mm |
| Package depth The distance from the front to the back of the packaging. | 34 mm |
| Package height The distance from the top to the bottom of the packaging. | 210 mm |
| Package weight Weight of the packaged product. | 355 g |
| Packaging content | |
| Cables included | Fan |
| Screws included |
 |
| Low-noise adaptor (LNA) |
|
| Other features | |
| Mean time to failure (MTTF) | 150000 h |
| Logistics data | |
| Master (outer) case width | 38 cm |
| Master (outer) case length | 38 cm |
| Master (outer) case height | 37.5 cm |
| Master (outer) case weight | 14.4 kg |
| Quantity per master (outer) case | 36 pc(s) |
| SKU | 323988 |
| MPN | NF-A12x25-FLX |
| Brand | Noctua |
| Assembled to Order | No |
| Shipping Latency | None |
| Display In Stock In Frontend | No |
| Product Condition | Brand New/Unused |
| Fan Size (mm) | 120mm |
| Stock Availability | Available for Shipping, In Stock at Bankstown |
| Warranty Period | 6 Years Warranty |
| Warranty Contact | https://noctua.at/ |
