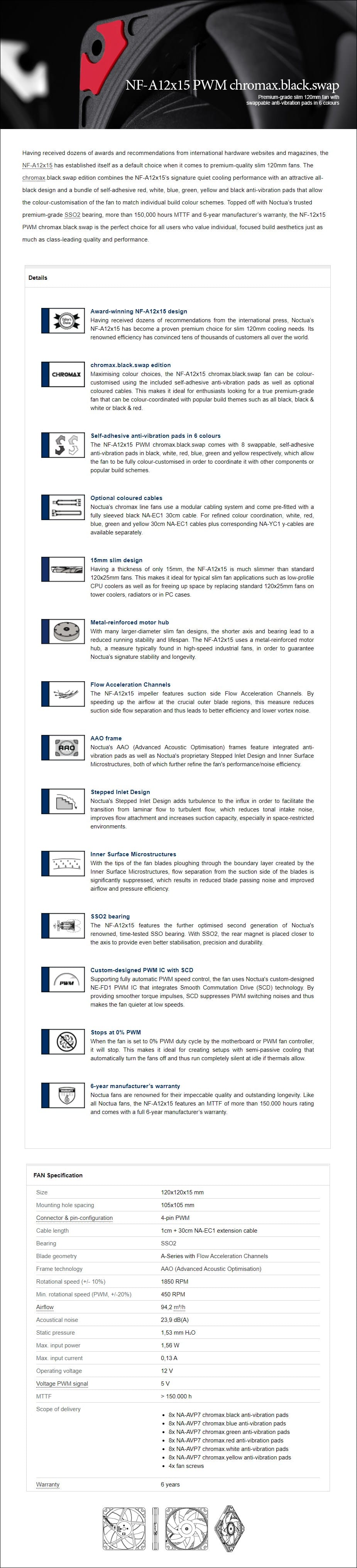

Dimensions: 120x120x15 mm - Connection: 4-Pin PWM - Cable Length: 1cm + 30cm NA-EC1 Extension Cable - SSO2 Bearing - Fan Speed: 1850 RPM (450 RPM Min) - Acoustical Noise: 23.9 dB(A) - Static Pressure: 1.53 mmH20 - Operating Voltage: 12V - MTTF: >150,000 Hours
| Performance | |
| Suitable location Locations in which the product can be used. | Computer case |
| Type Characteristics of the device. | Fan |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Number of speeds The different speeds that the device can operate at. | 2 |
| Rotational speed (min) | 450 RPM |
| Rotational speed (max) | 1850 RPM |
| Noise level (high speed) How loud the device is when used at high speed. | 23.9 dB |
| Airflow | 94.2 m³/h |
| Maximum air pressure | 1.53 mmH2O |
| Pulse-width modulation (PWM) support |
 |
| Bearing type | Self-Stabilising Oil-pressure Bearing (SSO) |
| Fan noise level (max) | 23.9 dB |
| Quantity per pack | 1 pc(s) |
| Fan speed (min) | 450 RPM |
| Fan speed (max) | 1850 RPM |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 150000 h |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Plastic |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Number of fan blades | 7 |
| Fan connector | 4-pin |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 1.56 W |
| Rated voltage | 12 V |
| Rated current | 0.13 A |
| Fan voltage | 12 V |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 120 mm |
| Depth The distance from the front to the back of something. | 120 mm |
| Height The measurement of the product from head to foot or from base to top. | 15 mm |
| Fan dimensions (W x D x H) | 120 x 120 x 15 mm |
| Packaging content | |
| Package type The type of product package e.g. box. | Box |
| Screws included |
|
| Number of screws | 4 |
| SKU | 392938 |
| MPN | NF-A12x15-PWM-CH-BK-S |
| Brand | Noctua |
| Product Condition | Brand New/Unused |
| Fan Size (mm) | 120mm |
| Cooling Technology | Air |
| Stock Availability | Available for Shipping, In Stock at Bankstown, In Stock at Castle Hill, In Stock at Warehouse |
| Warranty Period | 6 Years Warranty |
| Warranty Contact | https://noctua.at/ |
