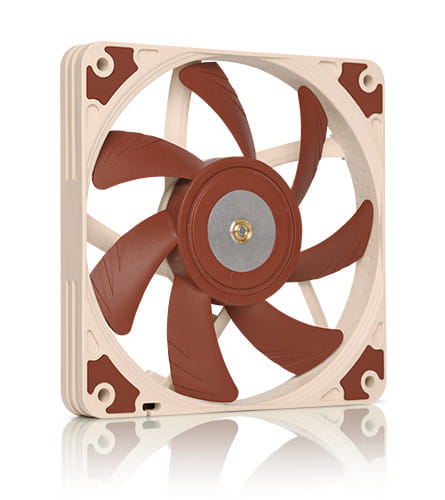

Manufacturer: Noctua. Featuring advanced aerodynamic design measures such as Flow Acceleration Channels and Noctuas AAO frame, the NF-A12x15 is a highly optimised, premium quality quiet fan in size 120x15mm. Its 15mm slim design makes the NF-A12x15 ideal for space-restricted applications such as low-profile CPU coolers or HTPC cases. The FLX version provides 1850/1400/950rpm speed settings via the supplied Low-Noise Adaptors in order to allow full flexibility in fine-tuning the fan for maximum ventilation performance or near-silent operation. Its superb running smoothness, reference-class SSO2 bearing and Noctuas trusted premium quality make it an elite choice for the highest demands.
Highlights:
* Frame technology: Advanced Acoustic Optimisation (AAO).
* RPM: 1850.
* CFM: 55.4.
* dBA: 23.9.
* Fan width: 120mm.
* Fan depth: 15mm.
* Bearing type: SSO2.
* Connector: 3Pin.
* Warranty: 6 years.
Do you want to know more? Check out Noctuas product introduction page & infosheet.
Highlights:
* Frame technology: Advanced Acoustic Optimisation (AAO).
* RPM: 1850.
* CFM: 55.4.
* dBA: 23.9.
* Fan width: 120mm.
* Fan depth: 15mm.
* Bearing type: SSO2.
* Connector: 3Pin.
* Warranty: 6 years.
Do you want to know more? Check out Noctuas product introduction page & infosheet.
| Performance | |
| Suitable for Who can use the product, or what the product can be used for. | Computer case |
| Type Characteristics of the device. | Fan |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Rotational speed (max) | 1850 RPM |
| Rotational speed with LNA (max) | 1400 RPM |
| Noise level (high speed) How loud the device is when used at high speed. | 23.9 dB |
| Noise level with LNA (max) | 16.8 dB |
| Airflow | 94.2 m³/h |
| Airflow with LNA (max) | 70.8 m³/h |
| Maximum air pressure | 1.53 mmH2O |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 150000 h |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Beige, Brown |
| Fan connector | 3-pin |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 1.56 W |
| Voltage | 12 V |
| Rated current | 0.13 A |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 120 mm |
| Depth The distance from the front to the back of something. | 15 mm |
| Height The measurement of the product from head to foot or from base to top. | 120 mm |
| Packaging content | |
| Screws included |
 |
| Low-noise adaptor (LNA) |
|
| Other features | |
| Mounting hole pattern (W x D) | 105 x 105 mm |
| SKU | 323974 |
| MPN | NF-A12x15-FLX |
| Brand | Noctua |
| Product Condition | Brand New/Unused |
| Fan Size (mm) | 120mm |
| Stock Availability | Available for Shipping |
| Warranty Period | 6 Years Warranty |
| Warranty Contact | https://noctua.at/ |
