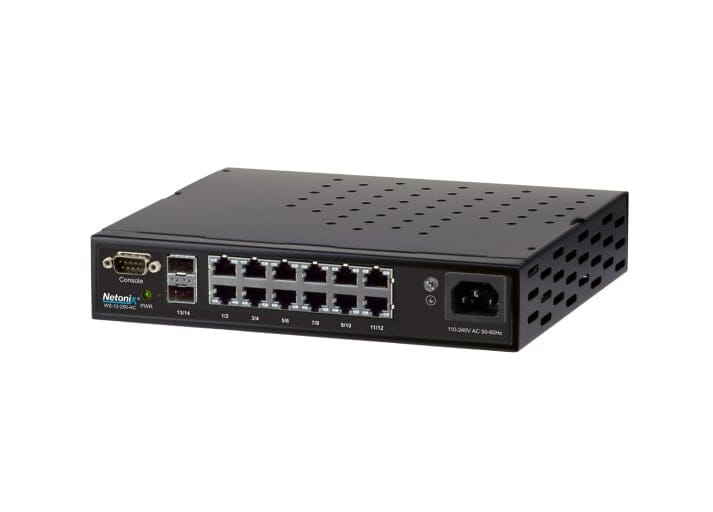

Netonix WS-12-250-AC, Managed, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting
The Netonix® WISP Switch™ model WS-12-250-AC is designed specifically for the WISP industry with a rugged chassis and extended operating temperature range. It features a simple yet powerful user interface providing the software features WISPs need in a switch.
Highest density of PASSIVE POE ports per cubic inch on the market for those small equipment boxes. The only switch line on the market that can deliver 1.5A of 24V or 48V on all 4 pairs (24VH and 48VH). The only switch line on the market that has current sensors on all passive POE ports.
Highest density of PASSIVE POE ports per cubic inch on the market for those small equipment boxes. The only switch line on the market that can deliver 1.5A of 24V or 48V on all 4 pairs (24VH and 48VH). The only switch line on the market that has current sensors on all passive POE ports.
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Managed |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 12 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity An SFP ("small form-factor pluggable transceiver") is a transmitter/receiver which interfaces a network device motherboard (e.g. in a switch, router) to a fibre optic or copper network cable. The "SFP ports quantity" is the number of ports for SFP connections in a device. | 2 |
| Power connector | Terminal block (3-pin) |
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
 |
| Stackable Devices can be placed on top of each other. |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Performance | |
| Built-in processor Whether or not a processor is built into the device. |
|
| Processor frequency The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time. | 416 MHz |
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 110 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) The maximum amount of power used by the device. | 250 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power over Ethernet (PoE) voltage range | 48 - 50 V |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -25 - 55 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 223 mm |
| Depth The distance from the front to the back of something. | 181 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2 kg |
| Certificates | |
| Certification | CE, FCC, IC |
| SKU | 836891 |
| MPN | WS-12-250-AC |
| Brand | Netonix |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | N/A |
