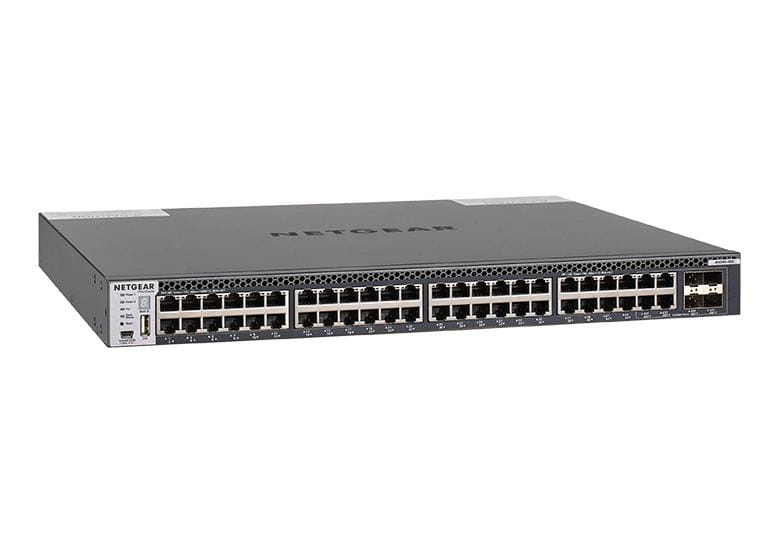

Netgear XSM4348CS M4300-48X 48-Port Stackable Layer 3 Fully Managed Switch
Item No:
387310
MPN:
XSM4348CS-100AJS
$15,667.50
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
NETGEAR ProSAFE M4300-48X Stackable L3 Managed Switch - 48-port 10GBASE-T, 4-port shared 10GBASE-X SFP+, 960Gbps fabric and hot swap power s
NETGEAR ProSAFE M4300-48X Stackable L3 Managed Switch comes with 48-port 10GBASE-T, 4-port shared 10GBASE-X SFP+ and hot swap power supplies.
All 48 ports are 1G backward compatible for progressive transition to 10G speeds. M4300-48X is line-rate with 960Gbps fabric for spine and leaf stacking architectures. M4300 Switch Series delivers rich L2/L3/L4 and IPv4/IPv6 services for mid-enterprise edge and SMB core with unrivalled ease of use: 10 Gigabit models can seamlessly stack with 1 Gigabit models within the series. Non-stop forwarding (NSF) virtual chassis architectures provide advanced High Availability (HA) with hitless failover, that is, distributed link aggregation allows for load balancing and virtually zero downtime.
M4300 is ideal for server aggregation with Auto-iSCSI prioritization: two M4300 switches ensure redundant Top of Rack installations with multi-vendor MAC, IP and TCP/UDP LACP hashing. Layer 3 feature set includes static and policy-based routing, RIP, VRRP, OSPF, and PIM dynamic routing as standard. The NETGEAR M4300 Switch Series is also ready for the future, enabling Software-defined Network (SDN) and OpenFlow 1.3 for your network.
| Name | Value |
|---|---|
| Category | Switch |
| Data Transfer Rate | 48-port 10GBASE-T and 4-port shared 10GBASE-X SFP+, 960Gbps fabric and SDN-ready OpenFlow 1.3 in a 1U form factor |
| Device Type | L3 Managed Switch |
| Dimensions (H x W x D) | 4.4 x 44 x 34.5 cm |
| Hardware Requirement | N/A |
| License Pricing | N/A |
| License Quantity | N/A |
| Manufacturer's Part Number | XSM4348CS |
| Platform Supported | N/A |
| Ports | 48-port 10GBASE-T |
| Power supply | Ships with one modular APS250W PSU in first power supply slot plus one spare slot |
| Product | Stackable L3 Managed Switch |
| Speed | All 10G Copper |
| Switching Fabric | 960Gbps non-blocking fabric across 48 ports |
| System Requirement | N/A |
| Warranty | Limited Lifetime ProSAFE Hardware Warranty |
| Weight | 6.6Kg |
| Wireless | N/A |
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Managed |
| Switch layer A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things). | L3 |
| Quality of Service (QoS) support |
 |
| ARP inspection |
|
| System event log |
|
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 48 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | 10G Ethernet (100/1000/10000) |
| SFP+ module slots quantity | 4 |
| Console port | RJ-45 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 2 |
| Power connector | DC-in jack |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1AX, IEEE 802.3ad, IEEE 802.3aq, IEEE 802.3az |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
|
| Link aggregation |
|
| Spanning tree protocol |
|
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Virtual LAN features | Private VLAN |
| Number of VLANs | 4000 |
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 960 Gbit/s |
| Throughput | 714 Mpps |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 128000 entries |
| Packet buffer memory | 56 MB |
| Security | |
| DHCP features | DHCP server |
| Multicast features | |
| Multicast support |
|
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Stackable Devices can be placed on top of each other. |
|
| Form factor The shape or design of the product. | 1U |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Reset button |
|
| LED indicators |
|
| Performance | |
| Built-in processor Whether or not a processor is built into the device. |
|
| Processor frequency The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time. | 800 MHz |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 1024 MB |
| Flash memory | 256 MB |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 40.3 dB |
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | AC |
| Power supply included There is a power supply with this product. |
|
| Number of power supply units | 1 |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 110 - 220 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
 |
| SKU | 387310 |
| MPN | XSM4348CS-100AJS |
| Brand | Netgear |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.netgear.com/ |
