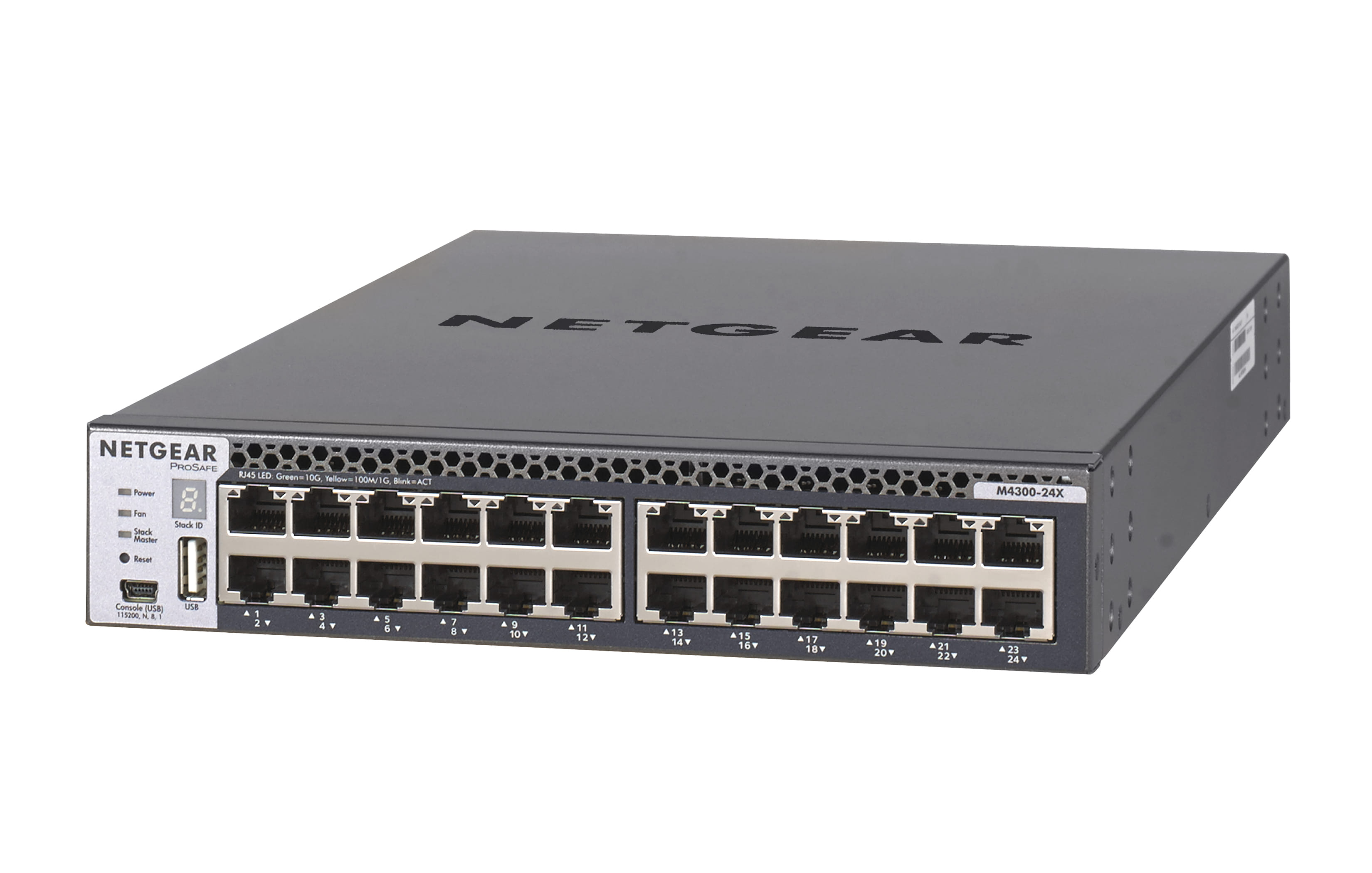

Netgear xSM4324CS M4300-24x 24-Port 10GBASE-T, 4-Port shared 10GBASE-X SFP+ and 480Gbps Stackable Layer 3 Managed Switch
Item No:
387296
MPN:
XSM4324CS-100AJS
$7,275.89
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
Netgear M4300-24x, Managed, L3, 10G Ethernet (100/1000/10000), Rack mounting
NETGEAR ProSAFE M4300-24x Stackable L3 Managed Switch comes with 24-port 10GBASE-T, 4-port shared 10GBASE-x SFP+ and 480Gbps fabric in a half-width form factor. All 24 ports are 1G backward compatible for progressive transition to 10G speeds. M4300-24x is line-rate with 480Gbps fabric for spine and leaf stacking architectures. M4300 Switch Series delivers L2/L3/L4 and IPv4/IPv6 rich services for mid-enterprise edge and SMB core with unrivalled ease of use: 10 Gigabit models can seamlessly stack with 1 Gigabit models within the series. Non-stop forwarding (NSF) virtual chassis architectures provide advanced High Availability (HA) with hitless failover, that is, distributed link aggregation allows for load balancing and virtually zero downtime. M4300 is ideal for server aggregation with Auto-iSCSI prioritization: two half-width M4300 switches can be installed in a single rack space for redundant Top of Rack installations. Layer 3 feature set includes static and policy-based routing, RIP, VRRP, OSPF, and PIM dynamic routing " as standard. The NETGEAR M4300 Switch Series is also ready for the future, with Software-defined Network (SDN) and OpenFlow 1.3 enabled for your network.
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Managed |
| Switch layer A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things). | L3 |
| Quality of Service (QoS) support |
 |
| ARP inspection |
|
| System event log |
|
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 24 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | 10G Ethernet (100/1000/10000) |
| SFP+ module slots quantity | 4 |
| Console port | RJ-45 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 2 |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1AX,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3an,IEEE 802.3aq,IEEE 802.3u,IEEE 802.3z |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
|
| Port mirroring |
|
| Flow control support |
|
| Link aggregation |
|
| Broadcast storm control |
|
| Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link. |
|
| Spanning tree protocol |
|
| Auto-negotiation |
|
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Virtual LAN features | Private VLAN,Voice VLAN,Tagged VLAN |
| Number of VLANs | 4000 |
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 480 Gbit/s |
| Forwarding rate | 357 Mpps |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 16000 entries |
| Store-and-forward |
|
| Latency (1 Gbps) | 1.827 µs |
| Latency (10 Gbps) | 2.728 µs |
| Jumbo frames support |
|
| Jumbo frames | 9216 |
| Packet buffer memory | 32 MB |
| Security | |
| DHCP features | DHCP server,DHCP relay,DHCP client |
| Multicast features | |
| Multicast support |
|
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Stackable Devices can be placed on top of each other. |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Metal |
| Reset button |
|
| Certification | VCCI Class A |
| Performance | |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 1024 MB |
| Flash memory | 256 MB |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 37 dB |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 247437 h |
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) The maximum amount of power used by the device. | 125 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 212 mm |
| Depth The distance from the front to the back of something. | 345 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 4.14 kg |
| SKU | 387296 |
| MPN | XSM4324CS-100AJS |
| Brand | Netgear |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
