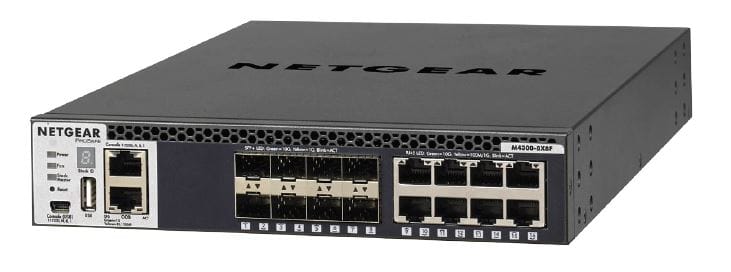

Netgear XSM4316S M4300-8X8F 16-Port Fully Managed Stackable Layer 3 Switch

Management features
Switch type What switch device has, managed or unmanaged.	Managed
Switch layer A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things).	L3
Quality of Service (QoS) support
Web-based management Using a website/web application to manage something.
ARP inspection

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets).	8
Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets).	10G Ethernet (100/1000/10000)
SFP+ module slots quantity	8
Fiber optic connector This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced.	SFP+
Console port	RJ-45/Mini-USB
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.	1

Network
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.3ad, IEEE 802.3az
10G support The product can use Oracle 10G, which is a database management system introduced in 2003.
Cable types supported	Cat5, Cat5e, Cat6, Cat7
Port mirroring
IP routing
Flow control support
Link aggregation
Rate limiting
Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
Spanning tree protocol
Auto-sensing
Auto-negotiation
VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.
Virtual LAN features	Private VLAN

Optical fiber
Fiber ethernet cabling technology	10GBASE-LR, 10GBASE-LRM, 10GBASE-SR

Data transmission
Switching capacity The data transfer capacity of the switch per second.	320 Gbit/s
Throughput	357 Gbit/s
MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.	16000 entries
Store-and-forward
Number of static routes	64
Jumbo frames support
Jumbo frames	9000

Security
DHCP features	DHCP client, DHCP server
Access Control List (ACL)
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	HTTPS, SNMP, SSH
SSH/SSL support
BPDU filtering/protection

Multicast features
Multicast support
Number of multicast groups filtered	4000

Design
Rack mounting The type of mounting that can position devices in a shelving system (rack).
Stackable Devices can be placed on top of each other.
Form factor The shape or design of the product.	1U
Product colour The colour e.g. red, blue, green, black, white.	Black
LED indicators	Activity, Power, Speed
Certification	CE, FCC 15 A, VCCI A, A EN 55022, (CISPR 22) A, EN 50082-1, EN 55024

Performance
Built-in processor Whether or not a processor is built into the device.
Processor frequency The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time.	800 MHz
Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.	1024 MB
Flash memory	256 MB
Noise level The amplitude level of the undesired background noise, usually measured in decibels (db).	36.9 dB
Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.	196120 h

Power
Power source What is providing power for the product e.g. mains electricity.	AC
Power supply included There is a power supply with this product.
Number of power supply units	1
Power consumption (max) The maximum amount of power used by the device.	49 W

Power over Ethernet (PoE)
Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 50 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-20 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 3000 m
Heat dissipation The heat generated by the power supply.	18577 BTU/h

Weight & dimensions
Width The measurement or extent of something from side to side.	212 mm
Depth The distance from the front to the back of something.	345 mm
Height The measurement of the product from head to foot or from base to top.	44 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	3.32 kg

Packaging data
Cables included	AC, LAN (RJ-45), Mini-USB
User guide
Rack mount kit
