Netgear XSM4316PB M4300-16X 16-Port PoE+ Stackable Switch With 8x10GBASE-T/MultiGig (half width)/600W Power Supply Unit
Item No:
550788
MPN:
XSM4316PB-100AJS
$6,299.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
M4300-16X 16-port PoE+ Stackable Layer 3 Fully Managed Switch with 8 x 10GBASE-T/MultiGig (half width) & 600W PSU, ProSAFE Lifetime Warranty
Stackable 10 Gigabit 16-port Copper Managed Switch with PoE+
The M4300 is the world's first versatile stackable solution designed for server access, SMB core and Professional AV-over-IP deployments. M4300 series scales from 24x1G to 96x10G, and up to 8 switches per stack. Nonstop forwarding, spine and leaf, edge to core connectivity for AV and IT convergent networks.
M4300-16X:
- The M4300-16X half-width switch provides 16-port 10GBASE-T with PoE+ capability
- All (16) 10G ports are 100M/1G/2.5G/5G backward compatible for progressive transition to 10G speeds
- The XSM4316PB version comes with APS600W PSU for PoE applications (500W PoE budget " full provisioning)
- With 320Gbps non-blocking fabric, M4300-16X delivers L2/L3/L4 and IPv4/IPv6 rich services for server / storage interconnect, SMB core applications and Professional AV-over-IP installations (SDVoE-ready certified)
- Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover for highest availability (HA)
- Two half-width M4300 10GbE models can be paired in a single rack space for redundant top-of-rack and active-active server installations
- 10 Gigabit models seamlessly stack with 1 Gigabit models enabling line-rate spine and leaf topologies
- Layer 3 feature set includes static, policy-based and dynamic routing with RIP, VRRP, OSPF and PIM
- Enhanced IGMP+ implementation for plug & play multicast at Layer 2 between M4300 switches
| Name | Value |
|---|---|
| Category | Intelligent Edge Managed Switch |
| Device Type | Stackable Managed Switch |
| Dimenions (D x W x H) | 34.5 x 21.2 x 4.4 cm |
| Hardware Requirement | N/A |
| License Pricing | N/A |
| License Quantity | N/A |
| Manufacturer's Part Number | XSM4316PB-100AJS |
| Platform Supported | N/A |
| Ports | 16-port 100M/1G/2.5G/5G/10GBASE-T with PoE+ (copper RJ45) |

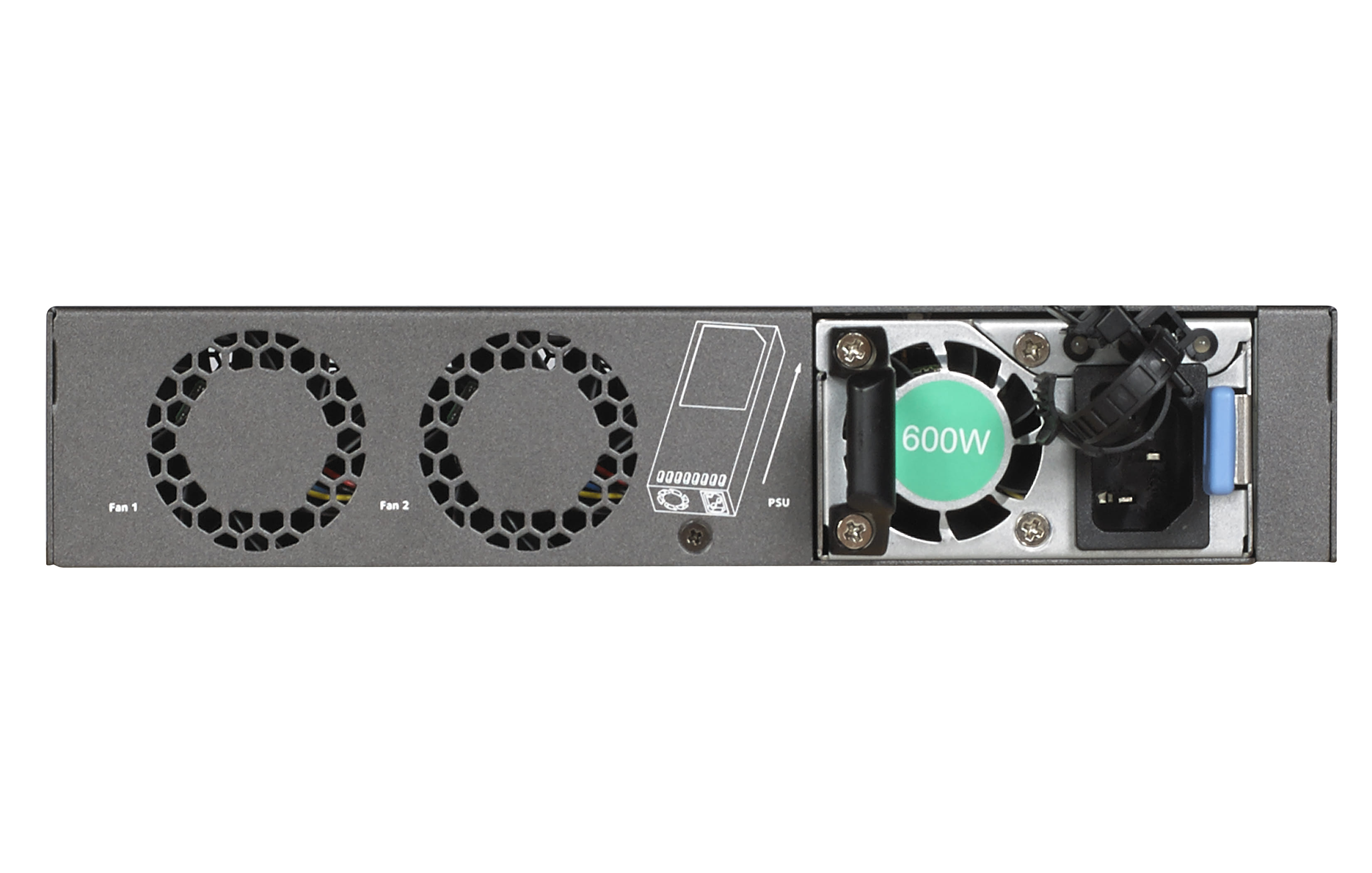

| Power Supply | Ships with one modular APS600W PSU in its power supply slot |
| Product | Managed Switch |
| Speed | 320Gbps non-blocking fabric across 16 ports |
| System Requirement | |
| Warranty | Limited Lifetime |
| Weight | 3.22Kg |
| Wireless | No |
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Managed |
| Switch layer A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things). | L3 |
| Quality of Service (QoS) support |
 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 16 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | 10G Ethernet (100/1000/10000) |
| Console port | RJ-45/Mini-USB |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
|
| Port mirroring |
|
| IP routing |
|
| Link aggregation |
|
| Auto-sensing |
|
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Virtual LAN features | Private VLAN, Tagged VLAN, Voice VLAN |
| Number of VLANs | 4093 |
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 320 Gbit/s |
| Throughput | 238 Mpps |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 16000 entries |
| Store-and-forward |
|
| Number of queues | 8 |
| Number of static routes | 64 |
| Jumbo frames support |
|
| Jumbo frames | 9000 |
| Security | |
| DHCP features | DHCP client, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping |
| Access Control List (ACL) |
|
| IGMP snooping |
|
| BPDU filtering/protection |
|
| Authentication | Guest VLAN, MAC-based authentication |
| Multicast features | |
| Multicast support |
|
| Number of multicast groups filtered | 4000 |
| Protocols | |
| GARP VLAN Registration Protocol (GVRP) |
|
| Routing protocols | OSPF, OSPFv3, RIP, RIP-1, RIP-2 |
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Stackable Devices can be placed on top of each other. |
|
| Form factor The shape or design of the product. | 1U |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Airflow direction | Front-to-back airflow |
| Performance | |
| Physical stacking (units) | 8 |
| Built-in processor Whether or not a processor is built into the device. |
|
| Processor frequency The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time. | 800 MHz |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 1024 MB |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 35 dB |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 690301 h |
| Power | |
| Power supply included There is a power supply with this product. |
|
| Number of power supply units | 1 |
| Power consumption (max) The maximum amount of power used by the device. | 610 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 500 W |
| Operational conditions | |
| Heat dissipation The heat generated by the power supply. | 2081.64 BTU/h |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 212 mm |
| Depth The distance from the front to the back of something. | 345 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 3.22 kg |
| Packaging data | |
| Rack mount kit |
|
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| SKU | 550788 |
| MPN | XSM4316PB-100AJS |
| Brand | Netgear |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.netgear.com/ |
