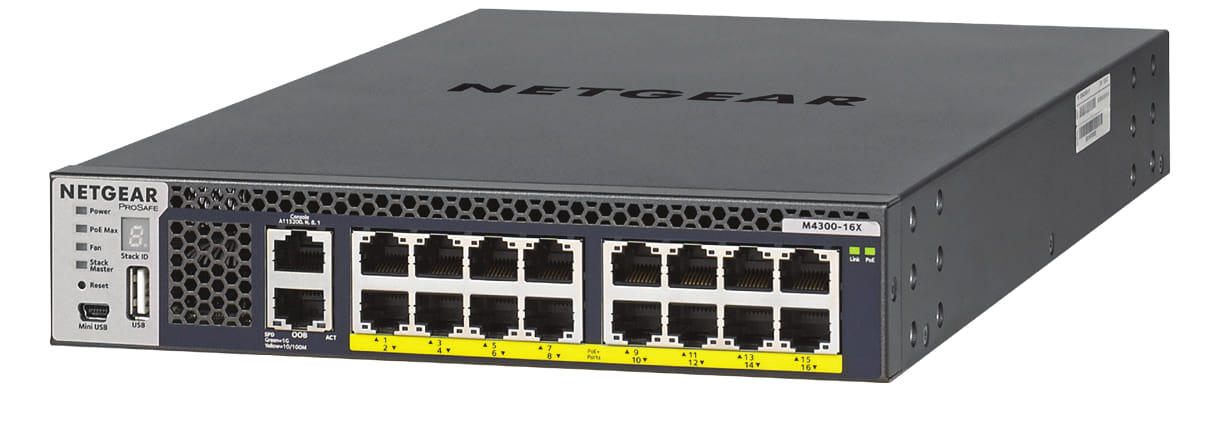

Netgear XSM4316PA M4300-16X 16-Port PoE+ Stackable Switch With 8x10GBASE-T/MultiGig (half width)/299W Power Supply Unit

Management features
Switch type What switch device has, managed or unmanaged.	Managed
Switch layer A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things).	L3
Quality of Service (QoS) support

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets).	16
Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets).	10G Ethernet (100/1000/10000)
Console port	RJ-45/Mini-USB
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.	1

Network
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u
10G support The product can use Oracle 10G, which is a database management system introduced in 2003.
Port mirroring
IP routing
Link aggregation
Auto-sensing
VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.
Virtual LAN features	Private VLAN, Tagged VLAN, Voice VLAN
Number of VLANs	4093

Data transmission
Switching capacity The data transfer capacity of the switch per second.	320 Gbit/s
Throughput	238 Mpps
MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.	16000 entries
Store-and-forward
Number of queues	8
Number of static routes	64
Jumbo frames support
Jumbo frames	9000

Security
DHCP features	DHCP client, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping
Access Control List (ACL)
IGMP snooping
BPDU filtering/protection
Authentication	Guest VLAN, MAC-based authentication

Multicast features
Multicast support
Number of multicast groups filtered	4000

Protocols
GARP VLAN Registration Protocol (GVRP)
Routing protocols	OSPF, OSPFv3, RIP, RIP-1, RIP-2

Design
Rack mounting The type of mounting that can position devices in a shelving system (rack).
Stackable Devices can be placed on top of each other.
Form factor The shape or design of the product.	1U
Product colour The colour e.g. red, blue, green, black, white.	Black
Airflow direction	Front-to-back airflow

Performance
Physical stacking (units)	8
Built-in processor Whether or not a processor is built into the device.
Processor frequency The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time.	800 MHz
Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.	1024 MB
Noise level The amplitude level of the undesired background noise, usually measured in decibels (db).	36 dB
Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.	690301 h

Power
Power supply included There is a power supply with this product.
Number of power supply units	1
Power consumption (max) The maximum amount of power used by the device.	49 W

Power over Ethernet (PoE)
Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Power over Ethernet plus (PoE+) ports quantity	16
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	199 W

Operational conditions
Heat dissipation The heat generated by the power supply.	186 BTU/h

Weight & dimensions
Width The measurement or extent of something from side to side.	212 mm
Depth The distance from the front to the back of something.	345 mm
Height The measurement of the product from head to foot or from base to top.	44 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	3.22 kg

Packaging data
Rack mount kit

Logistics data
Harmonized System (HS) code	85176990
