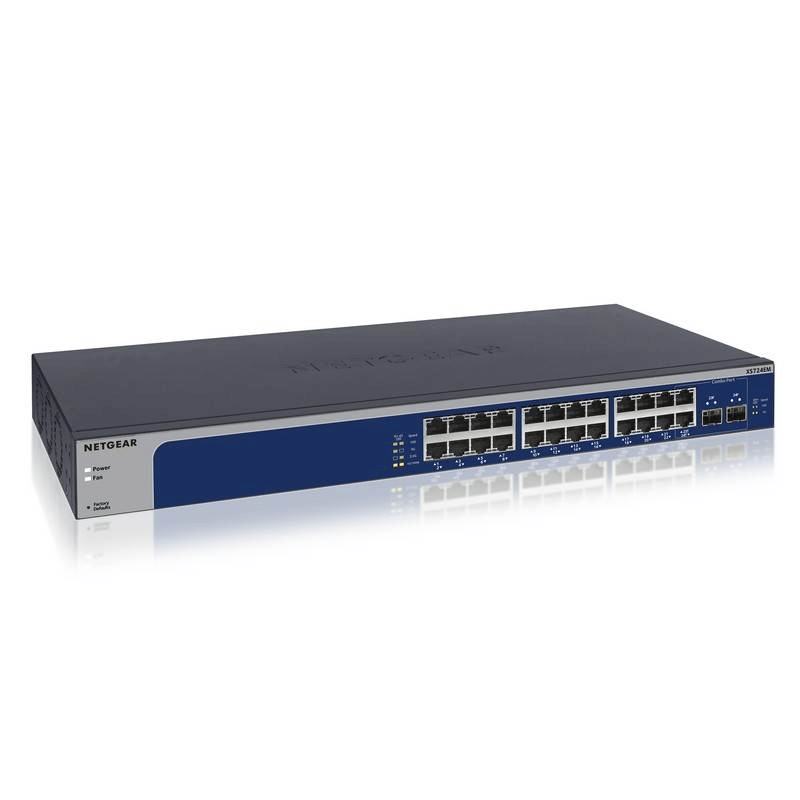

Netgear XS724EM 24 Port 10 Gigabit Smart Managed Plus Switch - 10-Gigabit/Multi-Gigabit: 100M/1G/2.5G/5G/10G - 10GBASE-X SFP+ ports - Rack-mount or Desktop - 240 Gbps line-rate - XS724EM-100AJS - Limited Product Lifetime Warranty
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 24 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | 10G Ethernet (100/1000/10000) |
| Combo SFP ports quantity | 2 |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1Q,IEEE 802.1p,IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3ah,IEEE 802.3aq,IEEE 802.3bz,IEEE 802.3u,IEEE 802.3z |
| Port mirroring |
 |
| Flow control support |
|
| Link aggregation |
|
| Broadcast storm control |
|
| Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link. |
|
| Auto-negotiation |
|
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Virtual LAN features | Tagged VLAN |
| Number of VLANs | 64 |
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 480 Gbit/s |
| Forwarding rate | 420 Mpps |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 32000 entries |
| Store-and-forward |
|
| Latency (10 Gbps) | 4.16 µs |
| Jumbo frames support |
|
| Jumbo frames | 9000 |
| Packet buffer memory | 3 MB |
| Security | |
| DHCP features | DHCP client |
| IGMP snooping |
|
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black,Blue |
| Housing material What the casing of the product is made of. | Metal |
| Certification | VCCI Class A |
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 120 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) The maximum amount of power used by the device. | 150.52 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 70 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 440 mm |
| Depth The distance from the front to the back of something. | 204 mm |
| Height The measurement of the product from head to foot or from base to top. | 43 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 3.72 kg |
| SKU | 329973 |
| MPN | XS724EM-100AJS |
| Brand | Netgear |
| Product Condition | Brand New/Unused |
