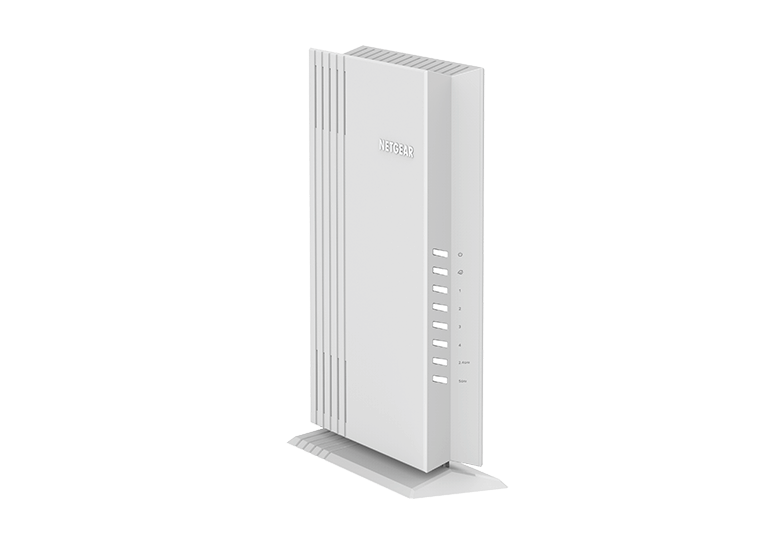

NETGEAR WiFi 6 AX3200 Dual Band Wireless Access Point - Desktop (WAX206)
Essentials WiFi 6 (WAX206)
Essentials WiFi 6 AX3200 Dual Band Access Point
The essential WiFi 6 solution for working from home, small businesses, or college students. Create your own secure, fast, wireless network quickly without any app or subscription required.
Latest Business WiFi
Upgrade to WIFi 6 with speeds of up to 3.2 Gbps for faster streaming, downloading, video conferencing, and more.
Budget Friendly Solution
The perfect WiFi 6 solution for your home office, home-based business or dorm room.
Connect More Wired Devices
4 Ethernet ports for wired connections to a printer, laptop, and others leaving more WiFi bandwidth for wireless devices.
Faster Ethernet Connection
Take full advantage of your high-speed internet connection with the 2.5Gb Ethernet port.
3 Wireless Networks (SSIDS)
Separate and secure networks for home and office devices or provide a separate network just for guests.
Secure Authentication
Use the latest WPA3 user authentication method to ensure safe connections to your network.
Network Isolation
Create a separate network just for work and isolate home from business traffic.
Easy DIY Set Up
Easy and intuitive UI, no need for professional installation or IT equipment cost.
Standalone Operation
Just plug in to your existing internet connection - even if you already have WiFI.
No App or Subscription Required
Get up and runing in minutes wihtout having to download an app or pay for a subscription.
| Name | Value |
|---|---|
| Compatible/Used for | Small Office and Home Office (SOHO) deployments |
| Dimensions | 170 x 63 x 242mm |
| Hardware Buttons | Default Reset |
| LAN Ports | One (1) 100/1000/2500Base-T Ethernet (RJ-45) port with Auto Uplink (Auto MDI-X) Four (4) 100/1000Base-T Ethernet (RJ-45) port with Auto Uplink (Auto MDIX-X) |
| LEDs | 8 LEDs (Power, Internet, LAN1, LAN2, LAN3, LAN4, 2.4G, 5G) |
| Maximum Number of Clients | 128: 64 for 2.4GHz; 64 for 5.0GHz |
| Product Type | Dual Band Access Point |
| Security | MAC Address filtering 3 SSIDs |
| Standards | IEEE 802.11ac IEEE 802.11n 2.0 IEEE 802.11g IEEE 802.11b IEEE 802.11a IEEE 802.11ax |
| Warranty | 3 Years |
| Weight | 504g |
| Wifi Ghz/Mbps | 800Mbps (2.4GHz) 2,400Mbps (5.0GHz) |
| Features | |
| 2.4 GHz |
 |
| 5 GHz |
|
| 6 GHz |
 |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 3200 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 800 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2400 Mbit/s |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 100,1000,2500 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3u |
| Number of users The number of people that use or can use this product. | 128 user(s) |
| Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link. |
|
| Wi-Fi Multimedia (WMM)/(WME) |
|
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | SSID, WPA, WPA2, WPA3 |
| MAC address filtering Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists. |
|
| Access Control List (ACL) |
|
| Management features | |
| Web-based management Using a website/web application to manage something. |
|
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 4 |
| WAN connection A wide area network (WAN) is a network that covers a broad area (i.e. any telecommunications network that links across metropolitan, regional, or national boundaries such as the Internet) using private or public network transports. Business and government entities utilize WANs to relay data among employees, clients, buyers, and suppliers from various geographical locations. | Ethernet (RJ-45) |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 12 V |
| Input current | 2.5 A |
| Design | |
| Placement Where the product can be placed e.g. floor, wall. | Table |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Reset button |
|
| LED indicators | LAN, Power, Status |
| Certification | CB IEC60950-1, CE LVD EN62368-1 |
| Antenna | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | Internal |
| Antennas quantity | 2 |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 3.5 dBi |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 63 mm |
| Depth The distance from the front to the back of something. | 170 mm |
| Height The measurement of the product from head to foot or from base to top. | 242 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 504 g |
| Packaging data | |
| Package type The type of product package e.g. box. | Box |
| Packaging content | |
| Number of products included The number of products that are included in the package. | 1 pc(s) |
| AC adapter included |
|
| Cables included | LAN (RJ-45) |
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| SKU | 599704 |
| MPN | WAX206-100AUS |
| Brand | Netgear |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.netgear.com/ |
