- Available for shipping
- Usually leaves our partner warehouse in 2-4 business days
- 3-5 business days at Bankstown Store
- 3-5 business days at Castle Hill Store
- 2-4 business days at Northmead Store

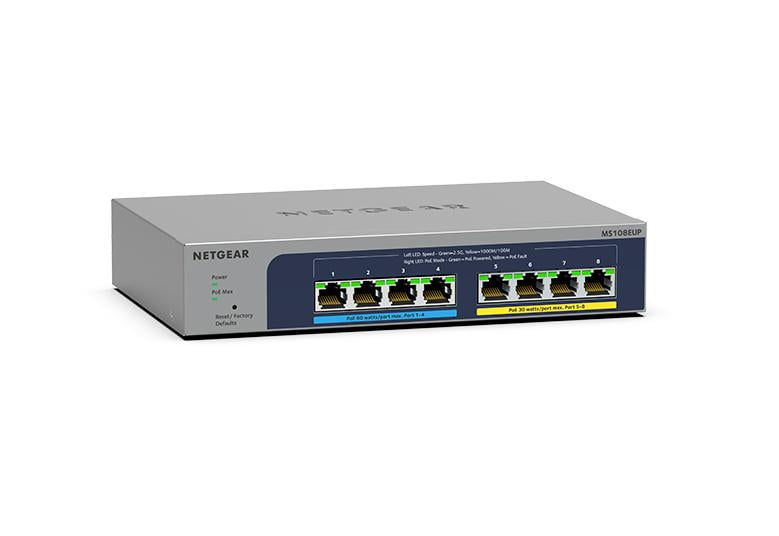

The NETGEAR MS108EUP Ultra60 PoE++ Multi-Gigabit Ethernet Plus Switch is for organizations who buy infrastructure for the long term and want future proofing. The MS108EUP allows you to deploy PoE+ and even PoE++ devices with a 230W power budget and both 1G and 2.5G speeds. The ideal companions to the MS108EUP are the NETGEAR WAX218 and WAX610 WiFi 6 Access Points that feature a 2.5G Ethernet port.
MS108EUP provides a total PoE budget of 230W and advanced PoE features such as uninterrupted PoE for powerful PoE applications. The switch provides four PoE+ and four PoE++ auto-adapt multispeed Ethernet ports that support 2.5G and 1G. Each of the 8 Multi-Gig ports automatically detects which speed is needed by the connected device and provides the optimal connection speed.
Each of the 4 Ultra60 PoE++ ports can provide up to 60 watts to power up the connected devices such as LED lighting, PTZ cameras, high-power IP speakers and IoT devices. The MS108EUP is fanless allowing it to be placed in noise-sensitive environments. This Plus-managed switch offers an updated, easy-to-use Web browser-based management GUI with configurable L2 network features like VLANs and PoE operation scheduling. The IGMP snooping feature can automatically define explicit action multicast groups to be supported per port. The MS108EUP is backed by NETGEAR s Limited Lifetime Warranty and 24/7 technical support.
| Name | Value |
|---|---|
| Category | Switch |
| Device Type | Multi-Gigabit Ethernet Plus Switch |
| Hardware Requirement | N/A |
| Ideal Companions | WAX218 and WAX610 WiFi 6 Access Points that feature a 2.5G Ethernet port |
| License Pricing | N/A |
| License Quantity | N/A |
| Manufacturer's Part Number | MS108EUP-100AUS |
| Platform Supported | N/A |
| Ports | 8 Ports |
| Product | N/A |
| Speed | 1G & 2.5G |
| System Requirement | N/A |
| Warranty | Limited Lifetime & 90 Days of Complimentary Technical Support |
| Wireless | No |
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Managed |
| Switch layer A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things). | L2/L3 |
| Quality of Service (QoS) support |
 |
| Web-based management Using a website/web application to manage something. |
|
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 8 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | 2.5G Ethernet (100/1000/2500) |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
 |
| Copper ethernet cabling technology | 100BASE-T, 1000BASE-T |
| Port mirroring |
|
| Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously. |
|
| Flow control support |
|
| Link aggregation |
|
| Rate limiting |
|
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Virtual LAN features | Port-based VLAN, Tagged VLAN |
| Number of VLANs | 64 |
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 40 Gbit/s |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 16000 entries |
| Store-and-forward |
|
| Jumbo frames support |
|
| Jumbo frames | 12000 |
| Packet buffer memory | 1.5 MB |
| Security | |
| DHCP features | DHCP client |
| IGMP snooping |
|
| Password protection The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure. |
|
| Queue scheduling algorithms | Strict Priority Queue (SPQ), Weighted Round Robin (WRR) |
| Multicast features | |
| Multicast support |
|
| Number of multicast groups filtered | 128 |
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Stackable Devices can be placed on top of each other. |
|
| Product colour The colour e.g. red, blue, green, black, white. | Grey |
| Housing material What the casing of the product is made of. | Metal |
| LED indicators |
|
| Certification | CE FCC 15 B CE/EN55032/24 CSA VCCI ACMA KC CCC BSMI |
| Performance | |
| Fanless |
|
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 373644 h |
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | PoE |
| Power supply included There is a power supply with this product. |
|
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 230 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 210 mm |
| Depth The distance from the front to the back of something. | 140 mm |
| Height The measurement of the product from head to foot or from base to top. | 40 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 900 g |
| SKU | 588455 |
| MPN | MS108EUP-100AUS |
| Brand | Netgear |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.netgear.com/ |
