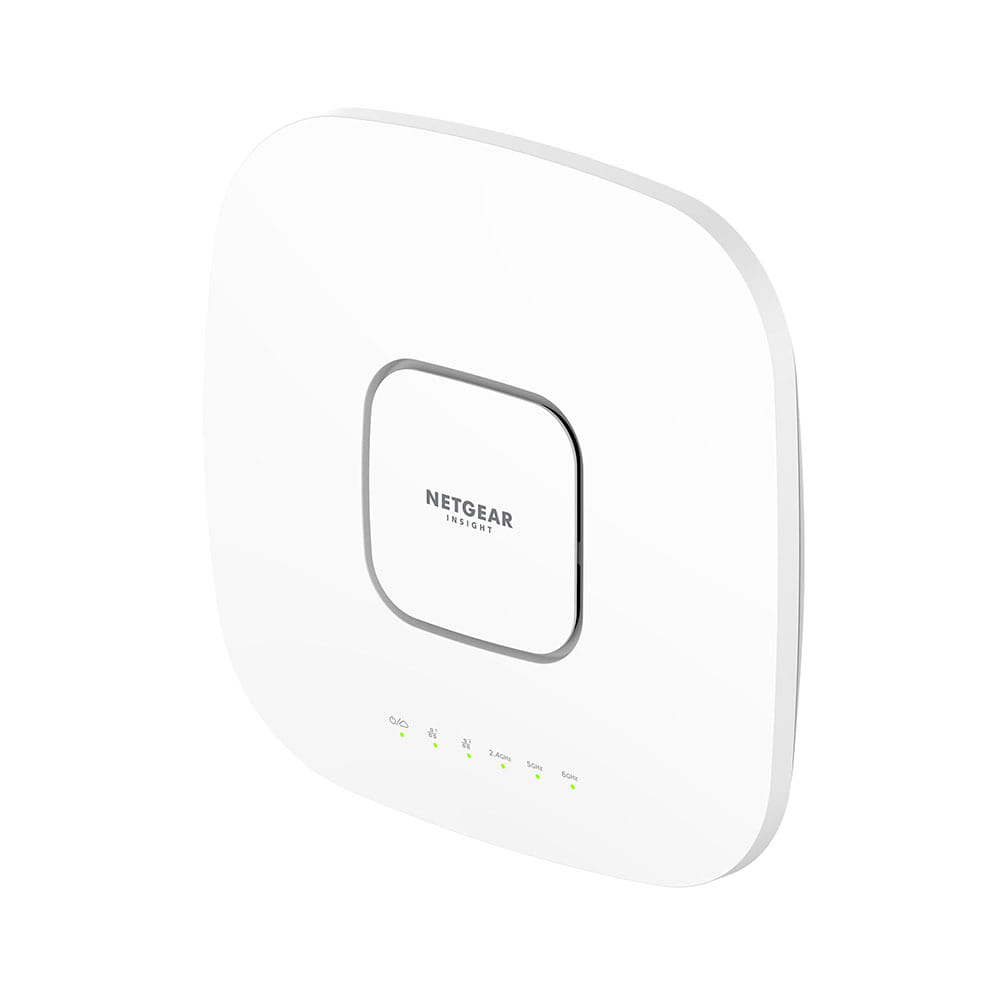

NETGEAR WAX630E, 7800 Mbit/s, 600 Mbit/s, 4800 Mbit/s, 10,100,1000,2500 Mbit/s, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Multi User MIMO
First Tri-Band WiFi 6E access point, WAX630E is the most powerful SMB access point in the industry. With WiFi 6E, a new 6Ghz band added to WiFi 6 making it the fastest WiFi available. Offers the features and capabilities of WiFi 6 access points, including higher performance, lower latency, and faster data rates, and extends into the new 6 GHz band for expanded spectrum capacity.
Wifi 6e, The Fastest Wifi Ever
WAX630E adds a new 6GHz band for new high-performance WiFi 6E devices like laptops and smartphones, reducing data loads on the other two bands so WiFi speed increases for every device connected to the access point.
Netgear Insight Remote Management
Manage locally or remotely through the Cloud for simple
yet powerful control of your network anytime, anywhere. Includes 1-year subscription.
Maximize Performance
WITH A NETGEAR POE++ SWITCH
2.5Gbps Ethernet port with Ultra60 PoE++ enables the fastest connection between the access point and switch
Wifi 6e, The Fastest Wifi Ever
WAX630E adds a new 6GHz band for new high-performance WiFi 6E devices like laptops and smartphones, reducing data loads on the other two bands so WiFi speed increases for every device connected to the access point.
Netgear Insight Remote Management
Manage locally or remotely through the Cloud for simple
yet powerful control of your network anytime, anywhere. Includes 1-year subscription.
Maximize Performance
WITH A NETGEAR POE++ SWITCH
2.5Gbps Ethernet port with Ultra60 PoE++ enables the fastest connection between the access point and switch
| Features | |
| 2.4 GHz |
 |
| 5 GHz |
|
| 6 GHz |
 |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 7800 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 600 Mbit/s |
| Maximum data transfer rate (5 GHz) | 4800 Mbit/s |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000,2500 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link. |
|
| MIMO |
|
| MIMO type | Multi User MIMO |
| Spread spectrum method | OFDM, OFDMA |
| Modulation Modulation is the process of varying one or more properties of a periodic waveform, called the carrier signal (High Frequency Signal), with a modulating signal which typically contains information to be transmitted. The aim of digital modulation is to transfer a digital bit stream over an analog bandpass channel, for example over the public switched telephone network (where a bandpass filter limits the frequency range to between 300 and 3400 Hz), or over a limited radio frequency band. The aim of analog modulation is to transfer an analog baseband (or lowpass) signal, for example an audio signal or TV signal, over an analog bandpass channel at a different frequency, for example over a limited radio frequency band or a cable TV network channel. | OFDM |
| Wi-Fi Multimedia (WMM)/(WME) |
|
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | EAP-TLS, PEAP, SSL/TLS, TTLS, WPA, WPA2, WPA3 |
| MAC address filtering Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists. |
|
| Service Set Identifier (SSID) features | SSID broadcast, SSID broadcast on/off |
| Auto Wireless Distribution System (WDS) |
|
| Remote Authentication Dial-In User Service (RADIUS) |
|
| Management features | |
| Web-based management Using a website/web application to manage something. |
|
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Output voltage | 12 V |
| Output current | 3.5 A |
| Design | |
| Placement Where the product can be placed e.g. floor, wall. | Ceiling, Wall |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Reset button |
|
| Antenna | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | Internal |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 4.4 dBi |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 266.6 mm |
| Depth The distance from the front to the back of something. | 268.3 mm |
| Height The measurement of the product from head to foot or from base to top. | 55.5 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.05 kg |
| Packaging content | |
| Number of products included The number of products that are included in the package. | 1 pc(s) |
| Mounting kit |
|
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| SKU | 756527 |
| MPN | WAX630E-100AUS |
| Brand | Netgear |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.netgear.com/ |
