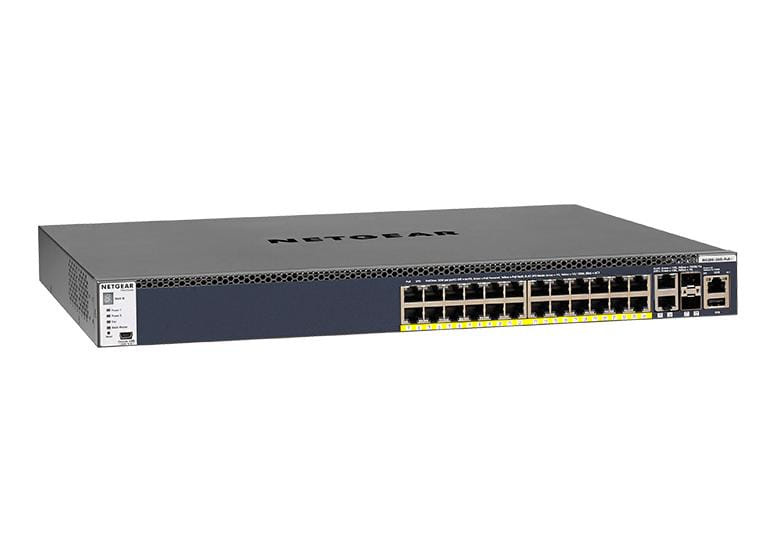

Netgear GSM4328PB 24-Port PoE+ Layer 3 Fully Managed Stackable Switch
Item No:
387093
MPN:
GSM4328PB-100AJS
$5,299.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
M4300-28G-PoE+ 24-Port Fully Managed Stackable Layer 3 PoE+ Switch (24 x 1G ports with 2 x 10GBASE-T & 2 x SFP+, 1,000W PSU)
NETEGAR - M4300 Series ProSAFE Intelligent Edge Managed Switches (Stackable, Layer 3)
The M4300 is the world s first versatile stackable solution designed for full power PoE+ edge, redundant Top of Rack server / storage interconnect, and dependable SMB core deployment.
1G and 10G virtual chassis platform with 10G stacking designed for mid-enterprise edge and SMB core deployment. The M4300 series scales from 24x1G to 48x10G, and up to 384 ports per stack. Nonstop forwarding, spine and leaf, edge to core connectivity for unified wired and wireless networks.
All Fully Managed Layer 3 out of the box - no Licence required
All M4300 series switches can be stacked
Lifetime Warranty
PoE models: APS550W and APS1000W cannot be mixed and matched. A switch can only have two APS550W, or two APS1000W. PA versions can be upgraded to PB, but their APS550W must be replaced by APS1000W (and reversely).
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Managed |
| Switch layer A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things). | L2/L3/L4 |
| Quality of Service (QoS) support |
 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 24 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | Gigabit Ethernet (10/100/1000) |
| 10G Ethernet (copper) ports quantity | 2 |
| SFP+ module slots quantity | 2 |
| Console port | RJ-45 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| Power connector | DC-in jack |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1AX, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
|
| IP routing |
|
| Spanning tree protocol |
|
| Auto-sensing |
|
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Virtual LAN features | Private VLAN |
| Number of VLANs | 4096 |
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 128 Gbit/s |
| Forwarding rate | 357 Mpps |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 16000 entries |
| Latency (10 Gbps) | 2.74 µs |
| Number of static routes | 64 |
| Jumbo frames support |
|
| Packet buffer memory | 16 MB |
| Security | |
| DHCP features | DHCP server |
| Access Control List (ACL) |
|
| IGMP snooping |
|
| SSH/SSL support |
|
| BPDU filtering/protection |
|
| Multicast features | |
| Multicast support |
|
| Number of multicast groups filtered | 4000 |
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Stackable Devices can be placed on top of each other. |
|
| Form factor The shape or design of the product. | 1U |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Performance | |
| Built-in processor Whether or not a processor is built into the device. |
|
| Processor frequency The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time. | 800 MHz |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 1024 MB |
| Flash memory | 256 MB |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 39.8 dB |
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | AC |
| Power supply included There is a power supply with this product. |
|
| Redundant power supply (RPS) support Additional power supply which can run a computer if the main power supply fails. |
|
| Number of power supply units | 1 |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 110 - 240 V |
| Power consumption (max) The maximum amount of power used by the device. | 833.2 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 720 W |
| Operational conditions | |
| Heat dissipation The heat generated by the power supply. | 2844.55 BTU/h |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 440 mm |
| Depth The distance from the front to the back of something. | 310 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 5.2 kg |
| SKU | 387093 |
| MPN | GSM4328PB-100AJS |
| Brand | Netgear |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.netgear.com/ |
