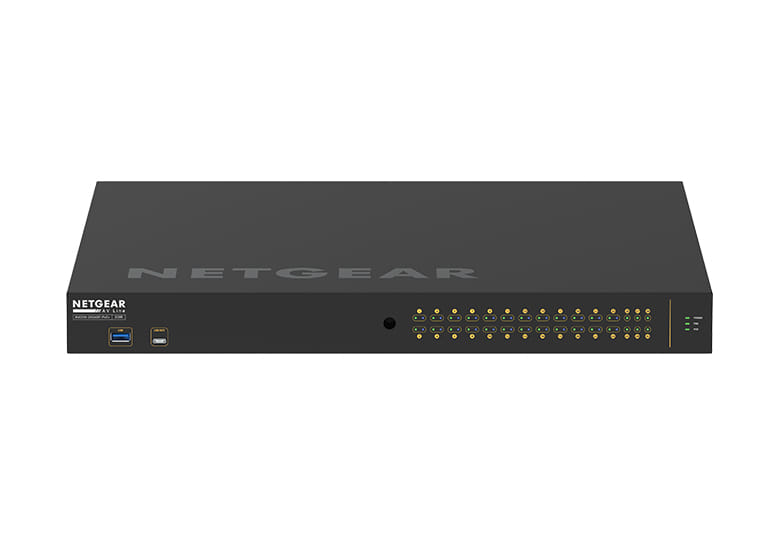

NETGEAR M4250 26G4XF PoE , Managed, L2/L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U
Pre configured for out of the box use
NETGEAR IGMP PlusTM enables instant multicast functionality for most AV over IP installations
Dedicated AV web based GUI interface
Unique interface designed for the AV professional with color coded, port based profiles
Profiles for common audio protocols
Quickly assign profiles to ports for Dante, AES67, and AVB audio configurations. AVB Requires a separate license
Video profiles built in
Special profiles for NVX, SVSI, Q SYS and Dante video profiles can be easily assigned to ports as needed
Unique Automatic Configuration
Auto trunk and auto lag functionality automatically configures other M4250 switches for use in star topology.
Rackmount versatility
1U, 400mm deep rackmount with all power and Ethernet ports on the back
Reversed mounting possibility
Possible reversed mounting with ports in the front including recessed mounting to protect cables
Universal mounting availability
Mounting outside the rack made possible with bottom M5 and front M10 threaded holes
Adjustable fan functionality
Quiet mode with 42dB@25 C, or fanless mode when PoE load and temperature allow
Easier configuration with new AV GUI
The AV oriented, web based GUI permits factory or user specified profiles to be assigned to individual ports as needed.
Use in noise sensitive environments
Adjustable fans can be turned off if certain conditions are met. Even the default Quiet mode is quieter than most other switches.
Get up and running fast with little engineering time required
Our NETGEAR IGMP Plus TM feature is set from the factory to ensure out of the box functionality for most AV over IP installations
Multiple mounting options provide ultimate flexibility
Threaded mounting holes sized to industry standards are built into the chassis for mounting behind a display or clamped to a truss.
NETGEAR IGMP PlusTM enables instant multicast functionality for most AV over IP installations
Dedicated AV web based GUI interface
Unique interface designed for the AV professional with color coded, port based profiles
Profiles for common audio protocols
Quickly assign profiles to ports for Dante, AES67, and AVB audio configurations. AVB Requires a separate license
Video profiles built in
Special profiles for NVX, SVSI, Q SYS and Dante video profiles can be easily assigned to ports as needed
Unique Automatic Configuration
Auto trunk and auto lag functionality automatically configures other M4250 switches for use in star topology.
Rackmount versatility
1U, 400mm deep rackmount with all power and Ethernet ports on the back
Reversed mounting possibility
Possible reversed mounting with ports in the front including recessed mounting to protect cables
Universal mounting availability
Mounting outside the rack made possible with bottom M5 and front M10 threaded holes
Adjustable fan functionality
Quiet mode with 42dB@25 C, or fanless mode when PoE load and temperature allow
Easier configuration with new AV GUI
The AV oriented, web based GUI permits factory or user specified profiles to be assigned to individual ports as needed.
Use in noise sensitive environments
Adjustable fans can be turned off if certain conditions are met. Even the default Quiet mode is quieter than most other switches.
Get up and running fast with little engineering time required
Our NETGEAR IGMP Plus TM feature is set from the factory to ensure out of the box functionality for most AV over IP installations
Multiple mounting options provide ultimate flexibility
Threaded mounting holes sized to industry standards are built into the chassis for mounting behind a display or clamped to a truss.
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Managed |
| Switch layer A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things). | L2/L3 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 24 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 4 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| Network | |
| IPv4 routes | 512 |
| IPv6 routes | 128 |
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
 |
| Number of VLANs | 4 |
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 132 Gbit/s |
| Throughput | 98.21 Mpps |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 16 entries |
| Latency (1 Gbps) | 2.29 µs |
| Latency (10 Gbps) | 0.83 µs |
| Jumbo frames support |
|
| Jumbo frames | 12000 |
| Packet buffer memory | 16 MB |
| Protocols | |
| IPv4 FIB entries | 256 |
| IPv6 FIB entries | 16 |
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Form factor The shape or design of the product. | 1U |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Temperature sensor |
|
| Performance | |
| Built-in processor Whether or not a processor is built into the device. |
|
| Processor model The model number for the processor in a computer. | ARM Cortex-A57 |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 42 dB |
| Fanless |
|
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | PoE |
| Power supply included There is a power supply with this product. |
|
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 45 W |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 440 mm |
| Depth The distance from the front to the back of something. | 43.2 mm |
| Height The measurement of the product from head to foot or from base to top. | 400 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 5.45 kg |
| Packaging data | |
| Cables included | AC, LAN (RJ-45), USB Type-C |
| Rack mount kit |
|
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| SKU | 508883 |
| MPN | GSM4230PX-100AJS |
| Brand | Netgear |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
