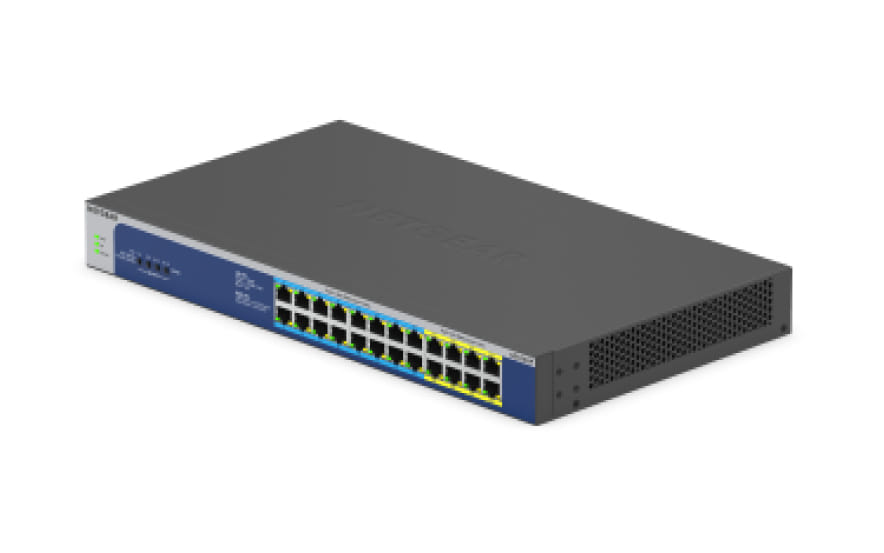

Netgear GS524UP-100AJS, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack mounting
Instant Connectivity and Reliable Performance
The NETGEAR Gigabit Unmanaged Switch series helps your business cost-effectively expand your network to Gigabit speeds and higher port counts. The GS524UP joins the series and offers 16 Ultra60 PoE++ ports and 8 PoE+ ports to power high-power PoE devices. With a total PoE power budget of 480W, deploy denser PoE+ and PoE++ devices to a single switch rather than multiple.
The GS524UP is energy efficient, built to last, and rigorously tested to provide the reliability your business needs. 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.
Powerful Ultra60 PoE++
Ideal for powering and connecting 802.11AX wireless access points, 4K/8K IP surveillance cameras, PoE lighting, and high power audio speakers, the GS524UP gives you a highly cost-effective and powerful switch with the best cost/PoE budget ratio.
NETGEAR Ultra60 PoE++ Unmanaged Switches support the latest Energy Efficient Ethernet (IEEE 802.3bt) standard, powerful enough to support devices that require greater power. The GS524UP includes 16 PoE++ ports that can deliver up to 60W of power per port.
PoE Mode
Your business is always changing and growing, but not all your devices may be 802.3bt standard compatible. PoE mode on the GS524UP solves this problem by providing power to both pre-bt and bt standard devices.
- GS524UP by default uses 802.3bt standard, only compatible for bt standard devices
- 802.3bt Standard Devices: to power bt standard devices, select 802.3bt mode to receive 60W of power
- Pre-802.3bt Standard Devices: to power up pre-802.3bt standard products, select the pre-802.3bt mode to receive more than 30W of power
- If the GS524UP is set to pre-802.3bt mode but the device is standard 802.3bt, then PoE++ power will not be delivered to the device. The switch will only deliver 802.3af (<15W)
The NETGEAR Gigabit Unmanaged Switch series helps your business cost-effectively expand your network to Gigabit speeds and higher port counts. The GS524UP joins the series and offers 16 Ultra60 PoE++ ports and 8 PoE+ ports to power high-power PoE devices. With a total PoE power budget of 480W, deploy denser PoE+ and PoE++ devices to a single switch rather than multiple.
The GS524UP is energy efficient, built to last, and rigorously tested to provide the reliability your business needs. 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.
Powerful Ultra60 PoE++
Ideal for powering and connecting 802.11AX wireless access points, 4K/8K IP surveillance cameras, PoE lighting, and high power audio speakers, the GS524UP gives you a highly cost-effective and powerful switch with the best cost/PoE budget ratio.
NETGEAR Ultra60 PoE++ Unmanaged Switches support the latest Energy Efficient Ethernet (IEEE 802.3bt) standard, powerful enough to support devices that require greater power. The GS524UP includes 16 PoE++ ports that can deliver up to 60W of power per port.
PoE Mode
Your business is always changing and growing, but not all your devices may be 802.3bt standard compatible. PoE mode on the GS524UP solves this problem by providing power to both pre-bt and bt standard devices.
- GS524UP by default uses 802.3bt standard, only compatible for bt standard devices
- 802.3bt Standard Devices: to power bt standard devices, select 802.3bt mode to receive 60W of power
- Pre-802.3bt Standard Devices: to power up pre-802.3bt standard products, select the pre-802.3bt mode to receive more than 30W of power
- If the GS524UP is set to pre-802.3bt mode but the device is standard 802.3bt, then PoE++ power will not be delivered to the device. The switch will only deliver 802.3af (<15W)
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 24 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | Gigabit Ethernet (10/100/1000) |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3bt,IEEE 802.3i,IEEE 802.3p,IEEE 802.3u |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
 |
| Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously. |
 |
| Half duplex |
|
| Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link. |
|
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 48 Gbit/s |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 8000 entries |
| Latency (1 Gbps) | 12 µs |
| Packet forwarding rate (1 Gbps) | 1448000 pps |
| Packet buffer memory | 0.192 MB |
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Product colour The colour e.g. red, blue, green, black, white. | Grey |
| LED indicators | Activity, Link, PoE, Power, Speed |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 2 fan(s) |
| Performance | |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 809853.3 h |
| Power | |
| Power supply included There is a power supply with this product. |
|
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 8/4 A |
| Power consumption (max) The maximum amount of power used by the device. | 578 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 60 W |
| Total Power over Ethernet (PoE) budget | 480 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation The heat generated by the power supply. | 1976.0232 BTU/h |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 390 mm |
| Depth The distance from the front to the back of something. | 220 mm |
| Height The measurement of the product from head to foot or from base to top. | 43 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 3.1 kg |
| SKU | 508877 |
| MPN | GS524UP-100AJS |
| Brand | Netgear |
