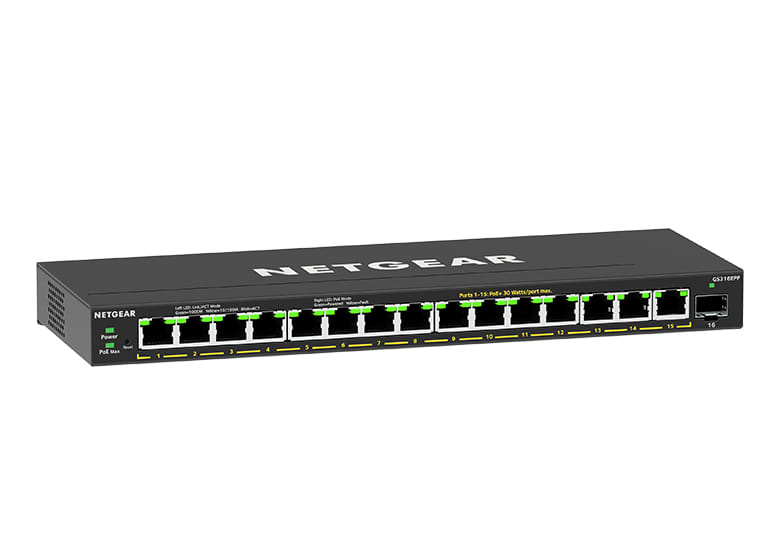

Netgear GS316EPP 16-Port PoE Gigabit Ethernet Switch 231W

Management features
Switch type What switch device has, managed or unmanaged.	Managed
Quality of Service (QoS) support
Web-based management Using a website/web application to manage something.

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets).	16
Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets).	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	1
Power connector	DC-in jack

Network
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Copper ethernet cabling technology	10BASE-T,100BASE-TX,1000BASE-T
Port mirroring
Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.
Flow control support
Link aggregation
Rate limiting
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100,1000 Mbit/s
VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.
Virtual LAN features	Port-based VLAN,Tagged VLAN
Number of VLANs	64

Data transmission
Switching capacity The data transfer capacity of the switch per second.	32 Gbit/s
MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.	4096 entries
Store-and-forward
Jumbo frames support
Jumbo frames	10000
Packet buffer memory	0.192 MB

Security
DHCP features	DHCP client
IGMP snooping
Password protection The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure.
Queue scheduling algorithms	Weighted Round Robin (WRR)

Multicast features
Multicast support
Number of multicast groups filtered	128

Design
Rack mounting The type of mounting that can position devices in a shelving system (rack).
Product colour The colour e.g. red, blue, green, black, white.	Black
Housing material What the casing of the product is made of.	Metal
LED indicators
Wall mountable The product can be mounted on (attached to ) a wall.
Certification	FCC 15 B CE/EN55032/24 VCCI ACMA CSA KC BSMI

Performance
Fanless
Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.	570435 h

Technical details
Sustainability compliance
Sustainability certificates	CE

Power over Ethernet (PoE)
Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Power over Ethernet plus (PoE+) ports quantity	15
Total Power over Ethernet (PoE) budget	231 W

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-20 - 70 °C
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 3000 m

Weight & dimensions
Width The measurement or extent of something from side to side.	286 mm
Depth The distance from the front to the back of something.	102 mm
Height The measurement of the product from head to foot or from base to top.	27 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	880 g

Packaging data
Cables included	AC
User guide
