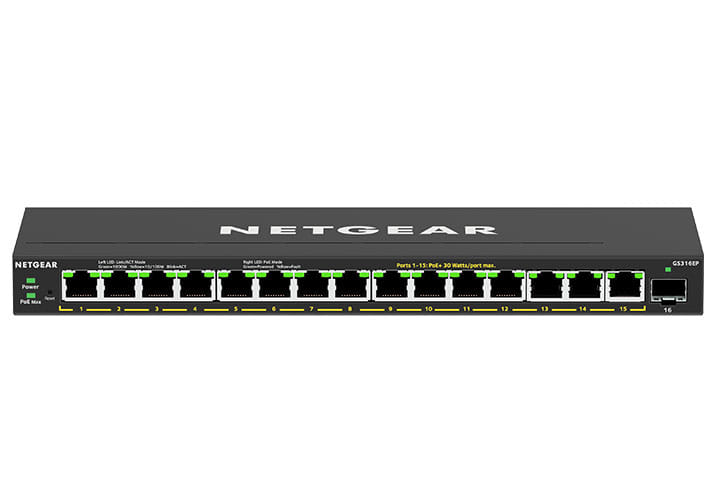

Netgear GS316EP-100AUS, Managed, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Wall mountable
The NETGEAR 16-Port PoE+ Gigabit Ethernet Plus Switch delivers essential business networking features and powers PoE+ devices like VoIP phones, IP cameras, and more.
Gigabit Ethernet
16 ports provide up to 1000 Mbps of dedicated, non-blocking bandwidth each.
PoE+ Support
15 PoE+ ports provide a total of 180W of power so you can power and connect your devices with a single wire.
Advanced PoE Controls
Manage PoE prioritization, PoE power limit per port, PoE scheduling and more for simple control over all PoE-powered devices.
Non-Blocking Switching
10Gbps (10/100/1000 Mbps) line rate fabric ensures congestion-free connectivity to your devices.
Fanless Design
Silent operation makes this switch perfect for noise-sensitive environments.
Versatile Mounting Options
Install your switch on your desktop or mount it to your wall with the hardware provided in the box.
Gigabit Ethernet
16 ports provide up to 1000 Mbps of dedicated, non-blocking bandwidth each.
PoE+ Support
15 PoE+ ports provide a total of 180W of power so you can power and connect your devices with a single wire.
Advanced PoE Controls
Manage PoE prioritization, PoE power limit per port, PoE scheduling and more for simple control over all PoE-powered devices.
Non-Blocking Switching
10Gbps (10/100/1000 Mbps) line rate fabric ensures congestion-free connectivity to your devices.
Fanless Design
Silent operation makes this switch perfect for noise-sensitive environments.
Versatile Mounting Options
Install your switch on your desktop or mount it to your wall with the hardware provided in the box.
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Managed |
| Quality of Service (QoS) support |
 |
| Web-based management Using a website/web application to manage something. |
|
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 16 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 1 |
| Power connector | DC-in jack |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| Port mirroring |
|
| Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously. |
|
| Flow control support |
|
| Link aggregation |
|
| Rate limiting |
|
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Virtual LAN features | Port-based VLAN,Tagged VLAN |
| Number of VLANs | 64 |
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 32 Gbit/s |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 4096 entries |
| Store-and-forward |
|
| Jumbo frames support |
|
| Jumbo frames | 10000 |
| Packet buffer memory | 0.192 MB |
| Security | |
| DHCP features | DHCP client |
| IGMP snooping |
|
| Password protection The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure. |
|
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Multicast features | |
| Multicast support |
|
| Number of multicast groups filtered | 128 |
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Metal |
| LED indicators |
|
| Wall mountable The product can be mounted on (attached to ) a wall. |
|
| Certification | FCC 15 B CE/EN55032/24 VCCI ACMA CSA KC BSMI |
| Performance | |
| Fanless |
|
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 784742 h |
| Technical details | |
| Sustainability compliance |
|
| Sustainability certificates | CE |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power over Ethernet plus (PoE+) ports quantity | 15 |
| Total Power over Ethernet (PoE) budget | 180 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 70 °C |
| Operating altitude | 0 - 3000 m |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 286 mm |
| Depth The distance from the front to the back of something. | 102 mm |
| Height The measurement of the product from head to foot or from base to top. | 27 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 880 g |
| Packaging data | |
| Cables included | AC |
| User guide |
|
| SKU | 559636 |
| MPN | GS316EP-100AUS |
| Brand | Netgear |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.netgear.com/ |
