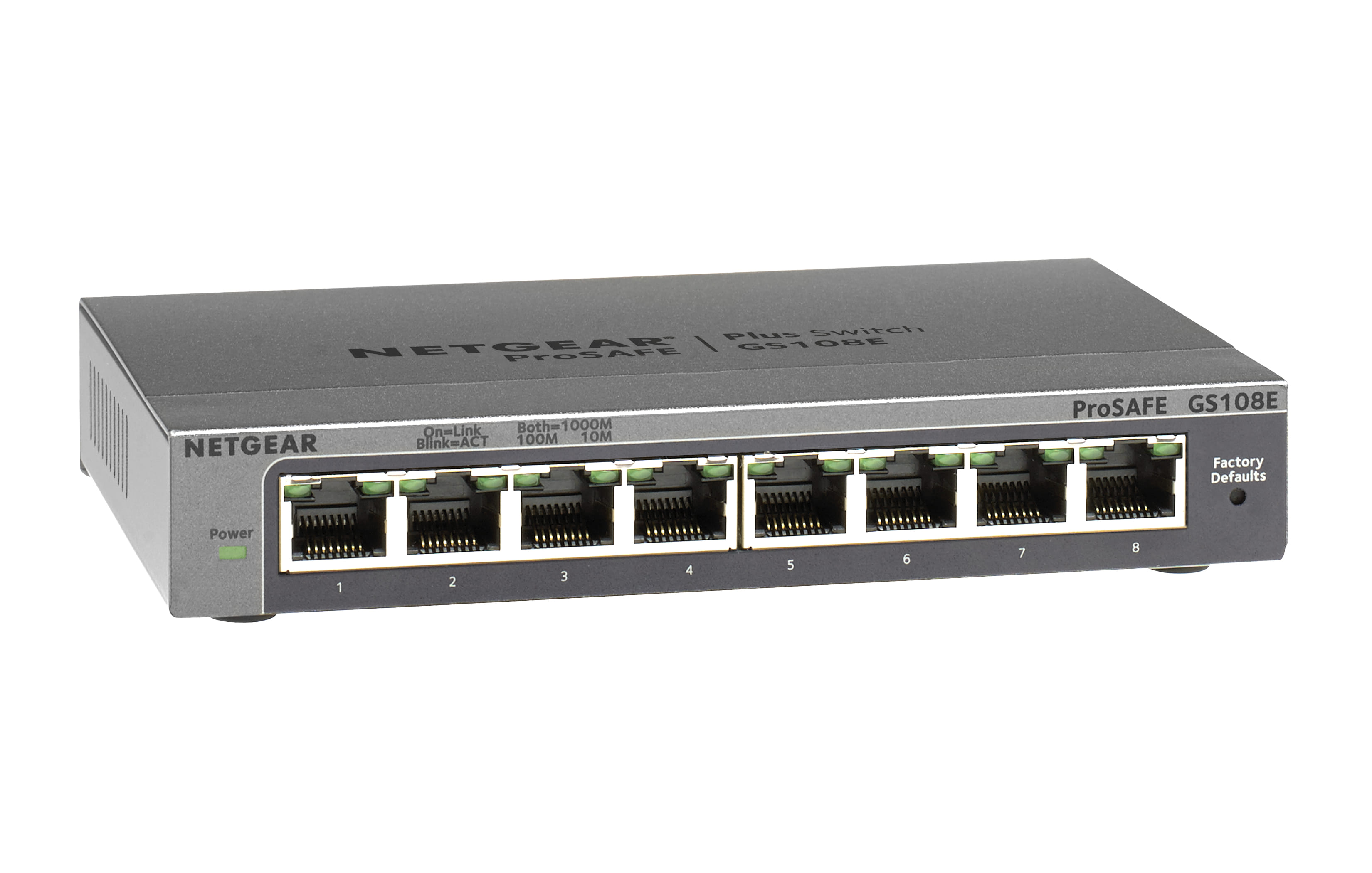

Netgear GS108E ProSafe Plus 8-Port Gigabit Ethernet Switch

Item No:
217714
MPN:
GS108E-300AUS
$85.00

Netgear GS108E ProSafe Plus 8-Port Gigabit Ethernet Switch

$85.00
Payment options
Shipping Information
  • Available for shipping
  • Usually leaves our partner warehouse in 1-2 business days
Store Availability
  • 2-3 business days at Bankstown
  • 2-3 business days at Blacktown
  • 2-3 business days at Castle Hill
Shipping Estimate
10/100/1000, QoS, VLAN, Loop Detection,

Today's growing businesses are both placing more demands on and relying more on their network. Companies are putting more applications and demands on their Ethernet Infrastructure. Using VoIP phones and IP cameras require more than simple plug-and-play connectivity. Additionally, Internet-based applications such as Hotmail and Google Calendaring have made keeping the network up a business-critical need. However, companies do not necessarily have more money or advanced training to deal with complex managed switches. NETGEAR's new ProSafe Plus Switches meet this growing need by providing easy to use visibility and limited confi guration capabilities. To provide more insight into the network behavior, ProSafe Plus Switches offer traffic monitoring for users to observe traffic behavior. Additionally, if there are connectivity issues, these switches offer a cable diagnostic test capability that can identify and even locate problems in the cables. To optimize traffic through the switches, ProSafe Plus Switches offer both port and tag-based prioritization to keep latency-sensitive traffic moving ahead of less critical packets. Also, as a means of improving security or managing collision domains, ProSafe Smart Switches offer VLAN technology. ProSafe Plus Switches offering these monitoring and confi guration capabilities at a slight cost premium over un anaged switches, delivering great value to the end user.

Additionally, furthering NETGEAR's support of the environment, ProSafe Plus Switches have power-saving Green Ethernet technology. The GS108E switch comes in a sturdy metal case with a fan-less design for silent operation.

gs108e network diagram

NETGEAR Green

  • Up to 60% lower power consumption than the non-Green version
  • Auto power-down and cable-length detection for energy savings
  • Packaging manufactured with at least 80% recycled materials

gs108e specs table

Specifications

Standards Compliance

  • IEEE 802.3i 10BASE-T Ethernet
  • IEEE 802.3u 100BASE-TX Fast Ethernet
  • IEEE 802.3z 1000BASE-T Gigabit

Ethernet

  • Compatible with all major network software

Network Ports

  • Eight (8) 10/100/1000 Mbps Ethernet RJ-45 ports

Power Adapter

  • 12V, 1.0A power adapter, localized to country of sale

Physical Specifications

  • Dimensions (h x w x d): 27 x 158 x 105 mm (1.1 x 6.2 x 4.1 in)
  • Weight: 522 g (1.15 lbs)

Electromagnetic Compliance

  • CE mark (commercial), EN 55022 (CISPR 22) Class B, FCC Part 15 Class B, VCCI Class B, C-Tick

Safety Agency Approvals

  • CE/LVD EN 60950, CB

Switch Environmental Specifi cations

  • Operating temperature: 32 to 122 F (0 to 50 C)
  • Operating humidity: 90% maximum
  • relative humidity, non-condensing

System Requirements

  • Ethernet Category 5 cable
  • Network card for each PC
  • Microsoft Windows 7, Vista, or XP for running Confi guration Utility

Package Contents

  • ProSafe Plus Switch, 8-port Gigabit

Ethernet Switch (GS108E)

  • Wall-mount kit
  • 12V, 1.0A power adapter
  • Quick install guide
  • Resource CD with configuration utility software

Warranty

  • NETGEAR Lifetime Warranty (see information enclosed)

Features

  • Gigabit speed with QoS, VLAN and network monitoring
  • Simple network set-up on top of Plug-and-Play connectivity
  • Detects loops and prevents broadcast storm
  • NETGEAR Green, power saving features
  • VLAN support for traffic separation
  • Quality of Service (QoS) prioritizes traffic
  • Auto "Denial-of-Service" (DoS) prevention
  • Network monitoring and bandwidth control
  • Troubleshoot connection issues via cable test
  • Loop Detection

System Requirements

  • Ethernet Category 5 cable
  • Network card for each PC
  • Microsoft Windows 7, Vista, or XP for running Confi guration Utility
Management features
Switch type What switch device has, managed or unmanaged. Managed
Quality of Service (QoS) support
Web-based management Using a website/web application to manage something.
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). 8
Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). Gigabit Ethernet (10/100/1000)
Power connector DC-in jack
Network
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support The product can use Oracle 10G, which is a database management system introduced in 2003.
Port mirroring
Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.
Broadcast storm control
Rate limiting
VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.
Virtual LAN features Port-based VLAN
Number of VLANs 32
Data transmission
Switching capacity The data transfer capacity of the switch per second. 16 Gbit/s
MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. 4000 entries
Jumbo frames support
Security
DHCP features DHCP client
IGMP snooping
MAC address filtering Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists.
Password protection The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure.
Queue scheduling algorithms Weighted Round Robin (WRR)
Multicast features
Multicast support
Number of multicast groups filtered 128
Design
Rack mounting The type of mounting that can position devices in a shelving system (rack).
Product colour The colour e.g. red, blue, green, black, white. Black
LED indicators
Performance
Firmware upgradeable
Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. 2525259 h
Power
Power supply included There is a power supply with this product.
DC input voltage 12 V
Input current 1 A
Power consumption (max) The maximum amount of power used by the device. 4 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. 0 - 40 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. -20 - 70 °C
Operating relative humidity (H-H) 0 - 90%
Storage relative humidity (H-H) 0 - 95%
Operating altitude 0 - 3000 m
Weight & dimensions
Width The measurement or extent of something from side to side. 158 mm
Depth The distance from the front to the back of something. 101 mm
Height The measurement of the product from head to foot or from base to top. 29 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. 510 g
Sustainability
Sustainability certificates CE, ENERGY STAR
Logistics data
Harmonized System (HS) code 85176990
More Information
SKU 217714
MPN GS108E-300AUS
Brand Netgear
Product Condition Brand New/Unused
Stock Availability Available for Shipping
Warranty Period Limited Lifetime Warranty
Warranty Contact https://www.netgear.com/
