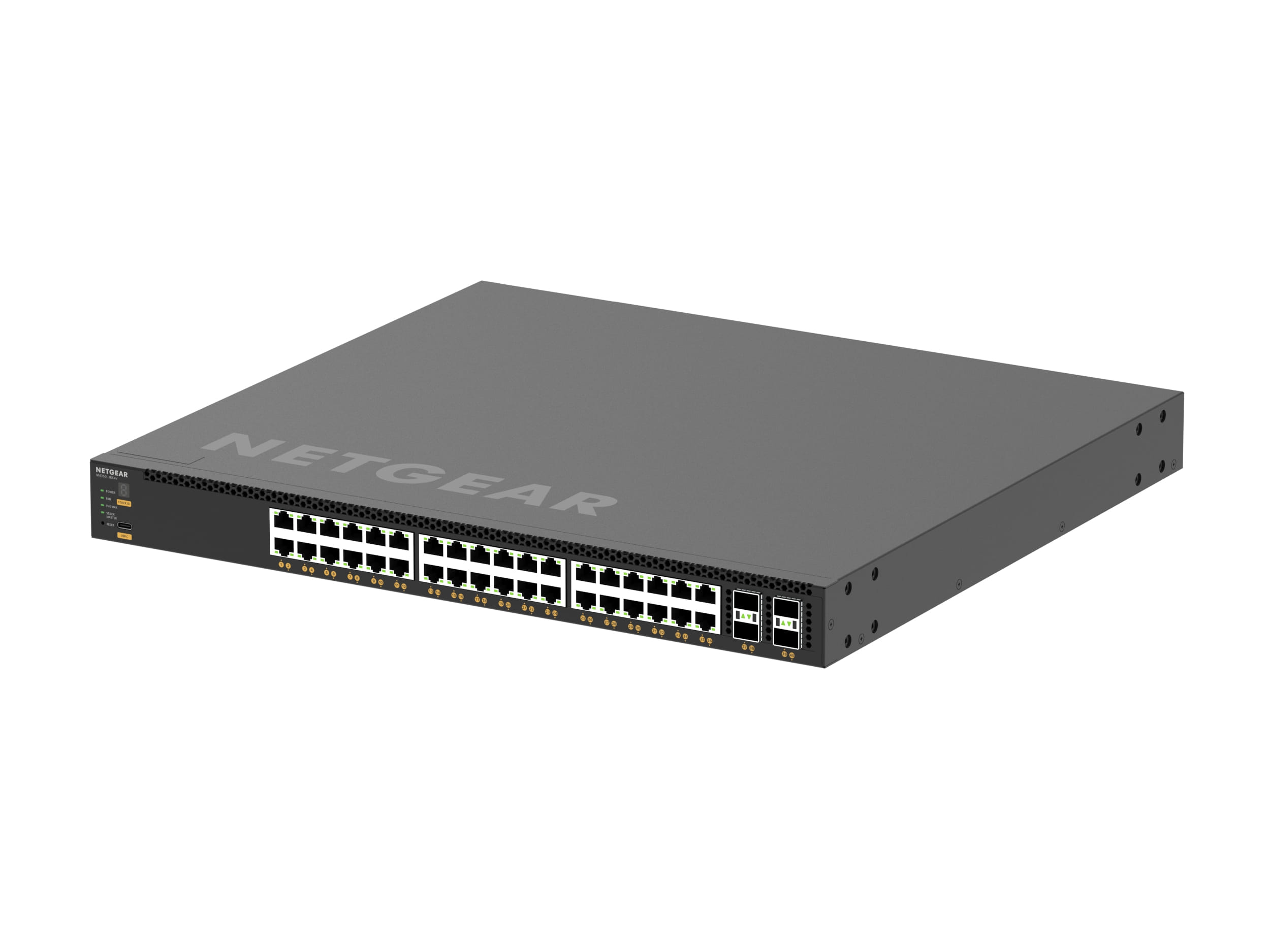

Netgear 40-Port Managed L3 Stack Switch 10G

Management features
Switch type What switch device has, managed or unmanaged.	Managed
Switch layer A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things).	L3
Quality of Service (QoS) support
Web-based management Using a website/web application to manage something.
ARP inspection

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets).	36
Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets).	10G Ethernet (100/1000/10000)
10G Ethernet (copper) ports quantity	36
SFP28 ports quantity	4
Power connector	AC-in jack

Network
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ak, IEEE 802.3bz, IEEE 802.3u
10G support The product can use Oracle 10G, which is a database management system introduced in 2003.
Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.
Policy-based routing
Flow control support
Link aggregation
Broadcast storm control
Rate limiting
Spanning tree protocol
6to4 tunnel
IPv4 routes	512
IPv6 routes	256
VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.
Virtual LAN features	MAC address-based VLAN, Private VLAN, Voice VLAN
Number of VLANs	4093

Data transmission
Switching capacity The data transfer capacity of the switch per second.	920 Gbit/s
Throughput	684.48 Mpps
MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.	16000 entries
Store-and-forward
Latency (1 Gbps)	2.54 µs
Latency (10 Gbps)	2.75 µs
Jumbo frames support
Jumbo frames	12000
Packet buffer memory	64 MB

Security
DHCP features	DHCP Option 150, DHCP Option 66, DHCP Option 67, DHCP relay, DHCP server, DHCP snooping
Access Control List (ACL)
Access Control List (ACL) egress	1023
Access Control List (ACL) ingress	511
IGMP snooping
IGMP proxy
MAC address filtering Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists.
Static port security
Loop protection
BPDU filtering/protection
Authentication	Guest VLAN, MAC-based authentication
Root protection
Password protection The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure.
DoS attack prevention
Authentication type Authentification means proving identity to gain access to sometheng. There are various types of authentification exist e.g. access card, password, biometric data.	RADIUS, TACACS+
Queue scheduling algorithms	Strict Priority Queue (SPQ), Weighted random early detection (WRED)

Multicast features
Multicast support
Multicast Listener Discovery (MLD) snooping

Protocols
Management protocols	SNMP V1, V2, V3
GARP VLAN Registration Protocol (GVRP)
Routing protocols	OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2

Design
Rack mounting The type of mounting that can position devices in a shelving system (rack).
Stackable Devices can be placed on top of each other.
Form factor The shape or design of the product.	1U
Product colour The colour e.g. red, blue, green, black, white.	Black
LED indicators
Airflow direction	Front-to-back airflow

Performance
Built-in processor Whether or not a processor is built into the device.
Processor model The model number for the processor in a computer.	ARM Cortex-A57
Processor frequency The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time.	1800 MHz
Memory type Type of memory in the device e.g. DDR3, SRAM (Static RAM).	DDR4-SDRAM
Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.	4096 MB
Flash memory	512 MB
Noise level The amplitude level of the undesired background noise, usually measured in decibels (db).	54 dB
sFlow

Power
Power source What is providing power for the product e.g. mains electricity.	AC
Power supply included There is a power supply with this product.
AC input voltage The voltage of the AC electricity that is inputted into the product.	100 - 240 V
AC input frequency	60 Hz
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.	148 W
Power consumption (max) The maximum amount of power used by the device.	454 W

Power over Ethernet (PoE)
Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Power over Ethernet 4PPoE (PoE++) ports quantity	36
Power over Ethernet (PoE) power per port	90 W
Total Power over Ethernet (PoE) budget	1760 W

Other features
Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable.	750 W

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 45 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-20 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 3000 m

Weight & dimensions
Width The measurement or extent of something from side to side.	440 mm
Depth The distance from the front to the back of something.	400 mm
Height The measurement of the product from head to foot or from base to top.	43.2 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	7.33 kg

Packaging content
Cables included	AC, USB Type-C
User guide
Rack mount kit

Packaging data
Included power plug types	EU, NA, UK

Sustainability
Sustainability compliance

Certificates
Compliance certificates	BSMI, CCC, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD)
