10/100/1000Mbps,Flow control, Full duplex capability,Auto-uplink

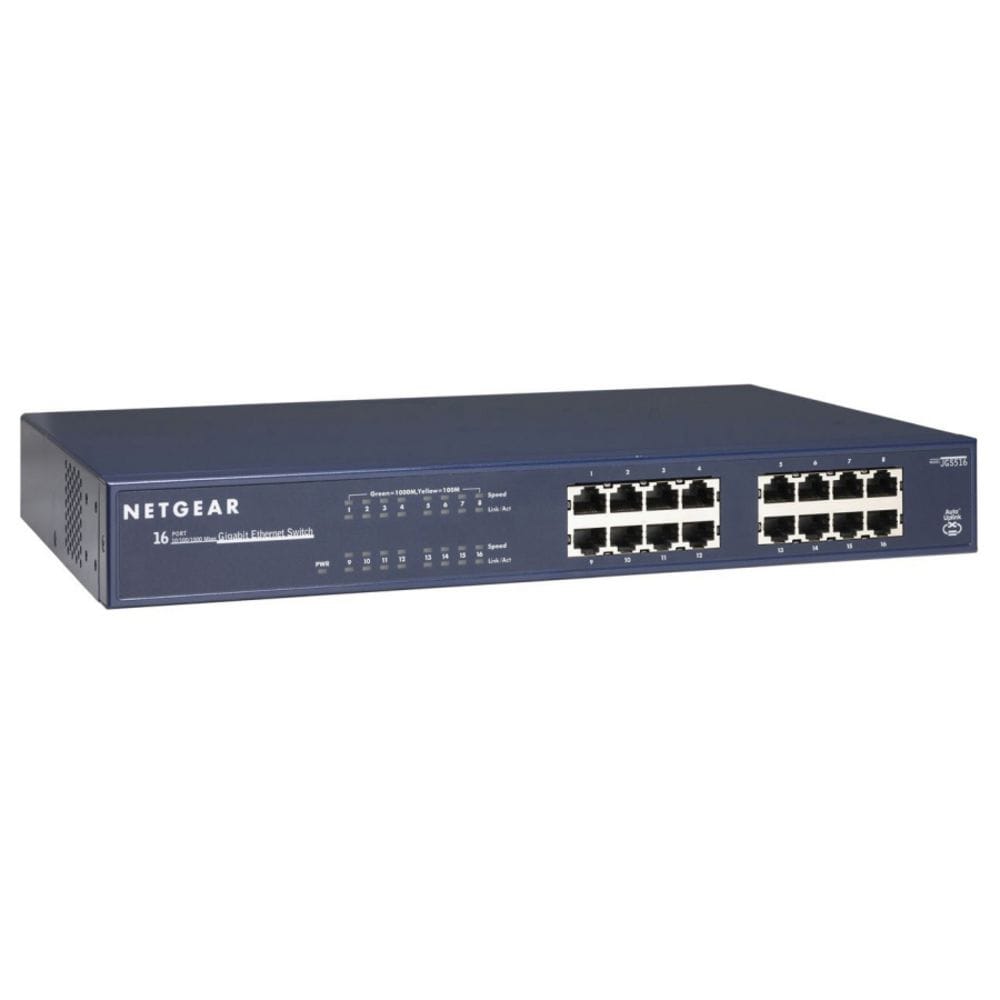

NETGEAR's JGS516 Gigabit Switch gives your office network a megaboost of speed and capacity that is within your budget. With up to 48 Gbps of bandwidth, this 16-port switch can blast 2000 Mbps per port while its affordable prices enable you to put it everywhere. Use it to take Gigabit Ethernet directly to the desktop! Standards-based for easy integration of 10, 100, and 1000 Mbps devices, this unmanaged, rack-mountable switch feature 10/100/1000 automatic speed and full/half-duplex sensing plus Auto Uplink on every port. Users can take advantage of its ability to deliver large amounts of multimedia, image, and video information in no time at all. Ideal for workgroups, labs, departments, or growing offices looking for outstanding performance at a low price.
- Powerful, non-blocking backplane
- Affordable enough for desktop connections
Features:
- High capacity
- 1000 Mbps speeds and a switching capacity of up to 48 Gbps meet the performance needs for even the most bandwidth-hungry applications. The JGS500 series are perfect for graphics, multimedia, and other applications that have to move large files across the network quickly.
- Affordable
- Aggressive prices enable your workgroup, department or small network to ramp up to Gigabit speeds, even all the way to the desktop.
- Flexible
- Each port is equipped with automatic speed and duplex sensing. Standards-based design makes it easy to combine 10, 100, and 1000 Mbps devices on your network.
- Convenient
- Easy to set up and easy to use, these unmanaged switches have per port LED's for effortless network monitoring.
Main Specifications:
- Product Description: NETGEAR ProSafe JGS516 - switch - 16 ports - unmanaged - desktop
- Device Type: Switch - 16 ports - unmanaged
- Enclosure Type: Desktop
- Ports: 16 x 10/100/1000
- MAC Address Table Size: 8K entries
- Features: Flow control, full duplex capability, auto-sensing per device, auto-uplink (auto MDI/MDI-X)
- Compliant Standards: IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.3x
- Power: AC 120/230 V ( 50/60 Hz )
- Dimensions (WxDxH): 33 cm x 20.7 cm x 4.3 cm
- Weight: 2.4 kg
- Manufacturer Warranty: NETGEAR lifetime warranty
Specifications:
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 16 |
| Power connector | DC-in jack |
| Data transmission | |
| Jumbo frames support |
 |
| Packet buffer memory | 2 MB |
| Protocols | |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
| Design | |
| Stackable Devices can be placed on top of each other. |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Blue |
| Certification | CE mark, commercial FCC Part 15 Class A VCCI Class A EN 55022 (CISPR 22), Class A, EN 50082-1, EN 55024 C-Tick |
| Performance | |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 309000 h |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 25 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Operational conditions | |
| Operating temperature (T-T) | 32 - 122 °F |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.62 kg |
| Other features | |
| Latency Latency is the time needed to forward a packet of data. | <20µs |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 43 x 330 x 207 mm |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Bandwidth | 32 Gbit/s |
| Non-operating relative humidity (non-condensing) Range of relative humidity (non-condensing) in which a non-operating product can be stored. | 10 - 95% |
| Power requirements | 100-240VAC/50-60 Hz |
| Connectivity LEDs |
|
| Weight (imperial) | 1.66 kg (3.67 lbs) |
| SKU | 217777 |
| MPN | JGS516AU |
| Brand | Netgear |
| Product Condition | Brand New/Unused |
