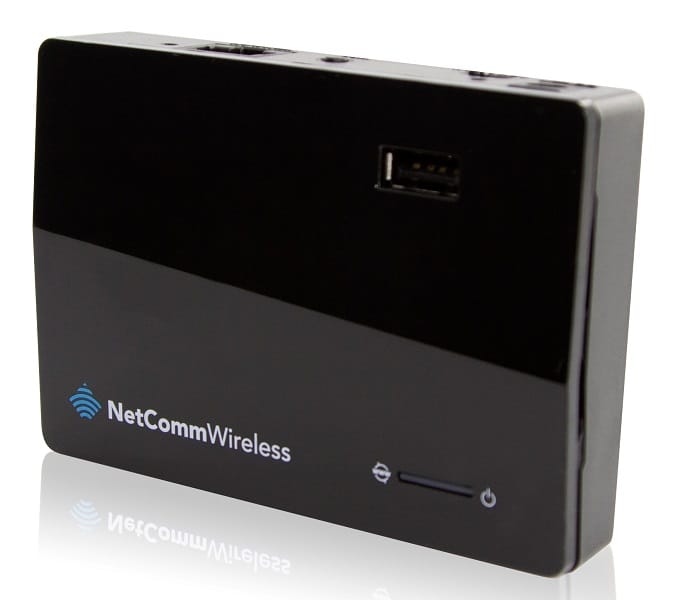

Netcomm 3G/4G AC Mobile Router Dual Band/1XGBIT/USB2/Hotspot (LS)
Perfect for
Turning your 3G/4G USB modem
into a WiFi hotspot
Sharing your 3G/4G USB modem
with other devices
When you're traveling or on the move
Sharing your single mobile
broadband connection with multiple
WiFi devices
Utilising the Ethernet port to connect
to ADSL or Fibre broadband
KEY FEATURES
Stylish and compact mobile broadband router
Creates an instant WiFi hotspot to share the Internet connection of a 3G/4G USB
modem or DSL/Cable modem
Supports 802.11ac WiFi with data speeds up to 433Mbps1
Supports 802.11n WiFi standard with data speeds up to 300Mbps1
1 x Gigabit Ethernet port that can operate as a WAN or LAN port
USB 2.0 host port supports 3G and 4G modems
Supports file sharing from a USB hard drive
Ensures connectivity and business continuity with auto Internet failover from WAN
port to 3G/4G USB modem
SPECIFICATIONS
PACKAGE INCLUDES
3G/4G WiFi Router
Power adapter
Printed Quick Start Guide
Ethernet Cable (RJ-45)
Wireless Security Card
Warranty Card
ENVIRONMENTAL AND PHYSICAL
Operating temperature: 0-40oC, Humidity 10%-90
non-condensing
Storage temperature: -10-70oC, Humidity: 0%-95%
non-condensing
Dimension: 98mm (L) x 68mm (W) x 20.5mm(H)
DC Input Voltage 5V/2A
DEVICE INTERFACE
1 x USB 2.0 port - for external 3G/4G modem /
file sharing
1 x 10/100/1000 Mbps switchable WAN/LAN port
1 x WPS button
1 x Reset button
1 x 3G-WAN switch
1x1 Internal WiFi (IEEE 802.11ac)
2x2 Internal WiFi (IEEE802.11b/g/n)
2 x LED (Power/internet)
ETHERNET WAN
1 x switchable WAN/LAN port (10/100/1000 Mbps)
PPPoE, DHCP client, Static IP, PPTP, L2TP
Auto-reconnect, dial-on demand, manual connect
WIRELESS WAN
1x USB 2.0 port - for external 3G/4G modem
WIRELESS
Dual band con-current WiFi (2.4GHz/5GHz)
2.4GHz band IEEE 802.11n. Backwards compatible with
IEEE 802.11b/g/n
5Ghz band IEEE 802.11ac. Backwards compatible with
IEEE 802.11a/n
2.4GHz & 5GHz Concurrent WiFi
Turning your 3G/4G USB modem
into a WiFi hotspot
Sharing your 3G/4G USB modem
with other devices
When you're traveling or on the move
Sharing your single mobile
broadband connection with multiple
WiFi devices
Utilising the Ethernet port to connect
to ADSL or Fibre broadband
KEY FEATURES
Stylish and compact mobile broadband router
Creates an instant WiFi hotspot to share the Internet connection of a 3G/4G USB
modem or DSL/Cable modem
Supports 802.11ac WiFi with data speeds up to 433Mbps1
Supports 802.11n WiFi standard with data speeds up to 300Mbps1
1 x Gigabit Ethernet port that can operate as a WAN or LAN port
USB 2.0 host port supports 3G and 4G modems
Supports file sharing from a USB hard drive
Ensures connectivity and business continuity with auto Internet failover from WAN
port to 3G/4G USB modem
SPECIFICATIONS
PACKAGE INCLUDES
3G/4G WiFi Router
Power adapter
Printed Quick Start Guide
Ethernet Cable (RJ-45)
Wireless Security Card
Warranty Card
ENVIRONMENTAL AND PHYSICAL
Operating temperature: 0-40oC, Humidity 10%-90
non-condensing
Storage temperature: -10-70oC, Humidity: 0%-95%
non-condensing
Dimension: 98mm (L) x 68mm (W) x 20.5mm(H)
DC Input Voltage 5V/2A
DEVICE INTERFACE
1 x USB 2.0 port - for external 3G/4G modem /
file sharing
1 x 10/100/1000 Mbps switchable WAN/LAN port
1 x WPS button
1 x Reset button
1 x 3G-WAN switch
1x1 Internal WiFi (IEEE 802.11ac)
2x2 Internal WiFi (IEEE802.11b/g/n)
2 x LED (Power/internet)
ETHERNET WAN
1 x switchable WAN/LAN port (10/100/1000 Mbps)
PPPoE, DHCP client, Static IP, PPTP, L2TP
Auto-reconnect, dial-on demand, manual connect
WIRELESS WAN
1x USB 2.0 port - for external 3G/4G modem
WIRELESS
Dual band con-current WiFi (2.4GHz/5GHz)
2.4GHz band IEEE 802.11n. Backwards compatible with
IEEE 802.11b/g/n
5Ghz band IEEE 802.11ac. Backwards compatible with
IEEE 802.11a/n
2.4GHz & 5GHz Concurrent WiFi
| WAN connection | |
| Ethernet WAN |
 |
| DSL WAN Whether or not the product features a DSL WAN (Wide Area Network) connection option. |
|
| SIM card slot Whether the device features a SIM card slot. |
 |
| 3G/4G USB modem compatibility |
|
| Wireless LAN features | |
| Wi-Fi band The frequency bands the product features. | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard. | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 733 Mbit/s |
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN interface type The characteristics of the Ethernet LAN interface. | Gigabit Ethernet |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Static route |
|
| Mobile network | |
| 3G Third generation of mobile telecommunications technology, 3G finds application in wireless voice telephony, mobile Internet access, fixed wireless Internet access, video calls and mobile TV. |
|
| 4G Fourth generation of mobile phone mobile communication technology standards. A 4G system provides mobile ultra-broadband Internet access, for example to laptops with USB wireless modems, to smartphones, and to other mobile devices. Conceivable applications include amended mobile web access, IP telephony, gaming services, high-definition mobile TV, video conferencing, 3D television, and cloud computing. |
|
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| Management features | |
| Quality of Service (QoS) support |
|
| Reset button |
|
| WPS push button |
|
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | WDS, WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Protocols | |
| DHCP client Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network. |
|
| Universal Plug and Play (UPnP) |
|
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Grey |
| LED indicators | Power |
| Product type The sub-category of the product. | Tabletop router |
| Packaging content | |
| Cables included | DC, LAN (RJ-45) |
| Warranty card |
|
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| Power | |
| Power source type What the power source is. | DC |
| Output voltage | 5 V |
| Output current | 2 A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 68 mm |
| Depth The distance from the front to the back of something. | 98 mm |
| Height The measurement of the product from head to foot or from base to top. | 20 mm |
| SKU | 560497 |
| MPN | 4GM3W |
| Brand | Netcomm |
| Product Condition | Brand New/Unused |
| Product Use | General |
