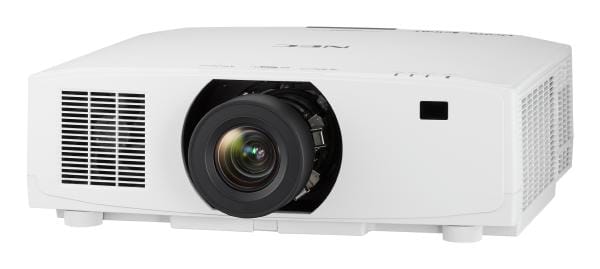

NEC PV800UL Laser Projector

Projector
Supported aspect ratios The aspect ratio is the ratio of the width of an image to its height. The supported aspect ratios are the aspect ratios that can be shown by the device.	16:10
Smart projector
Screen size compatibility The different screen sizes which the device can work with.	1016 - 12700 mm (40 - 500")
Projection distance The maximum length at which an image can be projected.	0.7 - 50.9 m
Projector brightness	8000 ANSI lumens
Projection technology	3LCD
Projector native resolution	WUXGA (1920x1200)
Contrast ratio (typical) The difference in light intensity between the brightest white and the darkest black.	3000000:1
Native aspect ratio The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio.	16:10
Keystone correction, horizontal	-30 - 30°
Keystone correction, vertical	-30 - 30°
Vertical synchronization (min)	50000 kHz
Vertical synchronization (max)	120000 kHz

Light source
Light source type	Lamp
Service life of light source	20000 h
Light source brightness	8300 lm

Lens system
Focus	Manual
Zoom capability The amount that the camera lens can zoom.
Zoom type	Manual
Horizontal lens shift range	-20 - 20%
Vertical lens shift range	-50 - 10%

Video
Analog signal format system The supported protocols for exchanging analog signals.	Not supported
Full HD Full High Definition (HD) means that a display supports a resolution of 1920 x 1080 pixel, and has a digital TV connection.
3D The device can be used with 3D technology.
Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.	1280 x 768 (WXGA), 1920 x 1200 (WUXGA), 3840 x 2160

Ports & interfaces
HDMI connector type	Full-size
HDBaseT port
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.	1
USB 2.0 Type-A ports quantity	1
Serial interface type	RS-232
PC Audio in The socket (port) for the PC audio input.
PC Audio out
PC in (D-Sub) The socket (port) to receive input from a PC via a D-sub, which is a connector with a characteristic D-shaped metal shield.
VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM.	1
HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.	4
DVI port Digital Visual Interface (DVI) is a video display interface to connect a video source to a display device, such as a computer monitor.

Network
Smart TV Smart TV features access to a large number of channels that offer TV programs, movies, and music without the need to connect a TV antenna or subscribe to a cable/satellite service. Some smart TVs provide web browsing, gaming, and access to compatible media content stored on computers.
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	1
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.

Storage
Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards.

Features
Interactive
HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.
Noise level The amplitude level of the undesired background noise, usually measured in decibels (db).	42 dB
Certification	CE; EAC; ErP; RoHS; TUEV Type Approved

Multimedia
Built-in speaker(s) The device contains speaker(s) to produce sound.

Design
Market positioning Under which category can the device be positioned in the market, e.g. camera phone.	Presentation
Product type The sub-category of the product.	Standard throw projector
Product colour The colour e.g. red, blue, green, black, white.	White

Display
Built-in display A display which is part of the product, so you do not need to attach another display.

Power
Power source What is providing power for the product e.g. mains electricity.	AC
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.	467 W
Power consumption (standby) The amount of electricity that is consumed when the product is on standby.	0.5 W
AC input voltage The voltage of the AC electricity that is inputted into the product.	100-240 V
AC input frequency	50 - 60 Hz

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-10 - 50 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	20 - 80%

Weight & dimensions
Width The measurement or extent of something from side to side.	499 mm
Depth The distance from the front to the back of something.	407 mm
Height The measurement of the product from head to foot or from base to top.	164 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	11.2 kg

Packaging content
Remote control included Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance.
Remote control type	IR
Cables included	Power
Manual

Logistics data
Quantity per pack	1 pc(s)
