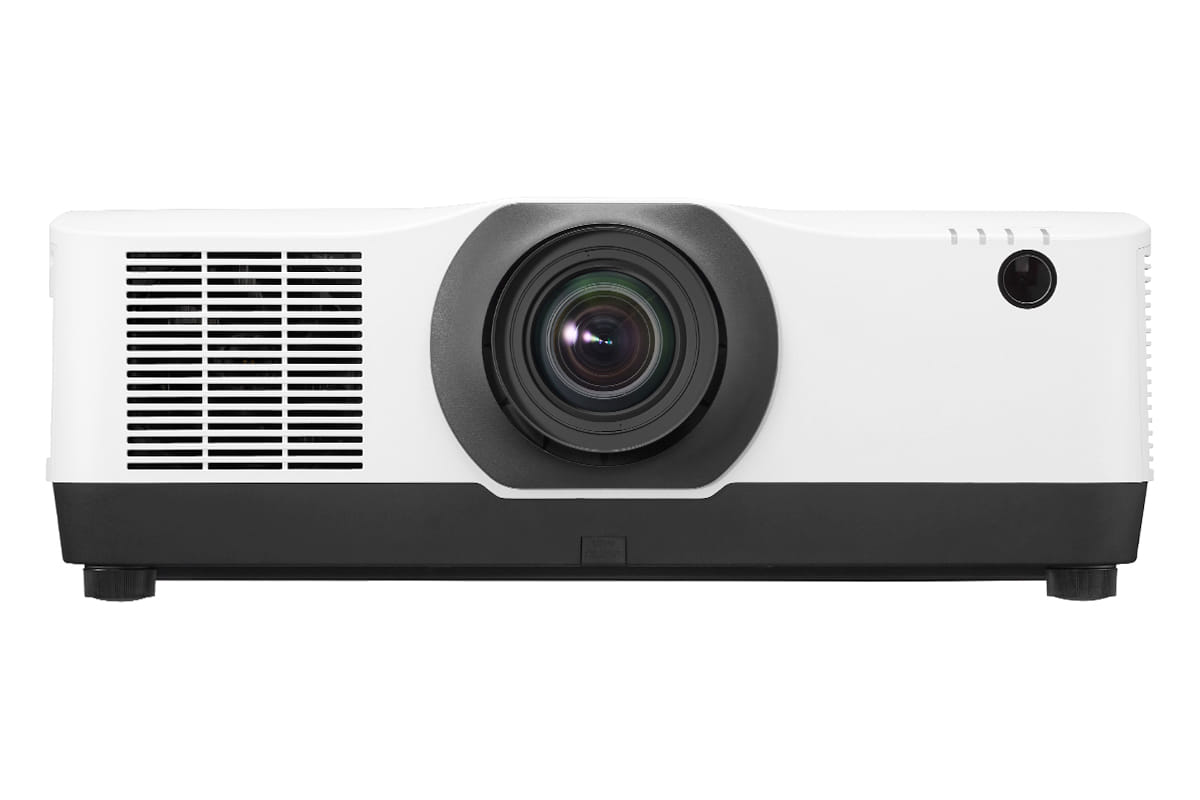

NEC PA804ULG WUXGA 8200 ANSI Lumens Combining Laser Projector
Item No:
716945
MPN:
PA804UL-WG
$11,010.87
Payment options
Shipping Information
- ETA 06/05/2025 for shipping
- Pre-order available, shipping ETA 06/05/2025
Store Availability
- ETA 06/05/2025 at Bankstown Store
- ETA 06/05/2025 at Castle Hill Store
- ETA 06/05/2025 at Northmead Store
Shipping Estimate
NEC PA804UL WG, 8200 ANSI lumens, 3LCD, WUXGA (1920x1200), 3000000:1, 16:10, 1016 12700 mm (40 500")
A new class of silent projection
Now even larger spaces can benefit from NEC s innovation in super silent technology with the 8,200 lumens PA804UL laser projector, ensuring all attention is focused on the stunning image delivery.
Featuring unprecedented White Point performance, factory pre calibrated for the perfect white, 12 bit colour signal processing and wide colour space, the audience will experience extraordinarily vivid colour saturation and contrast levels.
With the newly designed sealed optical engine there is no possibility of dust contaminating the LCD panels for long term picture stability and brilliant colour brightness. What s more, with our unique filterless LCD projector design and no lamp replacement, service costs are dramatically reduced for a low cost of ownership and up to 20,000 hours life time.
Fully compatible with the previous generation lamp based PA Series mechanical lenses, NEC customers can easily make the transition to benefit from the latest laser technology. The PA804UL is a professional installation projector featuring advanced installation capabilities as demanded by higher education, leisure and museum applications.
Now even larger spaces can benefit from NEC s innovation in super silent technology with the 8,200 lumens PA804UL laser projector, ensuring all attention is focused on the stunning image delivery.
Featuring unprecedented White Point performance, factory pre calibrated for the perfect white, 12 bit colour signal processing and wide colour space, the audience will experience extraordinarily vivid colour saturation and contrast levels.
With the newly designed sealed optical engine there is no possibility of dust contaminating the LCD panels for long term picture stability and brilliant colour brightness. What s more, with our unique filterless LCD projector design and no lamp replacement, service costs are dramatically reduced for a low cost of ownership and up to 20,000 hours life time.
Fully compatible with the previous generation lamp based PA Series mechanical lenses, NEC customers can easily make the transition to benefit from the latest laser technology. The PA804UL is a professional installation projector featuring advanced installation capabilities as demanded by higher education, leisure and museum applications.
| Projector | |
| Screen size compatibility The different screen sizes which the device can work with. | 1016 - 12700 mm (40 - 500") |
| Projection distance The maximum length at which an image can be projected. | 0.7 - 50.9 m |
| Projector brightness | 8200 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) The difference in light intensity between the brightest white and the darkest black. | 3000000:1 |
| Native aspect ratio The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio. | 16:10 |
| Projector brightness (economic mode) | 7500 ANSI lumens |
| Horizontal scan range | 15 - 153 kHz |
| Vertical scan range | 48 - 120 Hz |
| Keystone correction, horizontal | -40 - 40° |
| Keystone correction, vertical | -40 - 40° |
| Light source | |
| Light source type | Laser |
| Service life of light source | 20000 h |
| Lens system | |
| Focus | Auto/Manual |
| Zoom capability The amount that the camera lens can zoom. |
 |
| Zoom type | Auto/Manual |
| Horizontal lens shift range | -20 - 20% |
| Vertical lens shift range | -50 - 10% |
| Video | |
| 3D The device can be used with 3D technology. |
|
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 640 x 480 (VGA), 1920 x 1200 (WUXGA), 2048 x 1080, 2560 x 1600 (WQXGA), 4096 x 2160 |
| Supported video modes The video modes that can be displayed by the device. | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Ports & interfaces | |
| DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data. | 1 |
| HDBaseT port |
|
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| USB 2.0 Type-A ports quantity | 1 |
| Audio (L/R) in The two sockets (ports) for receiving left audio signal (white cable) and right audio signal (red cable). | 1 |
| Serial interface type | RJ-45, RS-232 |
| PC Audio in The socket (port) for the PC audio input. |
|
| PC Audio out |
|
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 2 |
| Features | |
| Noise level (economic mode) | 28 dB |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 30 dB |
| Design | |
| Product type The sub-category of the product. | Large venue projector |
| Product colour The colour e.g. red, blue, green, black, white. | Black, White |
| Placement Where the product can be placed e.g. floor, wall. | Desktop |
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | AC |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 615 W |
| Power consumption (standby) The amount of electricity that is consumed when the product is on standby. | 0.28 W |
| Power consumption (economy mode) | 350 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 5 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 599 mm |
| Depth The distance from the front to the back of something. | 490 mm |
| Height The measurement of the product from head to foot or from base to top. | 208 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 24.1 kg |
| Packaging content | |
| Remote control included Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance. |
|
| Remote control type | IR |
| Cables included | AC |
| Manual |
|
| Technical details | |
| Sustainability certificates | CE, ErP, RoHS |
| SKU | 716945 |
| MPN | PA804UL-WG |
| Brand | NEC |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.nec.com.au/ |
