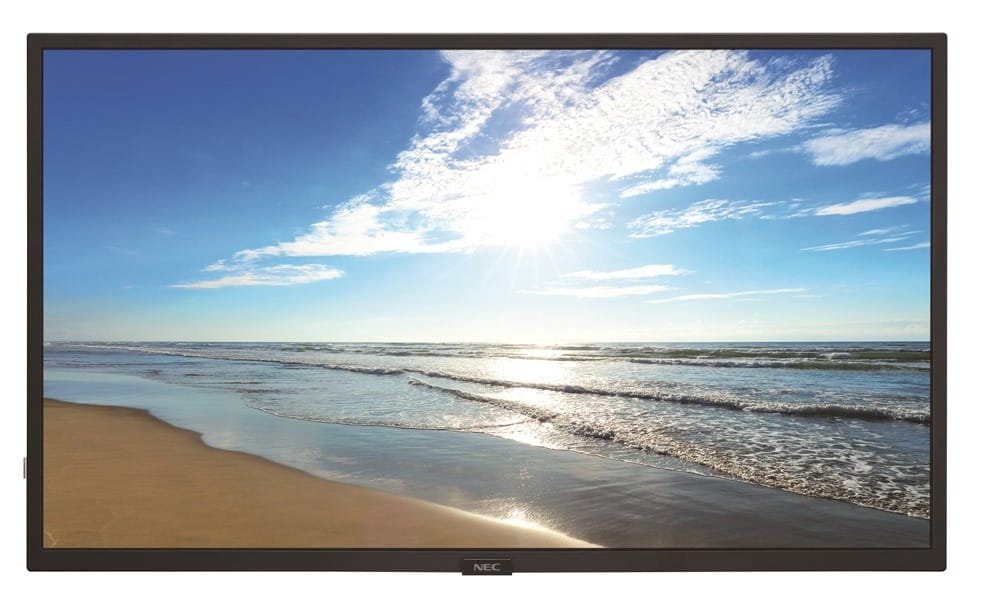

NEC M321 32" Professional Grade Display
Create pixel-perfect imagery with the high-end panel quality of the fully professional NEC M321 large format display. By focusing on customer needs while also offering professional reliability, the M series displays give customers a digital signage display lineup without all the costs. This M series display can support both landscape and portrait orientations while also containing a an anti-glare panel to allow for easy readability for true commercial applications. The new product contains a full metal mechanical chassis, allowing for a more robust design necessary for commercial applications while maintaining the attractive aesthetics that allow the focus of onlookers to be on what matters
Landscape and Portrait orientation allows for flexibility of installation dependent on your needs
Bidirectional and Full External Control allows for easy integration into control systems via LAN or RS232C
450 cd/m2 brightness and HDR compatibility will capture the attention of audience in almost any situation
Integrated Media Player allows for audio, video or image playback via USB
Failover Capabilities with full Input Detect functionality allow peace of mind as the display will automatically switch to a secondary or tertiary source if the primary source fails
Full 3 year commercial warranty to allow for peace of mind and protection of your investment
NaViSet Administrator 2 Free software solution that greatly eases administration and management of larger display device installations
| Display | |
| LED backlighting type Backlighting is the illumination of a screen e.g. LCD (liquid crystal display). There are several types of backlighting with LEDs, e.g. full array, edge lit. | LED |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 81.3 cm (32") |
| Display technology The technology used in the display e.g. plasma, LED. | IPS |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 1920 x 1080 pixels |
| Display brightness Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'. | 450 cd/m² |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | Full HD |
| Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers. |
 |
| Response time The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.) | 8 ms |
| Contrast ratio (typical) The difference in light intensity between the brightest white and the darkest black. | 1100:1 |
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 178° |
| Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance. | 178° |
| Display number of colours | 16.78 million colours |
| Pixel pitch This is the parameter of a picture tube, which specifies the shortest distance between two dots of the same colour. The principle is: the smaller the dot pitch, the better sharpness of image. | 0.364 x 0.364 mm |
| Active display area (W x H) | 698.4 x 392.9 mm |
| Horizontal scan range | 15 - 136 kHz |
| Vertical scan range | 23 - 76 Hz |
| High Dynamic Range (HDR) supported |
 |
| Haze rate | 28% |
| Ports & interfaces | |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 2 |
| DVI port Digital Visual Interface (DVI) is a video display interface to connect a video source to a display device, such as a computer monitor. |
|
| VGA (D-Sub) input ports Sockets in the device for VGA (D-Sub) inputs, which are sockets with 15 holes. The 15-pin VGA connector is found on many video cards, computer monitors, and high definition television sets. | 1 |
| DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data. | 1 |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Number of speaker outputs | 1 |
| RS-232C |
|
| Remote (IR) input | 1 |
| Audio | |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
|
| Number of built-in speakers | 2 |
| RMS rated power RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers. | 10 W |
| Design | |
| Product design The creation of a plan or convention for the construction of an object or a system. | Digital signage flat panel |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| VESA mounting |
|
| Panel mounting interface The product can be used wih VESA mounting interfaces. | 100 x 100,200 x 200 mm |
| Bezel width (bottom) | 1.72 cm |
| Bezel width (side) | 1.19 cm |
| Bezel width (top) | 1.19 cm |
| Performance | |
| Purpose What the product is used for. | Universal |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 40 W |
| Power consumption (standby) The amount of electricity that is consumed when the product is on standby. | 0.5 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| Computer system | |
| Computer system |
|
| Built-in processor Whether or not a processor is built into the device. |
|
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 6.3 kg |
| Width (with stand) | 726.6 mm |
| Depth (with stand) | 267.7 mm |
| Height (with stand) | 476.3 mm |
| Weight (with stand) | 8.2 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 870 mm |
| Package depth The distance from the front to the back of the packaging. | 160 mm |
| Package height The distance from the top to the bottom of the packaging. | 527 mm |
| Package weight Weight of the packaged product. | 9.8 kg |
| Packaging content | |
| Remote control included Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance. |
|
| Batteries included |
|
| Cables included | AC, HDMI |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 80% |
| SKU | 603512 |
| MPN | M321 |
| Brand | NEC |
| Product Condition | Brand New/Unused |
| Screen Size (Inches) | 32.00 Inch |
| Refresh Rate (Hz) | 60Hz |
| Screen Resolution | 1920x1080 (FHD/1080p) |
| Input | DisplayPort / DP, HDMI |
| Product Use | Business |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.nec.com.au/ |
