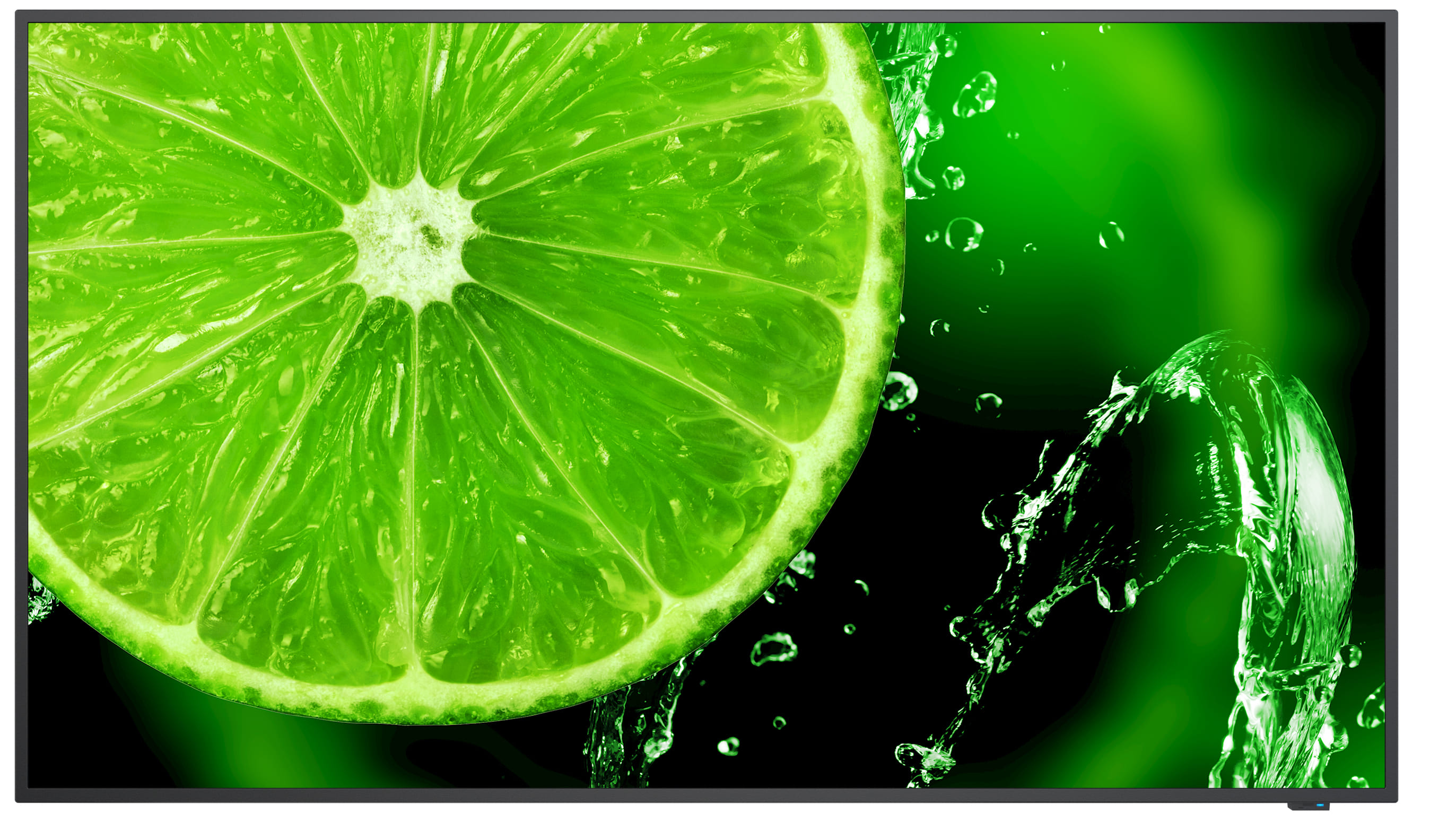

NEC 49" E498 LCD Direct-lit 4K UHD / 3840 x 2160/16:9 /ATSC/NTSC Tuner /VGA, HDMI, LAN, USB-C / Speaker/3 yr WTY
NEC 49" E498 LED Direct-lit 4K UHDCommercial-Grade/ 16:9/ 16/7 Usage/ 3 xHDMI, VGA,Component/ Speakers/ 350 NITS
IPS with Direct LED backlights Screen Size: 49 inches 500/700 NITS Contrast Ratio: 8000:1 Connectivity: 3 x HDMI, 1 x VGA 15-pin D-sub, Component, Composite (shared with Component) Input: 1 x USB 2.0 (MediaPlayer), 1 x USB Type-C (5V/3A power for external devices) Response Time: 8ms Panel Refresh Rate: 60Hz Resolution: 3840 x 2160 No tuner in Australian version EnergyStar 8.0
Display
LED backlighting type
Backlighting is the illumination of a screen e.g. LCD (liquid crystal display). There are several types of backlighting with LEDs, e.g. full array, edge lit.
Direct-LED
Display diagonal
Size of the display for this product, measured diagonally, usually in inches.
124.5 cm (49")
Display technology
The technology used in the display e.g. plasma, LED.
IPS
Display resolution
The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image.
3840 x 2160 pixels
Display brightness
Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'.
350 cd/m²
HD type
Type of supported High Definition (e.g. Full HD, 4K Ultra HD).
4K Ultra HD
Native aspect ratio
The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio.
16:9
Response time
The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.)
8 ms
Contrast ratio (typical)
The difference in light intensity between the brightest white and the darkest black.
1200:1
Viewing angle, horizontal
Maximum horizontal angle at which a display can be viewed with acceptable visual performance.
178°
Viewing angle, vertical
Maximum vertical angle at which a display can be viewed with acceptable visual performance.
178°
Pixel pitch
This is the parameter of a picture tube, which specifies the shortest distance between two dots of the same colour. The principle is: the smaller the dot pitch, the better sharpness of image.
0.28 x 0.28 mm
Active display area (W x H)
1073.8 x 604 mm
Display diagonal (metric)
This is the size of the display screen, measured diagonally.
123.2 cm
Horizontal scan range
15 - 136 kHz
Vertical scan range
24 - 75 Hz
High Dynamic Range (HDR) supported
High Dynamic Range (HDR) technology
Hybrid Log-Gamma (HLG)
Native refresh rate
60 Hz
Haze rate
1%
Ports & interfaces
HDMI ports quantity
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.
3
VGA (D-Sub) input ports
Sockets in the device for VGA (D-Sub) inputs, which are sockets with 15 holes. The 15-pin VGA connector is found on many video cards, computer monitors, and high definition television sets.
1
USB port
The device features a socket into which a USB cable can be plugged.
USB ports quantity
2
USB version
Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one.
2.0
Ethernet LAN
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Ethernet LAN data rates
The different speed levels of the Ethernet LAN connection.
100 Mbit/s
Composite video in
The socket (port) for the composite video input (white cable).
1
Component video (YPbPr/YCbCr) in
The number of sockets (ports) for RF (radio frequency) connections into the product.
1
RS-232 interface
RS-232C
Remote (IR) input
1
Audio
Built-in speaker(s)
The device contains speaker(s) to produce sound.
Number of built-in speakers
2
RMS rated power
RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers.
20 W
Design
Placement supported
Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.
Indoor
Orientation
Horizontal
Product colour
The colour e.g. red, blue, green, black, white.
Black
VESA mounting
Panel mounting interface
The product can be used wih VESA mounting interfaces.
400 x 200 mm
Bezel width (bottom)
1.39 cm
Bezel width (side)
1.25 cm
Bezel width (top)
1.25 cm
Performance
Hybrid Log-Gamma (HLG)
Ambient light sensor
Operating hours (hours/days)
16/7
Power
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
109 W
Power consumption (standby)
The amount of electricity that is consumed when the product is on standby.
2 W
Energy efficiency class (SDR)
G
Energy efficiency class (HDR)
G
Energy consumption (SDR) per 1000 hours
77 kWh
Energy consumption (HDR) per 1000 hours
100 kWh
AC input voltage
The voltage of the AC electricity that is inputted into the product.
100-240 V
AC input frequency
50/60 Hz
Computer system
Video formats supported
The type of video formats that can be used by this device.
Audio formats supported
The audio formats which this device or software can read/use e.g. MP3, MP4.
AAC,LPCM,MP3,WMV
Image formats supported
The type of image files that the device can use/display e.g. gif, JPEG (jpg).
JPG
Weight & dimensions
Width
The measurement or extent of something from side to side.
1102.8 mm
Depth
The distance from the front to the back of something.
71.6 mm
Height
The measurement of the product from head to foot or from base to top.
608 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
12.4 kg
Packaging content
Remote control included
Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance.
Batteries included
Cables included
AC, HDMI
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Operating relative humidity (H-H)
10 - 80%
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-10 - 60 °C
Storage relative humidity (H-H)
5 - 85%
Certificates
Certification
EMC Class B; Energy Star 8; FCC; PSB; RCM; TÜV S; UL/C-UL; VCCI
