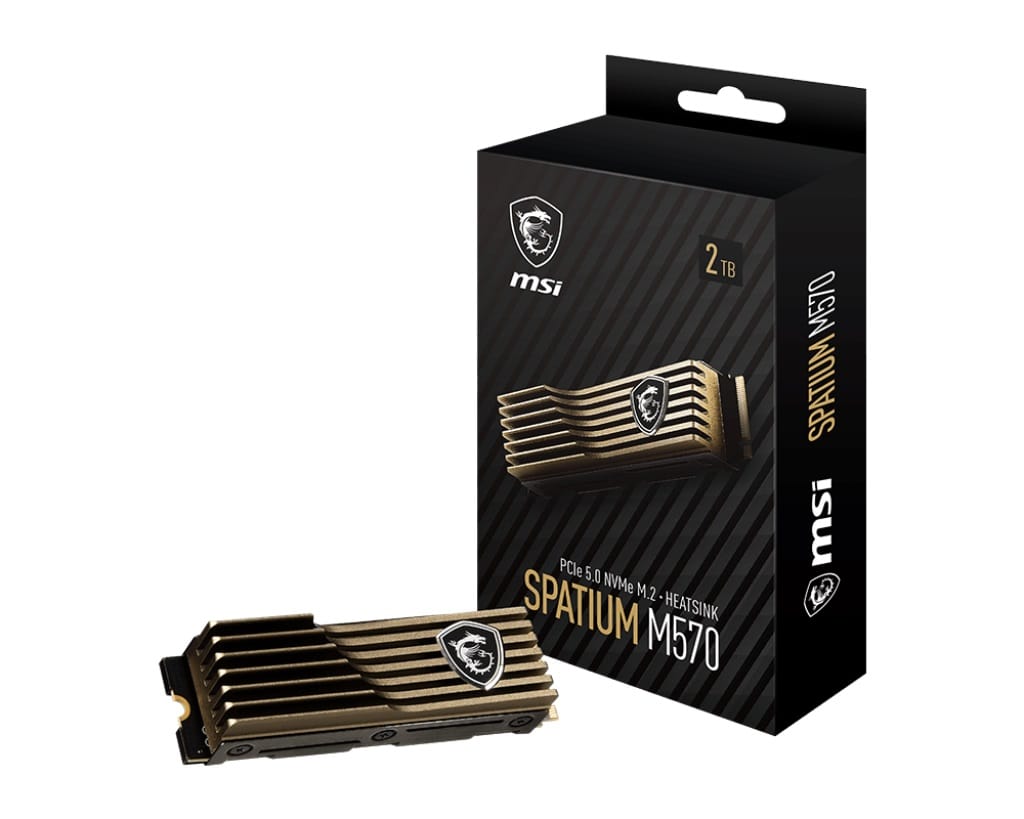

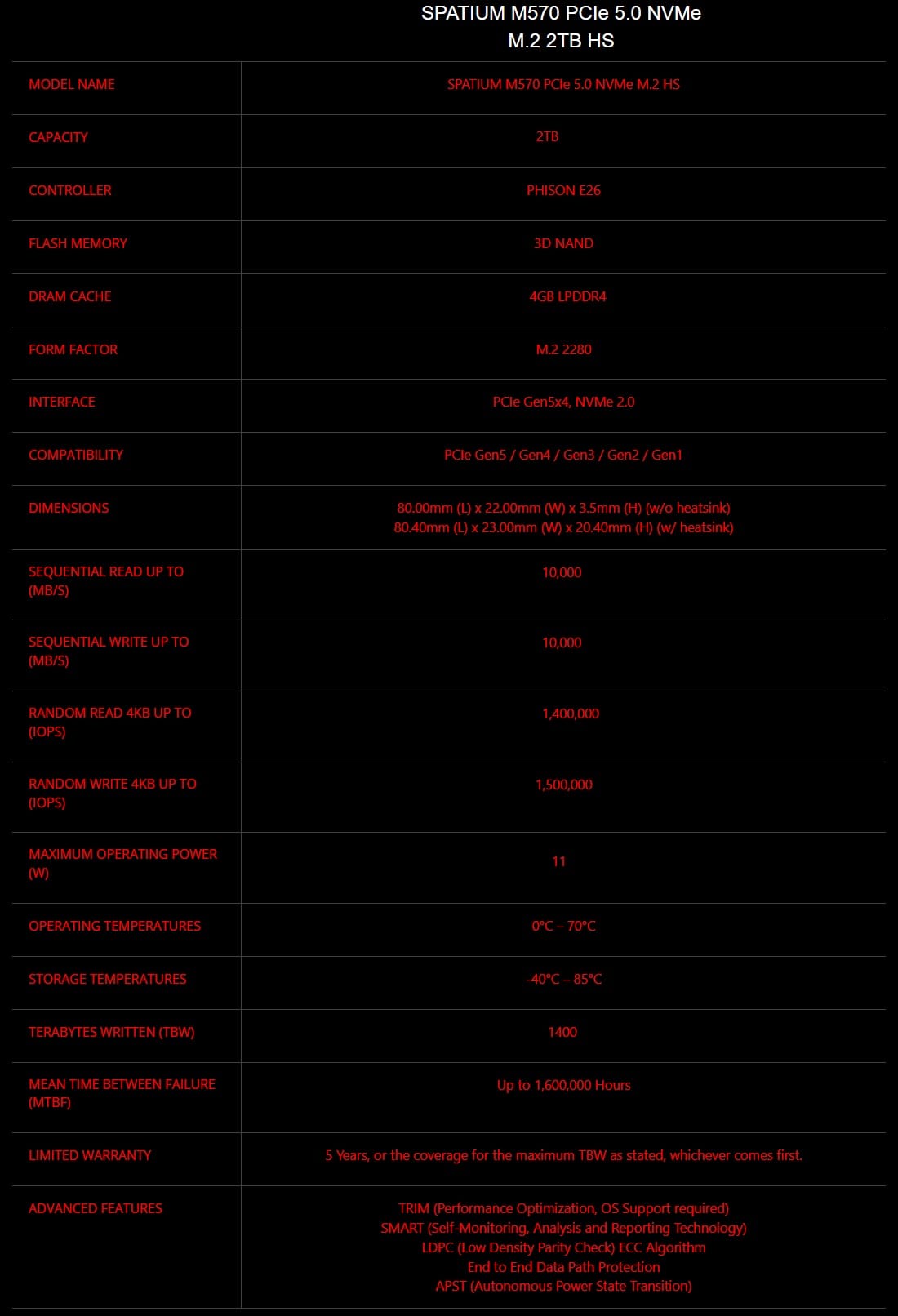

MSI SPATIUM M570 HS 2TB PCIe 5.0 NVMe M.2 SSD - Controller: PHISON E26 - Flash Memory: 3D Nand - Form Factor: M.2 2280 - Interface: PCIe Gen5x4, NVMe 2.0 - Dimensions: 80.40mm (L) x 23.00mm (W) x 20.40mm (H) (w/ heatsink) - MTBF: Up to 1,600,000 Hours - DRAM Cache: 4GB LPDDR4 - SQL Read: Up to 10000MB/s - SQL Write: Up to 10000MB/s - TBW: 1400
| Features | |
| NVMe version | 2.0 |
| SSD capacity The Solid State Drive's data storage capacity. | 2 TB |
| SSD form factor The size of the solid-state drive, given in inches | M.2 |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | PCI Express 4.0 |
| NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices. |
 |
| Memory type Type of memory in the device e.g. DDR3, SRAM (Static RAM). | 3D NAND |
| Component for What this product is used as a part of (component for). | PC/Laptop |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Read speed The speed at which a device can read data. | 10000 MB/s |
| Write speed The speed at which a device can write data. | 10000 MB/s |
| Random read (4KB) | 1400000 IOPS |
| Random write (4KB) | 1500000 IOPS |
| Controller type | Phison E26 |
| PCI Express interface data lanes | x4 |
| S.M.A.R.T. support |
|
| TRIM support |
|
| ECC ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention. |
|
| End-to-End Data Protection |
|
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 1600000 h |
| TBW rating | 1400 |
| Packaging data | |
| Package type The type of product package e.g. box. | Box |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| Other features | |
| Warranty period | 5 year(s) |
| SKU | 726020 |
| MPN | SPATIUM M570 2TB HS |
| Brand | MSI |
| Product Condition | Brand New/Unused |
| Drive Form Factor | M.2 |
| Connection Interface | PCIe Gen 5 NVMe M.2 |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://au.msi.com/ |
