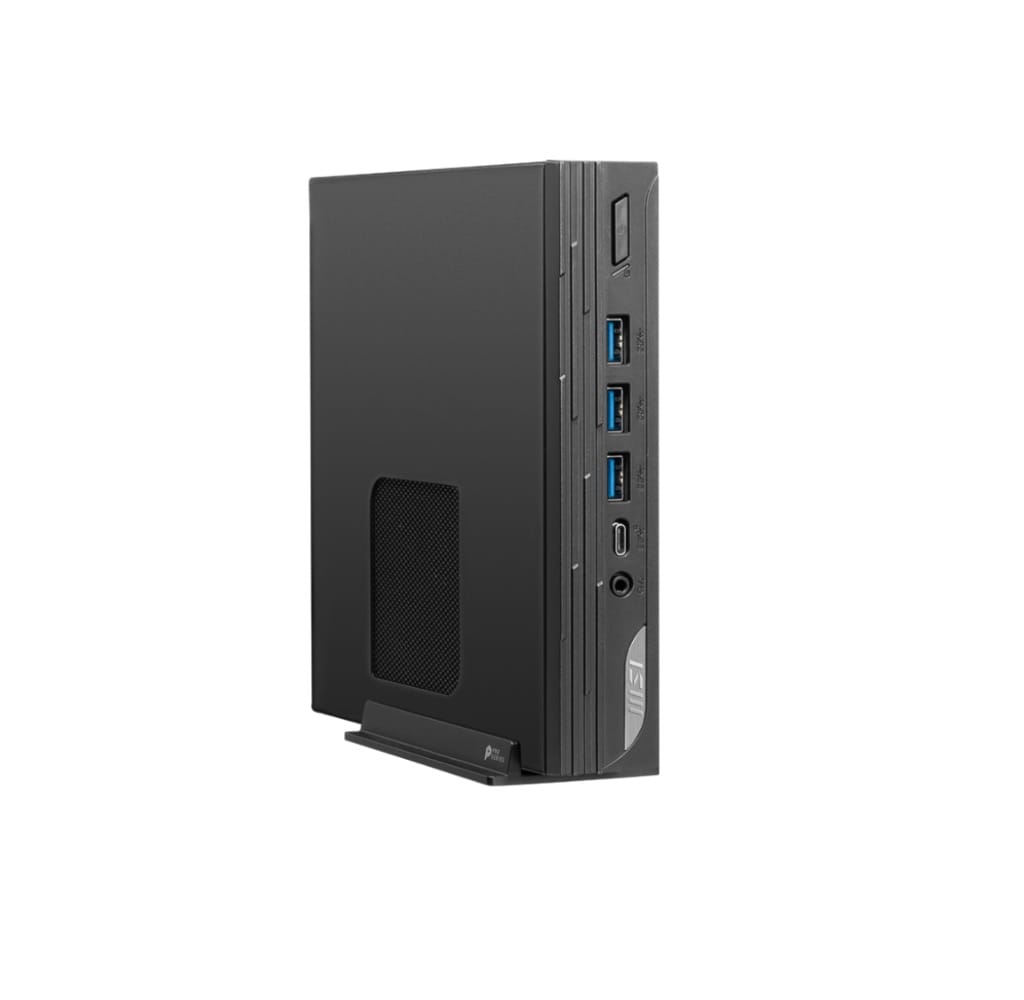

MSI PRO DP10 13M-020BAU Barebone Mini i5-1340P

Processor
Processor manufacturer The manufacturer that produced the processor.	Intel
Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.	Intel® Core™ i5
Processor generation	13th gen Intel® Core™ i5
Processor model The model number for the processor in a computer.	i5-1340P
Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).	12
Processor threads	16
Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded.	4.6 GHz
Performance cores	4
Efficient cores	8
Performance-core Max Turbo Frequency	4.6 GHz
Efficient-core Max Turbo Frequency	3.4 GHz
Processor cache	12 MB
Processor cache type	Smart Cache
Configurable TDP-down	20 W
Processor base power	28 W
Maximum turbo power	64 W

Memory
Internal memory A computer's memory which is directly accessible to the CPU.	16 GB
Maximum internal memory The maximum internal memory which is available in the product.	64 GB
Internal memory type The type of internal memory such as RAM, GDDR5.	DDR4-SDRAM
Memory slots Number and type of memory expansion slots, including connector and memory module descriptions.	2x SO-DIMM
Memory clock speed The frequency at which the memory (e.g. RAM) runs.	3200 MHz

Storage
Total storage capacity The total amount of data that can be stored on the device.	1 TB
Storage media Used for the storage of data e.g. HDD (hard disk drive), SSD (solid-state drive).	SSD
Optical drive type An optical drive uses laser to read optical discs such as CDs, DVDs and Blu-Ray. Some types of optical drive are: CD ROM drive, CR-RW (CD writer) drive, DVD-ROM.
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity The Solid State Drive's data storage capacity.	1 TB
SSD interface The type of interface(s) with which the Solid State Drive is connected to other hardware.	PCI Express 4.0
NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices.

Graphics
Discrete graphics card
On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.
Discrete graphics card model A graphics adapter (often known as a video card) generates images for a display. A discrete graphics adapter plugs into the motherboard, and usually produces much better graphics than an integrated graphics adapter. There are various models of discrete graphics adapters.	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel Iris Xe Graphics
On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.	Intel Iris Xe Graphics

Network
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard.	Wi-Fi 6E (802.11ax)
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	Wi-Fi 6E (802.11ax)
Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.
Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).	5.3

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.	1
Intel® Thunderbolt 4
Thunderbolt 4 ports quantity	1
VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM.	1
HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.	1
HDMI version	2.0
DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.	1
DisplayPort version	1.4
Microphone in The socket where a microphone is connected to the device.
Headphone outputs Number of sockets /ports where headphones are connected.	1
Combo headphone/mic port

Design
Chassis type The type of rigid framework onto which is the hosuing for device components.	Mini PC
Volume The amount of a substance contained.	1.1 L
Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.	Horizontal/Vertical
VESA mounting
Product colour The colour e.g. red, blue, green, black, white.	Black

Performance
Market positioning Under which category can the device be positioned in the market, e.g. camera phone.	Business
Motherboard chipset The chipset connects the microprocessor to the rest of the motherboard.	Intel SoC
Product type The sub-category of the product.	Mini PC

Software
Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.	Windows 11 Home

Processor special features
CPU configuration (max)	1

Power
Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable.	120 W

Certificates
Certification	FCC, CB/CE, UL & CUL, VCCI, RCM

Weight & dimensions
Width The measurement or extent of something from side to side.	178 mm
Depth The distance from the front to the back of something.	34.5 mm
Height The measurement of the product from head to foot or from base to top.	179 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	1.1 kg
Package weight Weight of the packaged product.	2.1 kg

Packaging content
VESA mount included

Display
Display included This product includes a display.
