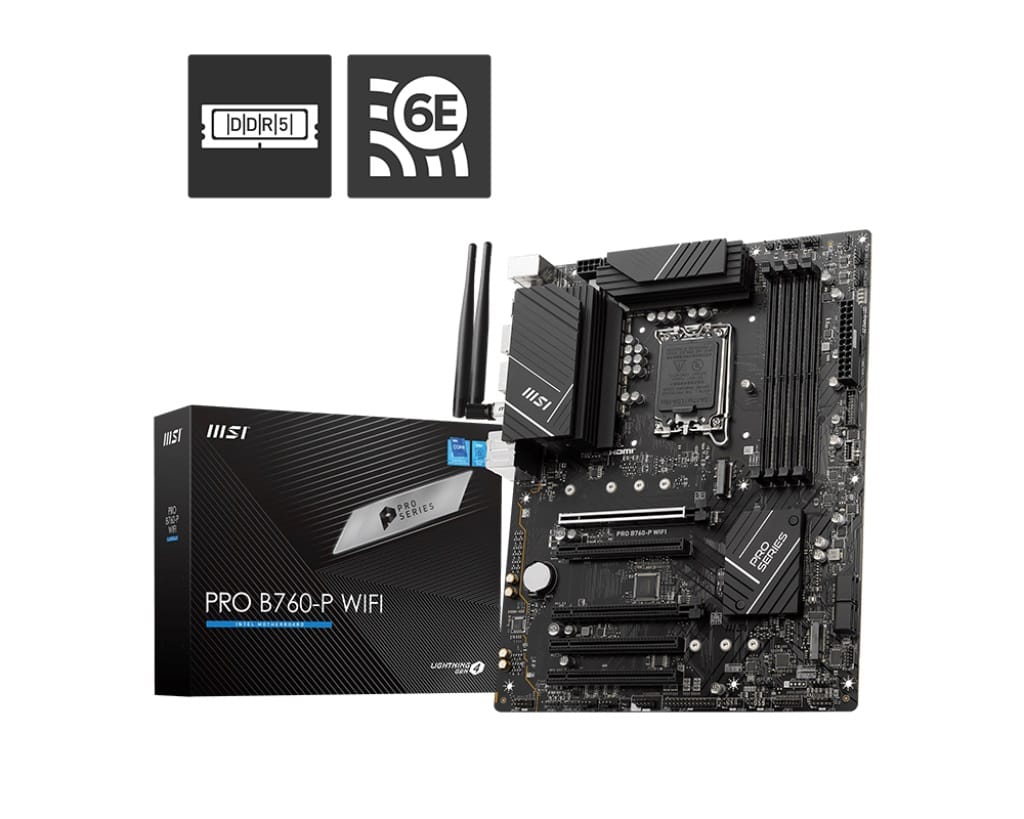

INTEL B760; 4x DDR5, Maximum Memory Capacity 192GB; Supports 12th/13th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket; Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost; Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience; High Quality PCB: 6-layer PCB made by 2oz thickened copper; Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | Intel |
| Processor socket Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering. | LGA 1700 |
| Compatible processor series A processor which is compatible with this device, belongs to a 'series' which is part of 'family' e.g Celeron D, Celeron G, Celeron M, or, in some cases, is the same as 'family'. | Intel® Celeron® D, Intel® Celeron® Dual-Core, Intel Celeron E, Intel® Celeron® G, Intel® Celeron® M, Intel® Celeron® N, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i7 Extreme Edition, Intel® Core™ i9, Intel Core i9 Extreme Edition, Intel® Pentium® D, Intel® Pentium® Dual-Core, Intel® Pentium® Extreme Edition, Intel Pentium G, Intel® Pentium® Gold, Intel® Pentium® III, Intel® Pentium® M |
| Maximum number of SMP processors | 1 |
| Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. | LGA 1700 |
| Memory | |
| Supported memory types Types of memory which can be used with the product. | DDR4-SDRAM |
| Number of memory slots | 4 |
| Non-ECC |
 |
| Maximum internal memory The maximum internal memory which is available in the product. | 192 GB |
| Storage controllers | |
| Supported storage drive types The type of storage drives the device is compatible with. | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express, SATA |
| RAID support The device uses RAID, which is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. |
|
| RAID levels RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. | 0, 1, 5, 10 |
| Internal I/O | |
| USB 2.0 connectors The end of a cable with a USB 2.0 connector. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), in addition to the "USB 1.x Full Speed" signaling rate of 12 Mbit/s. USB 2.0 connectors are usually colored black. | 8 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors This is a connector (normally attached to a cable) for USB 3.0. USB 3.0 is the second major revision of the Universal Serial Bus (USB) standard for computer connectivity. First introduced in 2008, USB 3.0 adds a new transfer mode called "SuperSpeed," (distinguishable from USB 2.0 by either the blue colour of the port or the initials SS) capable of transferring data at up to 5Gbit/s—more than ten times as fast as the 480 Mbit/s top speed of USB 2.0. | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 3 |
| Number of SATA connectors | 4 |
| Audio connector |
|
| Front panel audio connector |
|
| ATX Power connector (24-pin) |
|
| Power fan connector |
|
| CPU fan connector |
|
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector |
|
| TPM connector |
|
| Rear panel I/O ports | |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 1 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| PS/2 ports quantity The number of PS/2 connectors for keyboards and mice. Its name comes from the IBM Personal System/2. | 1 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data. | 1 |
| DisplayPort version | 1.4 |
| Headphone outputs Number of sockets /ports where headphones are connected. | 1 |
| Line-in |
|
| Microphone in The socket where a microphone is connected to the device. |
|
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Realtek RTL8125-BG |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard. | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | Wi-Fi 6E (802.11ax) |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0). | 5.3 |
| Features | |
| Motherboard chipset The chipset connects the microprocessor to the rest of the motherboard. | Intel B760 |
| Audio chip | Realtek ALC897 |
| Audio output channels An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels. | 7.1 channels |
| Component for What this product is used as a part of (component for). | PC |
| Motherboard form factor Design of the motherboard (ATX, BTX etc). | ATX |
| Motherboard chipset family The category of motherboard chipset e.g. Intel, AMD. | Intel |
| Expansion slots | |
| PCI Express x16 (Gen 5.x) slots | 5 |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 243.8 mm |
| Depth The distance from the front to the back of something. | 304.8 mm |
| Packaging content | |
| Cables included | SATA |
| SKU | 723245 |
| MPN | PRO B760-P WIFI DDR5 |
| Brand | MSI |
| Product Condition | Brand New/Unused |
| Case/MB Form Factor | ATX |
| Motherboard Chipset | Intel B760 |
| CPU Socket | LGA 1700 |
| Memory Type | DDR5 |
| Memory Form Factor | DIMM |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://au.msi.com/ |
