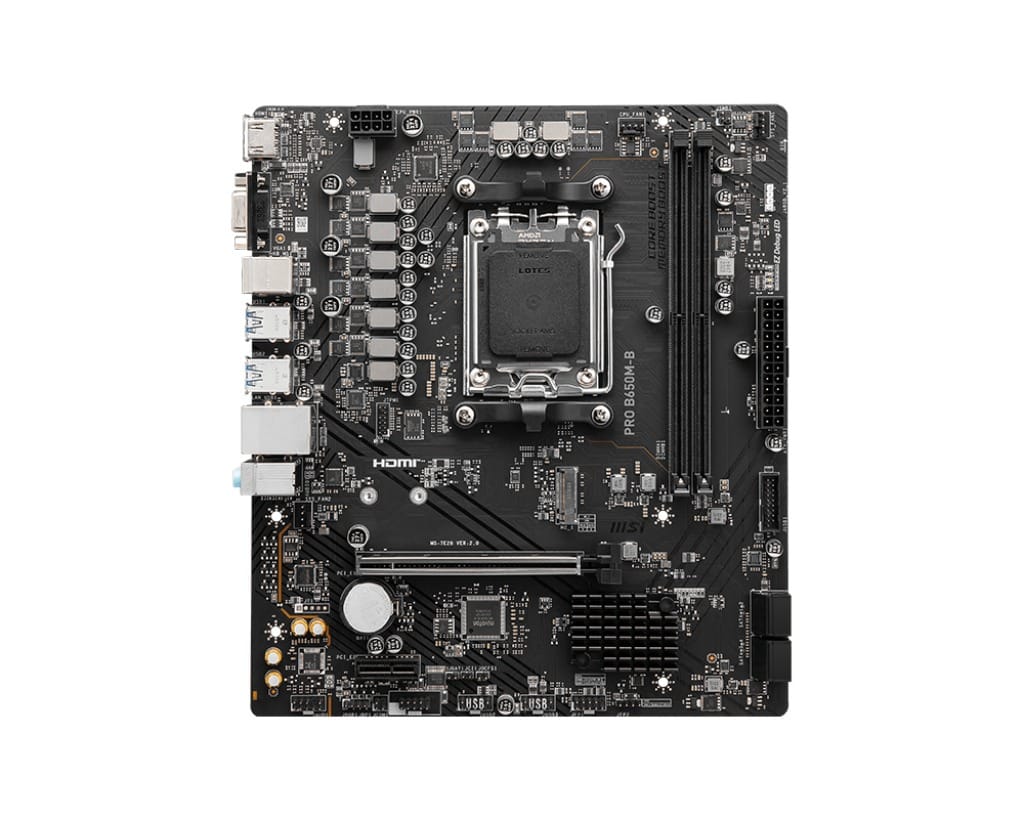

MSI PRO B650M-B AMD AM5 MATX Motherboard, 4x DDR5 ~128GB, 1x PCI-E x16, 2x M.2, 4x SATA, 8x USB 3.2,
MSI PRO B650M-B AMD AM5 MATX Motherboard, 4x DDR5 ~128GB, 1x PCI-E x16, 2x M.2, 4x SATA, 8x USB 3.2,
CHIPSET AMD B650
CPU SUPPORT Supports AMD Ryzen 7000 Series Desktop Processors
Socket AM5
MEMORY 4x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz
Max. overclocking frequency:
1DPC 1R Max speed up to 6400+ MHz
1DPC 2R Max speed up to 5800+ MHz
2DPC 1R Max speed up to 6000+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO
ONBOARD GRAPHICS 1x HDMI
1x DisplayPort
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
Supports DP1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT 2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
STORAGE 2x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G port
USB 4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
4x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
PCB DIMENSION mATX
243.84mmx243.84mm
CHIPSET AMD B650
CPU SUPPORT Supports AMD Ryzen 7000 Series Desktop Processors
Socket AM5
MEMORY 4x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz
Max. overclocking frequency:
1DPC 1R Max speed up to 6400+ MHz
1DPC 2R Max speed up to 5800+ MHz
2DPC 1R Max speed up to 6000+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO
ONBOARD GRAPHICS 1x HDMI
1x DisplayPort
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
Supports DP1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT 2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
STORAGE 2x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G port
USB 4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
4x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
PCB DIMENSION mATX
243.84mmx243.84mm
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | AMD |
| Processor socket Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering. | Socket AM5 |
| Compatible processor series A processor which is compatible with this device, belongs to a 'series' which is part of 'family' e.g Celeron D, Celeron G, Celeron M, or, in some cases, is the same as 'family'. | AMD Ryzen 7000 Series |
| Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. | Socket AM5 |
| Maximum internal memory supported by processor | 96 GB |
| Memory | |
| Supported memory types Types of memory which can be used with the product. | DDR5-SDRAM |
| Number of memory slots | 2 |
| Supported memory clock speeds Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size. | 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz |
| Supported memory clock speed (max) | 6800 MHz |
| Maximum internal memory The maximum internal memory which is available in the product. | 96 GB |
| Storage controllers | |
| Supported storage drive interfaces | M.2, SATA |
| RAID levels RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. | 0, 1, 10 |
| Internal I/O | |
| USB 2.0 connectors The end of a cable with a USB 2.0 connector. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), in addition to the "USB 1.x Full Speed" signaling rate of 12 Mbit/s. USB 2.0 connectors are usually colored black. | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors This is a connector (normally attached to a cable) for USB 3.0. USB 3.0 is the second major revision of the Universal Serial Bus (USB) standard for computer connectivity. First introduced in 2008, USB 3.0 adds a new transfer mode called "SuperSpeed," (distinguishable from USB 2.0 by either the blue colour of the port or the initials SS) capable of transferring data at up to 5Gbit/s—more than ten times as fast as the 480 Mbit/s top speed of USB 2.0. | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Front panel audio connector |
 |
| Front panel connector |
|
| ATX Power connector (24-pin) |
|
| CPU fan connector |
|
| Chassis intrusion connector |
|
| Rear panel I/O ports | |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM. | 1 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data. | 1 |
| DisplayPort version | 1.4 |
| Headphone outputs Number of sockets /ports where headphones are connected. | 1 |
| Line-in |
|
| Microphone in The socket where a microphone is connected to the device. |
|
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Realtek RTL8125-BG |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
 |
| Features | |
| Motherboard chipset The chipset connects the microprocessor to the rest of the motherboard. | AMD B650 |
| Audio chip | Realtek ALC897 |
| Audio output channels An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels. | 7.1 channels |
| PC health monitoring | Fan |
| Component for What this product is used as a part of (component for). | PC |
| Motherboard form factor Design of the motherboard (ATX, BTX etc). | micro ATX |
| Motherboard chipset family The category of motherboard chipset e.g. Intel, AMD. | AMD |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 11 x64 |
| Expansion slots | |
| PCI Express x16 (Gen 3.x) slots Places where PCI Express x16 (Gen 3.x) are placed inside and connected to the computer motherboard. | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS | |
| BIOS type The BIOS (Basic Input/Output System) initializes and tests system hardware components, and loads a bootloader or an operating system from a mass memory device. The BIOS additionally provides abstraction layer for the hardware, i.e. a consistent way for application programs and operating systems to interact with the keyboard, display, and other input/output devices. There are several types of BIOS, including the motherboard ROM BIOS, video BIOS, drive controller BIOS, network adapter BIOS, and SCSI adapter BIOS. | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 6.4 |
| System Management BIOS (SMBIOS) version | 3.5 |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 215 mm |
| Depth The distance from the front to the back of something. | 243.8 mm |
| SKU | 768101 |
| MPN | PRO B650M-B |
| Brand | MSI |
| Product Condition | Brand New/Unused |
| Case/MB Form Factor | Micro-ATX |
| Motherboard Chipset | AMD B650 |
| CPU Socket | AM5 |
| Memory Type | DDR5 |
| Memory Form Factor | DIMM |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://au.msi.com/ |
