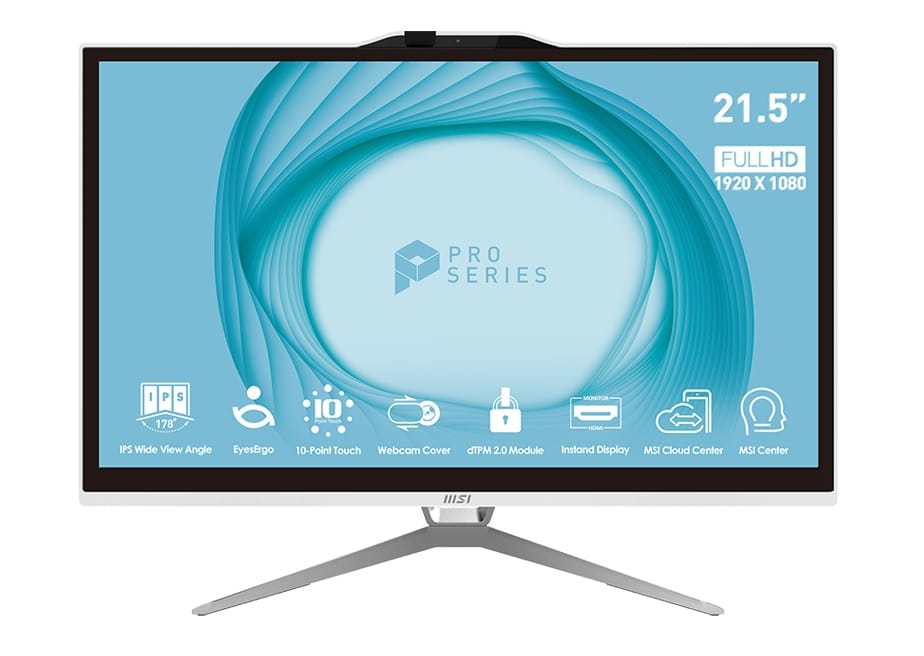

MSI Pro AP222T 13M 21.5" FHD Touch All-in-One PC i5-13400, 8GB RAM, 512GB SSD, Windows 11 Pro

Display
Display diagonal Size of the display for this product, measured diagonally, usually in inches.	54.6 cm (21.5")
Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image.	1920 x 1080 pixels
Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers.
HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD).	Full HD
Panel type	IPS
Anti-glare screen Always gives an optimal view, even in direct sunlight.

Processor
Processor manufacturer The manufacturer that produced the processor.	Intel
Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.	Intel® Core™ i5
Processor generation	13th gen Intel® Core™ i5
Processor model The model number for the processor in a computer.	i5-13400
Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).	10
Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded.	4.6 GHz
Performance cores	6
Efficient cores	4
Performance-core Max Turbo Frequency	4.6 GHz
Efficient-core Max Turbo Frequency	3.3 GHz
Performance-core base frequency	2.5 GHz
Efficient-core base frequency	1.8 GHz
Processor cache	20 MB
Processor cache type	Smart Cache
Bus type	DMI4
Processor base power	65 W
Maximum turbo power	148 W

Memory
Internal memory A computer's memory which is directly accessible to the CPU.	8 GB
Internal memory type The type of internal memory such as RAM, GDDR5.	DDR4-SDRAM
Maximum internal memory The maximum internal memory which is available in the product.	64 GB
Memory slots Number and type of memory expansion slots, including connector and memory module descriptions.	2
Memory slots type A memory slot, also known as a memory socket or RAM slot, is what allows computer memory (RAM) to be inserted into the computer. Depending on the motherboard, there will usually be 2 to 4 memory slots (sometimes more on high-end motherboards). The most common types of RAM are SDRAM and DDR for desktop computers and SODIMM for laptop computers, each having various types and speeds.	SO-DIMM
Memory clock speed The frequency at which the memory (e.g. RAM) runs.	3200 MHz

Storage
Total storage capacity The total amount of data that can be stored on the device.	512 GB
Storage media Used for the storage of data e.g. HDD (hard disk drive), SSD (solid-state drive).	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity The Solid State Drive's data storage capacity.	512 GB
SSD interface The type of interface(s) with which the Solid State Drive is connected to other hardware.	PCI Express
NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices.
Optical drive type An optical drive uses laser to read optical discs such as CDs, DVDs and Blu-Ray. Some types of optical drive are: CD ROM drive, CR-RW (CD writer) drive, DVD-ROM.
Card reader integrated A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.

Graphics
Discrete graphics card
Discrete graphics card model A graphics adapter (often known as a video card) generates images for a display. A discrete graphics adapter plugs into the motherboard, and usually produces much better graphics than an integrated graphics adapter. There are various models of discrete graphics adapters.	Not available
On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.	Intel UHD Graphics 730

Audio
Built-in speaker(s) The device contains speaker(s) to produce sound.
Number of speakers The quantity of speakers included in/with the product.	2
RMS rated power RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers.	6 W
Audio chip	Realtek ALC897

Camera
Built-in camera The product has an integrated camera.
Camera HD type	HD
Privacy camera
Privacy type	Privacy shutter

Network
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard.	Wi-Fi 6E (802.11ax)
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	Wi-Fi 6E (802.11ax)
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100,1000 Mbit/s
Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.
Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).	5.3

Ports & interfaces
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	2
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.	2
Headphone outputs Number of sockets /ports where headphones are connected.	1
Microphone in The socket where a microphone is connected to the device.
DC-in jack The socket/plug where the DC electricity supply connects to the device.

Design
Product colour The colour e.g. red, blue, green, black, white.	Black
VESA mounting
Panel mounting interface The product can be used wih VESA mounting interfaces.	100 x 100 mm

Performance
Product type The sub-category of the product.	All-in-One PC
Motherboard chipset The chipset connects the microprocessor to the rest of the motherboard.	Intel H610
Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version	2.0

Software
Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.	Windows 11 Pro

Processor special features
CPU configuration (max)	1

Power
AC adapter power	120 W

Weight & dimensions
Weight (with stand)	5.9 kg
Package weight Weight of the packaged product.	8.59 kg

Certificates
Certification	FCC, CB/CE, UL & CUL, VCCI, RCM

Other features
HDMI in Port (socket) for HDMI input.	1
