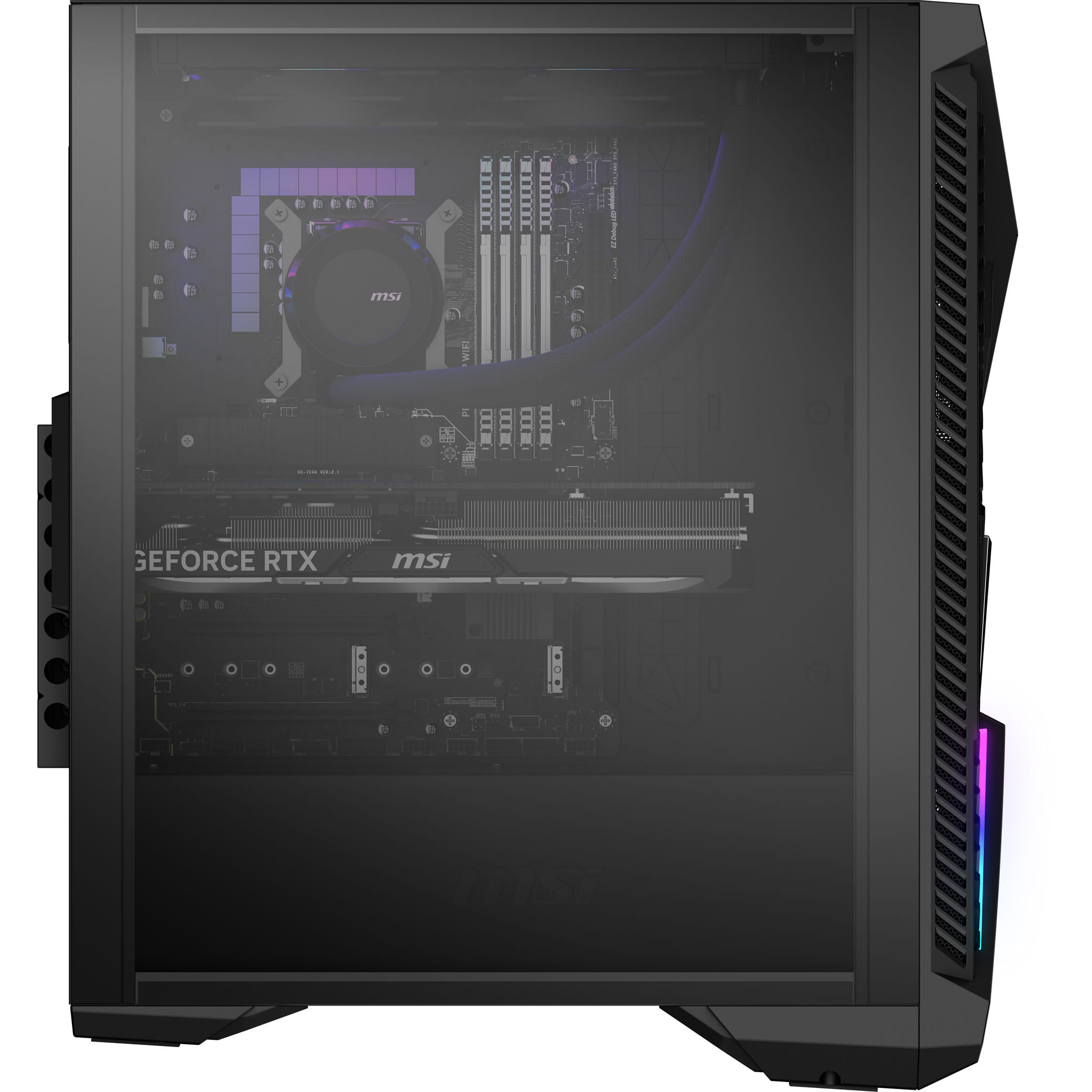

MSI MPG Infinite X2 i7-14700KF, 32GB RAM, 2TB + 2TB SSD, RTX 4070 Ti SUPER, Windows 11 Home

Processor
Processor manufacturer The manufacturer that produced the processor.	Intel
Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.	Intel® Core™ i7
Processor generation	Intel® Core™ i7 (14th gen)
Processor model The model number for the processor in a computer.	i7-14700KF
Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).	20
Processor threads	28
Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded.	5.6 GHz
Performance cores	8
Efficient cores	12
Performance-core Max Turbo Frequency	5.5 GHz
Efficient-core Max Turbo Frequency	4.3 GHz
Performance-core base frequency	3.4 GHz
Efficient-core base frequency	2.5 GHz
Processor cache	33 MB
Processor cache type	Smart Cache
Processor base power	125 W
Maximum turbo power	253 W

Memory
Internal memory A computer's memory which is directly accessible to the CPU.	32 GB
Maximum internal memory The maximum internal memory which is available in the product.	128 GB
Internal memory type The type of internal memory such as RAM, GDDR5.	DDR5-SDRAM
Memory layout (slots x size) The slots and size of the memory for the CPU.	2 x 16 GB
Memory slots Number and type of memory expansion slots, including connector and memory module descriptions.	4x DIMM
Memory clock speed The frequency at which the memory (e.g. RAM) runs.	5600 MHz

Storage
Total storage capacity The total amount of data that can be stored on the device.	4 TB
Storage media Used for the storage of data e.g. HDD (hard disk drive), SSD (solid-state drive).	HDD+SSD
Optical drive type An optical drive uses laser to read optical discs such as CDs, DVDs and Blu-Ray. Some types of optical drive are: CD ROM drive, CR-RW (CD writer) drive, DVD-ROM.
Total HDDs capacity	2 TB
Number of HDDs installed The number of hard drives built into the device.	1
HDD capacity The maximum storage capacity of the hard disk, usually measured in bytes e.g. GB.	2 TB
Total SSDs capacity	2 TB
Number of SSDs installed	1
SSD capacity The Solid State Drive's data storage capacity.	2 TB
SSD interface The type of interface(s) with which the Solid State Drive is connected to other hardware.	PCI Express 4.0
NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices.

Graphics
Discrete graphics card
Discrete GPU manufacturer	NVIDIA
On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.
Discrete graphics card model A graphics adapter (often known as a video card) generates images for a display. A discrete graphics adapter plugs into the motherboard, and usually produces much better graphics than an integrated graphics adapter. There are various models of discrete graphics adapters.	NVIDIA GeForce RTX 4070
Discrete graphics card memory	16 GB
On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.	Not available

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100,1000,2500 Mbit/s
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard.	Wi-Fi 6E (802.11ax)
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	Wi-Fi 6E (802.11ax)
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 6E AX211
Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.
Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).	5.3

Ports & interfaces
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.	1
USB 3.2 Gen 2x2 Type-C ports quantity	1
HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.	1
HDMI version	2.1
DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.	1
DisplayPort version	1.4
PS/2 ports quantity The number of PS/2 connectors for keyboards and mice. Its name comes from the IBM Personal System/2.	1
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	1
Microphone in The socket where a microphone is connected to the device.
Headphone outputs Number of sockets /ports where headphones are connected.	1
Combo headphone/mic port
DC-in jack The socket/plug where the DC electricity supply connects to the device.

Design
Chassis type The type of rigid framework onto which is the hosuing for device components.	Desktop
Volume The amount of a substance contained.	34 L
Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.	Vertical
Product colour The colour e.g. red, blue, green, black, white.	Black

Performance
Market positioning Under which category can the device be positioned in the market, e.g. camera phone.	Gaming
Audio chip	Realtek ALC897
Audio system System used to play music or speech.	Nahimic 3D
Audio output channels An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.	7.1 channels
Product type The sub-category of the product.	PC

Software
Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.	Windows 11 Home

Power
Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable.	850 W
80 PLUS certification	80 PLUS Gold

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 35 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-20 - 60 °C
Operating relative humidity (H-H)	0 - 85%
Storage relative humidity (H-H)	0 - 90%

Weight & dimensions
Width The measurement or extent of something from side to side.	214 mm
Depth The distance from the front to the back of something.	429.6 mm
Height The measurement of the product from head to foot or from base to top.	489.6 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	14 kg
Package width The distance from one side of the packaging to the other.	314 mm
Package depth The distance from the front to the back of the packaging.	576 mm
Package height The distance from the top to the bottom of the packaging.	565 mm
Package weight Weight of the packaged product.	16.2 kg

Display
Display included This product includes a display.
