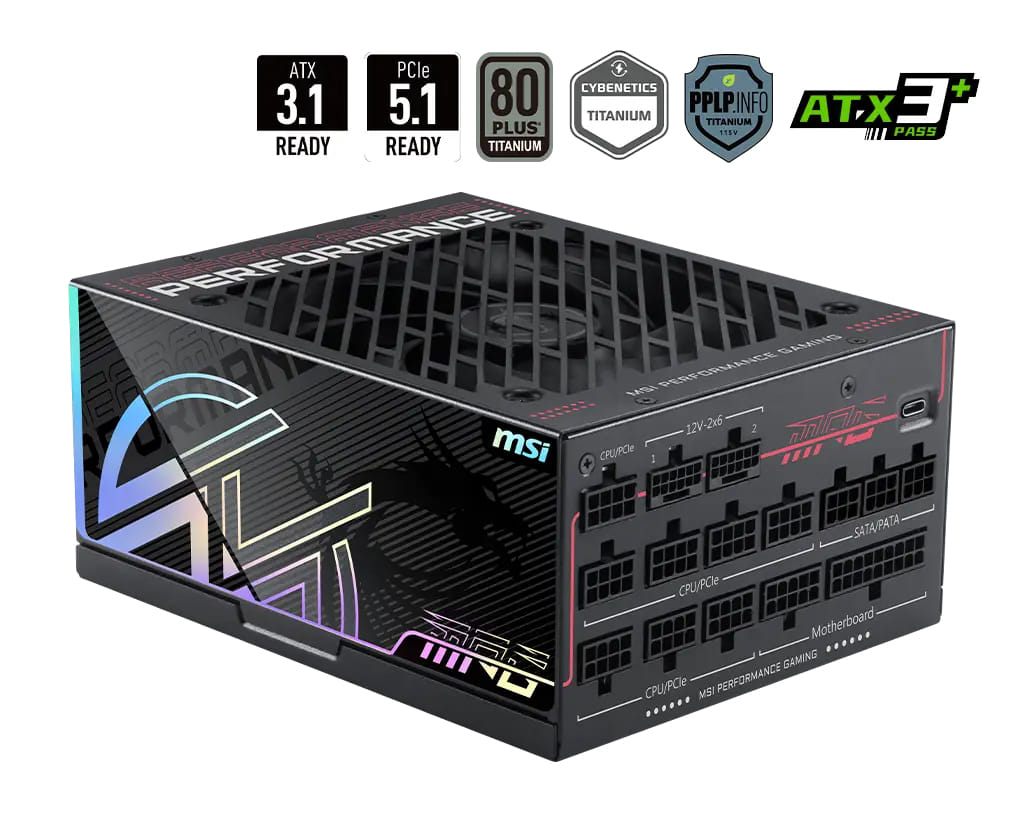

MSI MPG Ai1300TS PCIE5, 1300 W, 100 - 240 V, 50/60 Hz, 15 A, 10 A, Active
The Reliable Engine of Your PC Build
Support MSI Exclusive GPU Safeguard+, it's the comprehensive and precisely protection, while under of computer using scenario.
SiC MOSFETs
Server-grade material, resulting in 10% less waste heat.
ATX 3.1 READY
Handle up to 240% total power excursion, 300% GPU power excursion.
TITANIUM
Energy efficiency, offering up to 94% efficiency.
2 x 12V-2x6
Comes with 2 x native 12V-2x6 connectors.
STABLE POWER DELIVERY
Minimizing the +12V regulation fluctuation into +/-1%.
FULL DIGITAL DESIGN
The MCU controller can quickly manage dynamic adjustments.
NIGHT SOUND LEVEL
Low noise design.
ZERO FAN MODE
Fan completely stops under low load, delivering silent operating environment.
FDB FAN BEARING
To improve thermal performance and reduce noise, choose a larger, longer-lasting fan.
100% SERVER-GRADE
105DegC CAPACITOR
High quality Japanese capacitor for the stability and durability.
ALLOY COPPER
For safety, offering superior current handling capability for higher current surges.
SAFETY CABLE
UL certified cable, robust high current handling capability.
PROTECTION
Equipped with multiple protection mechanisms, ensuring your system operates worry-free at all times.
DUAL COLOR 12V-2x6
CONNECTOR
Allowing you to quickly confirm connection tightness.
EMBOSSED CABLE
More Flexibility and Bendability, easy for the cable management.
CABLE ORGANIZER
Pre-installed with cable organizers, streamline the cable management process, resulting in a cleaner pc build.
POWER SUPPLY
OVERVIEW
Overall real-time current, output wattage, energy efficiency.
REAL-TIME DASHBOARD
Monitor the PSU detail message, and exporting selected real-time data.
COOLING WIZARD
Zero fan mode switch, and Allows users to customize the fan curve.
MSI Center
MSI's exclusive MSI Center software allows you to customize power settings and monitor real-time electrical data through an intuitive graphical interface; please connect the USB Type-C cable to sync your power supply information.
Afterburner
MSI Afterburner (version 4.6.7 Beta 2) now supports individual pin current monitoring. This update also allows you to limit GPU power consumption automatically whenever the GPU Safeguard+ protection is triggered.
Support MSI Exclusive GPU Safeguard+, it's the comprehensive and precisely protection, while under of computer using scenario.
SiC MOSFETs
Server-grade material, resulting in 10% less waste heat.
ATX 3.1 READY
Handle up to 240% total power excursion, 300% GPU power excursion.
TITANIUM
Energy efficiency, offering up to 94% efficiency.
2 x 12V-2x6
Comes with 2 x native 12V-2x6 connectors.
STABLE POWER DELIVERY
Minimizing the +12V regulation fluctuation into +/-1%.
FULL DIGITAL DESIGN
The MCU controller can quickly manage dynamic adjustments.
NIGHT SOUND LEVEL
Low noise design.
ZERO FAN MODE
Fan completely stops under low load, delivering silent operating environment.
FDB FAN BEARING
To improve thermal performance and reduce noise, choose a larger, longer-lasting fan.
100% SERVER-GRADE
105DegC CAPACITOR
High quality Japanese capacitor for the stability and durability.
ALLOY COPPER
For safety, offering superior current handling capability for higher current surges.
SAFETY CABLE
UL certified cable, robust high current handling capability.
PROTECTION
Equipped with multiple protection mechanisms, ensuring your system operates worry-free at all times.
DUAL COLOR 12V-2x6
CONNECTOR
Allowing you to quickly confirm connection tightness.
EMBOSSED CABLE
More Flexibility and Bendability, easy for the cable management.
CABLE ORGANIZER
Pre-installed with cable organizers, streamline the cable management process, resulting in a cleaner pc build.
POWER SUPPLY
OVERVIEW
Overall real-time current, output wattage, energy efficiency.
REAL-TIME DASHBOARD
Monitor the PSU detail message, and exporting selected real-time data.
COOLING WIZARD
Zero fan mode switch, and Allows users to customize the fan curve.
MSI Center
MSI's exclusive MSI Center software allows you to customize power settings and monitor real-time electrical data through an intuitive graphical interface; please connect the USB Type-C cable to sync your power supply information.
Afterburner
MSI Afterburner (version 4.6.7 Beta 2) now supports individual pin current monitoring. This update also allows you to limit GPU power consumption automatically whenever the GPU Safeguard+ protection is triggered.
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 1300 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Maximum input current (@110V) | 15 A |
| Maximum input current (@220V) | 10 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 1299.96 W |
| Combined power (+5V) | 120 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V) | 108.33 A |
| Max output current (+5V) | 22 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features Features that protect the device against power problems e.g. overload. | Over current, Over power, Over voltage, Short circuit, Under voltage |
| Ports & interfaces | |
| Motherboard power connector The way in which the motherboard is connected to the power supply. | 24-pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. | 4 |
| EPS power connector (8-pin) |
 |
| EPS power connector (4+4 pin) |
|
| PCI Express power connectors (6+2 pin) | 8 |
| ATX Power connector (24-pin) |
|
| Floppy disk drive connector |
|
| Cabling type | Fully-Modular |
| Performance | |
| 80 PLUS certification | 80 PLUS Titanium |
| Purpose What the product is used for. | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version ATX (Advanced Technology eXtended) is a motherboard form factor specification developed by Intel in 1995. The specification defines the key mechanical dimensions, mounting point, I/O panel, power and connector interfaces between a computer case, a motherboard and a power supply. There are many versions of ATX including ATX12V 1.x and ATX12V v2.3. | 3.1 |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 13.5 cm |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Illumination The device has illumination. |
 |
| On/off switch The button which is pressed to switch the device on or off. |
|
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 190 mm |
| Depth The distance from the front to the back of something. | 150 mm |
| Height The measurement of the product from head to foot or from base to top. | 86 mm |
| Logistics data | |
| Country of origin Country where the device is made. Aka Country of manufacture (COM). | China |
| SKU | 838808 |
| MPN | MPG Ai1300TS PCIE5 |
| Brand | MSI |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://au.msi.com/ |
