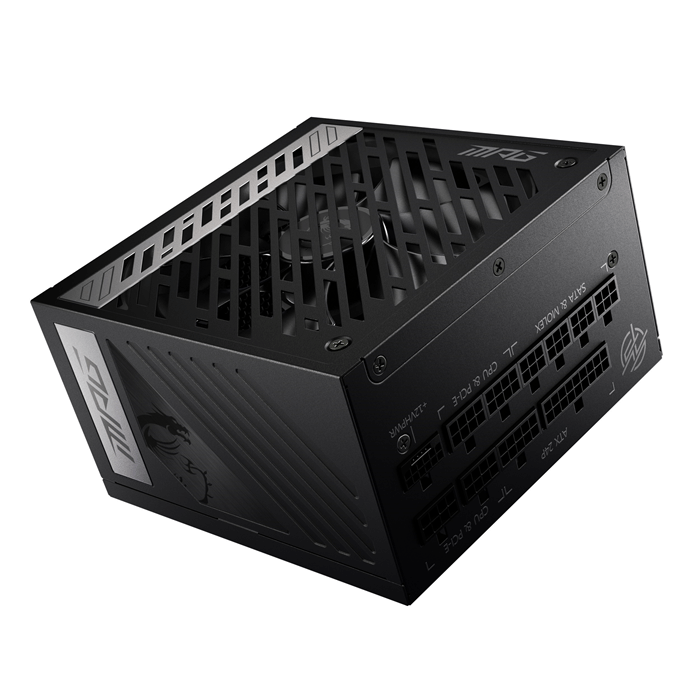

MSI MPG A1000G PCIE5 1000W ATX Power Supply Unit, 80 PLUS Gold, Fully modular flat cables, 0 RPM Mode, Active PFC design
With the upcoming trend of VGA transition, MSI is ready for the next-gen product.
Introduce the first MEG segment PSU product MEG Ai1000P PCIE5 and MEG Ai1300P PCIE5.
Inherit the stability of product quality and MSI's commitment to the gamers:
80 PLUS Platinum certification provided better efficiency for heavy gamers and operation.
PCIE 5.0 and ATX 3.0 Ready for the next generation.
100% Japanese electrolytic capacitor with a fully-modular design
MEG SILENT Gale P12 fan embedded
MSI G.I (Gaming Intelligence) supported
Monitor the power consumption of the system/GPU/CPU in real-time
Set the fan speed of the power supply
Switch the PSU Multi/Single-mode with one click
Introduce the first MEG segment PSU product MEG Ai1000P PCIE5 and MEG Ai1300P PCIE5.
Inherit the stability of product quality and MSI's commitment to the gamers:
80 PLUS Platinum certification provided better efficiency for heavy gamers and operation.
PCIE 5.0 and ATX 3.0 Ready for the next generation.
100% Japanese electrolytic capacitor with a fully-modular design
MEG SILENT Gale P12 fan embedded
MSI G.I (Gaming Intelligence) supported
Monitor the power consumption of the system/GPU/CPU in real-time
Set the fan speed of the power supply
Switch the PSU Multi/Single-mode with one click
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 1000 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 1000 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V) | 83.5 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |
| Power protection features Features that protect the device against power problems e.g. overload. | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Ports & interfaces | |
| Motherboard power connector The way in which the motherboard is connected to the power supply. | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 12 |
| SATA power cable length | 500,650,700,850 mm |
| Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. | 4 |
| Peripheral (Molex) power cable length | 1100,500,650,700,850 mm |
| EPS power connector (8-pin) |
 |
| EPS power connector (4+4 pin) |
 |
| PCI Express power connectors (6+2 pin) | 6 |
| PCI Express power connectors (16-pin) | 1 |
| PCI Express power cable length | 75 cm |
| Floppy disk drive connector |
|
| Cabling type | Fully-Modular |
| Performance | |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose What the product is used for. | PC/Server |
| Power supply unit (PSU) form factor | ATX |
| ATX version ATX (Advanced Technology eXtended) is a motherboard form factor specification developed by Intel in 1995. The specification defines the key mechanical dimensions, mounting point, I/O panel, power and connector interfaces between a computer case, a motherboard and a power supply. There are many versions of ATX including ATX12V 1.x and ATX12V v2.3. | 3.0 |
| Bearing technology | FDB |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 13.5 cm |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Illumination The device has illumination. |
|
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 150 mm |
| Depth The distance from the front to the back of something. | 150 mm |
| Height The measurement of the product from head to foot or from base to top. | 86 mm |
| Other features | |
| EPS cable length | 70 cm |
| SKU | 693596 |
| MPN | MPG A1000G PCIE5 |
| Brand | MSI |
| Product Condition | Brand New/Unused |
| Stock Availability | In Stock at Bankstown |
| Product Use | General |
| Warranty Period | 10 Years Warranty |
| Warranty Contact | https://au.msi.com/ |
