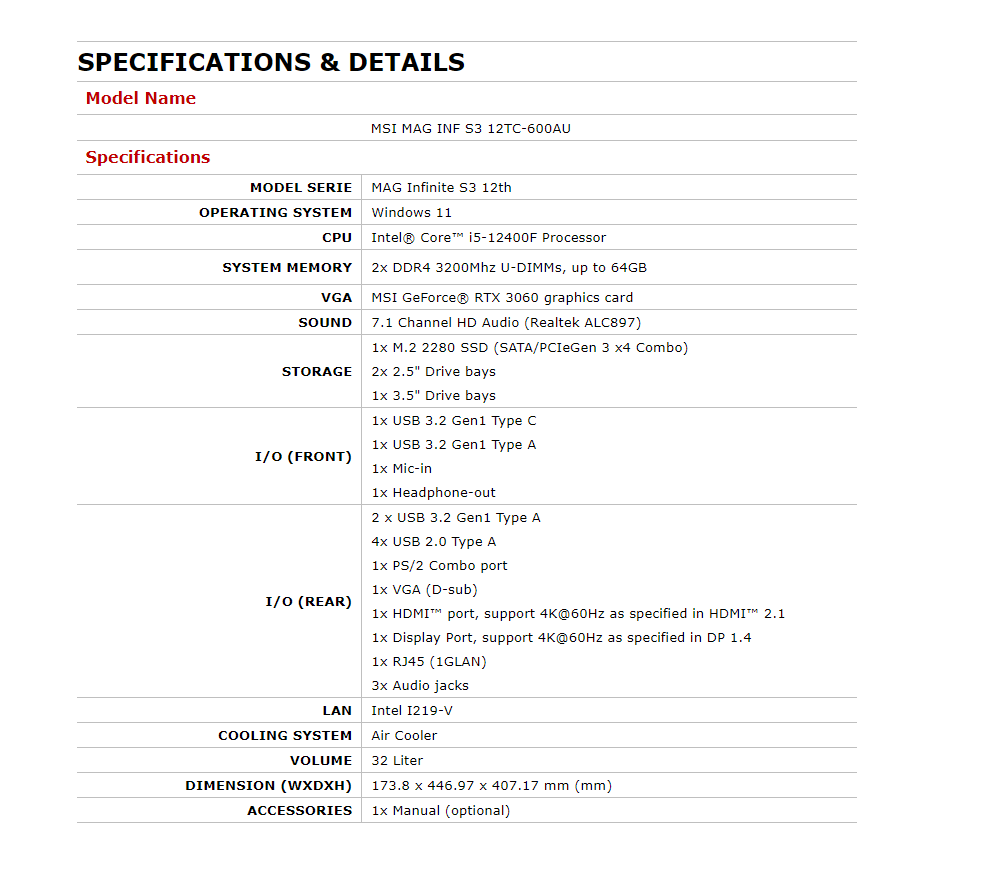

MSI MAG Infinite S3 i5-12400F, 16GB RAM, 512GB SSD +1TB, RTX3060, Windows 11 Home

Processor
Processor manufacturer The manufacturer that produced the processor.	Intel
Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.	Intel® Core™ i5
Processor generation	12th gen Intel® Core™ i5
Processor model The model number for the processor in a computer.	i5-12400F
Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).	6
Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded.	4.4 GHz
Processor cache	18 MB
Bus type	DMI4

Memory
Internal memory A computer's memory which is directly accessible to the CPU.	16 GB
Maximum internal memory The maximum internal memory which is available in the product.	64 GB
Internal memory type The type of internal memory such as RAM, GDDR5.	DDR4-SDRAM
Memory layout (slots x size) The slots and size of the memory for the CPU.	2 x 8 GB
Memory slots Number and type of memory expansion slots, including connector and memory module descriptions.	2x DIMM
Memory clock speed The frequency at which the memory (e.g. RAM) runs.	3200 MHz

Storage
Total storage capacity The total amount of data that can be stored on the device.	1.51 TB
Storage media Used for the storage of data e.g. HDD (hard disk drive), SSD (solid-state drive).	HDD+SSD
Optical drive type An optical drive uses laser to read optical discs such as CDs, DVDs and Blu-Ray. Some types of optical drive are: CD ROM drive, CR-RW (CD writer) drive, DVD-ROM.
Number of storage drives installed Amount of storage drives built into the device.	2
Total HDDs capacity	1 TB
Number of HDDs installed The number of hard drives built into the device.	1
HDD capacity The maximum storage capacity of the hard disk, usually measured in bytes e.g. GB.	1 TB
HDD interface The way that a hard disk drive (HDD) is connected to the rest of the computer through a 'bus' such as ATA or SCSI.	SATA III
HDD speed The rotational speed of a hard disk expressed in rotations per minute. The faster the better.	7200 RPM
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity The Solid State Drive's data storage capacity.	512 GB
Card reader integrated A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.

Graphics
Discrete graphics card
On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.
Discrete graphics card model A graphics adapter (often known as a video card) generates images for a display. A discrete graphics adapter plugs into the motherboard, and usually produces much better graphics than an integrated graphics adapter. There are various models of discrete graphics adapters.	NVIDIA GeForce RTX 3060
Discrete graphics card memory	12 GB
Discrete graphics memory type	GDDR6
On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.	Not available

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100,1000 Mbit/s
Cabling technology Type of cable technology performance.	10/100/1000Base-T(X)
LAN controller	Intel® I219-V
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard.	Wi-Fi 6 (802.11ax)
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	Wi-Fi 6 (802.11ax)
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 6E AX210
Antenna type Type of antenna, also known an aerial, e.g. external, internal.	2x2
Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.
Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).	5.2

Ports & interfaces
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.	1
VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM.	1
HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.	1
DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.	1
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	1
Microphone in The socket where a microphone is connected to the device.
Headphone outputs Number of sockets /ports where headphones are connected.	1
Combo headphone/mic port
DC-in jack The socket/plug where the DC electricity supply connects to the device.

Design
Chassis type The type of rigid framework onto which is the hosuing for device components.	Desktop
Volume The amount of a substance contained.	32 L
Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.	Vertical
Number of 3.5" bays A drive bay is a standard-area for adding hardware to a computer. Most drive bays are fixed to the inside of a case, but some can be removed. A 3.5" drive bay is for floppy disks.	1
Number of 2.5" bays	2
Product colour The colour e.g. red, blue, green, black, white.	Black

Performance
Market positioning Under which category can the device be positioned in the market, e.g. camera phone.	Gaming
Motherboard chipset The chipset connects the microprocessor to the rest of the motherboard.	Intel H610
Audio chip	Realtek ALC897
Audio output channels An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.	7.1 channels
Product type The sub-category of the product.	PC

Software
Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.	Windows 11 Home

Processor special features
Intel 64
Enhanced Intel SpeedStep Technology
Embedded options available
Intel VT-x with Extended Page Tables (EPT)
Idle States
Execute Disable Bit
CPU configuration (max)	1
Intel Virtualization Technology for Directed I/O (VT-d) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other.
Intel Virtualization Technology (VT-x) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other.

Power
Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable.	500 W
80 PLUS certification	80 PLUS Bronze

Weight & dimensions
Width The measurement or extent of something from side to side.	173.8 mm
Depth The distance from the front to the back of something.	447 mm
Height The measurement of the product from head to foot or from base to top.	407.2 mm

Display
Display included This product includes a display.
