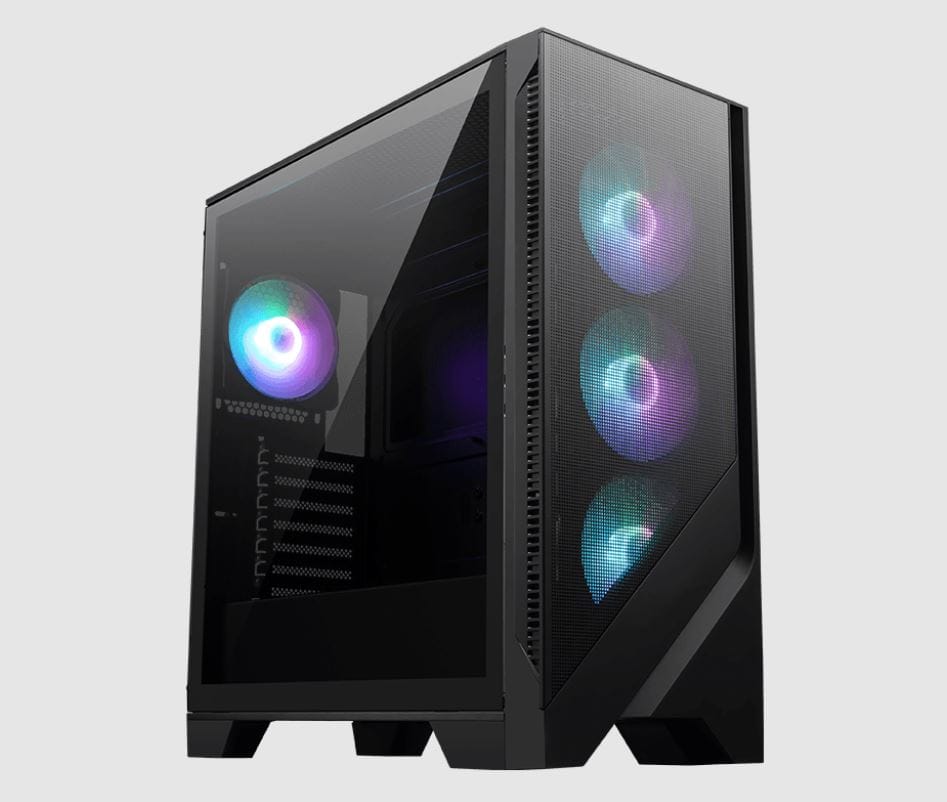

MSI MAG FORGE 320R Micro ATX Case, 2x USB 3.2, 1x Audio, 1x Mic, 1x LED, 1x 2.5 , 2x 2.5 /3.5 , Micro ATX / Mini ITX(NEW)
MSI MAG FORGE 320R Micro ATX Case, 2x USB 3.2, 1x Audio, 1x Mic, 1x LED, 1x 2.5 , 2x 2.5 /3.5 , Micro ATX / Mini ITX(NEW)
CASE FORM FACTOR Mid Tower
MOTHERBOARD FORM FACTOR SUPPORT ATX / Micro-ATX / Mini-ITX
I/O PORTS
2 x USB 3.2 Gen 1 Type-A
1 x Audio-out
1 x Mic-in
1 x LED Switch
DRIVE MOUNT SUPPORT 1 x 2.5 , 2 x 2.5 / 3.5
EXPANSION SLOTS 7
MAXIMUM GPU LENGTH 390 mm / 15.35 inches
MAXIMUM CPU COOLER HEIGHT 160 mm / 6.29 inches
POWER SUPPLY SUPPORT ATX
MAXIMUM PSU LENGTH 200 mm / 7.87 inches (without 2.5 /3.5 HDD tray installation)
FAN SIZE SUPPORT
Front: 3 x 120 mm / 2 x 140 mm
Top: 3 x 120 mm / 2 x 140 mm
Rear: 1 x 120 mm
Side: 2 x 120 mm
PSU Shroud: 2 x 120 mm
PRE-INSTALLED FAN SIZE Front: 3 x 120 mm, Rear: 1 x 120 mm
PRE-INSTALLED FAN TYPE Front: 3 x ARGB Fan, Rear: 1 x ARGB Fan
RADIATOR SIZE SUPPORT
Front: 120 / 140 / 240 mm
Top: 120 / 240 / 280 / 360 mm
Rear: 120 mm
DIMENSIONS (DXWXH) 472.5 x 210 x 498 mm / 18.60 x 8.26 x 19.60 inches
NET WEIGHT 7.05 kg / 15.54lbs
GROSS WEIGHT 8.35 kg / 18.41lbs
CASE FORM FACTOR Mid Tower
MOTHERBOARD FORM FACTOR SUPPORT ATX / Micro-ATX / Mini-ITX
I/O PORTS
2 x USB 3.2 Gen 1 Type-A
1 x Audio-out
1 x Mic-in
1 x LED Switch
DRIVE MOUNT SUPPORT 1 x 2.5 , 2 x 2.5 / 3.5
EXPANSION SLOTS 7
MAXIMUM GPU LENGTH 390 mm / 15.35 inches
MAXIMUM CPU COOLER HEIGHT 160 mm / 6.29 inches
POWER SUPPLY SUPPORT ATX
MAXIMUM PSU LENGTH 200 mm / 7.87 inches (without 2.5 /3.5 HDD tray installation)
FAN SIZE SUPPORT
Front: 3 x 120 mm / 2 x 140 mm
Top: 3 x 120 mm / 2 x 140 mm
Rear: 1 x 120 mm
Side: 2 x 120 mm
PSU Shroud: 2 x 120 mm
PRE-INSTALLED FAN SIZE Front: 3 x 120 mm, Rear: 1 x 120 mm
PRE-INSTALLED FAN TYPE Front: 3 x ARGB Fan, Rear: 1 x ARGB Fan
RADIATOR SIZE SUPPORT
Front: 120 / 140 / 240 mm
Top: 120 / 240 / 280 / 360 mm
Rear: 120 mm
DIMENSIONS (DXWXH) 472.5 x 210 x 498 mm / 18.60 x 8.26 x 19.60 inches
NET WEIGHT 7.05 kg / 15.54lbs
GROSS WEIGHT 8.35 kg / 18.41lbs
| Design | |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Mesh, Plastic |
| Form factor The shape or design of the product. | Micro Tower |
| Type Characteristics of the device. | PC |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Transparent |
| Supported motherboard form factors Design of the supported motherboards. | micro ATX, Mini-ITX |
| Number of 3.5" bays A drive bay is a standard-area for adding hardware to a computer. Most drive bays are fixed to the inside of a case, but some can be removed. A 3.5" drive bay is for floppy disks. | 1 |
| Number of 2.5" bays | 2 |
| Side window A side window is a transparent side (or part of side) in a housing which enables you to see the internal space of the device. |
 |
| Suitable for Who can use the product, or what the product can be used for. | Gaming |
| Illumination The device has illumination. |
|
| Illumination colour The colour of the illumination, which is the light which allows you to see the display etc. clearly. | Multi |
| Illumination location | Case fans |
| Tempered glass panel(s) |
|
| Anti-dust filter |
|
| Reset button |
|
| On/off button |
|
| LED indicators |
|
| Power supply | |
| Power supply included There is a power supply with this product. |
 |
| Power supply location Where the power supply is positioned. | Bottom |
| Ports & interfaces | |
| Audio input The type of audio input that the device requires, and the connection needed. |
|
| Audio output The type of audio output that the device produces, and the connector(s). |
|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Cooling | |
| Front fans installed | 3x 120 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Number of side fans supported (max) | 2 |
| Side fans diameters supported | 120 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Storage | |
| Supported HDD sizes The size of the hard disk drives which can be used by the device. | 2.5,3.5" |
| HDD/SSD combo cage |
|
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 472.5 mm |
| Depth The distance from the front to the back of something. | 210 mm |
| Height The measurement of the product from head to foot or from base to top. | 498 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 7.05 kg |
| Packaging data | |
| Package weight Weight of the packaged product. | 8.35 kg |
| SKU | 757964 |
| MPN | MAG FORGE 320R |
| Brand | MSI |
| Product Condition | Brand New/Unused |
| Case/MB Form Factor | Micro-ATX |
| Case Colour | Black |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://au.msi.com/ |
