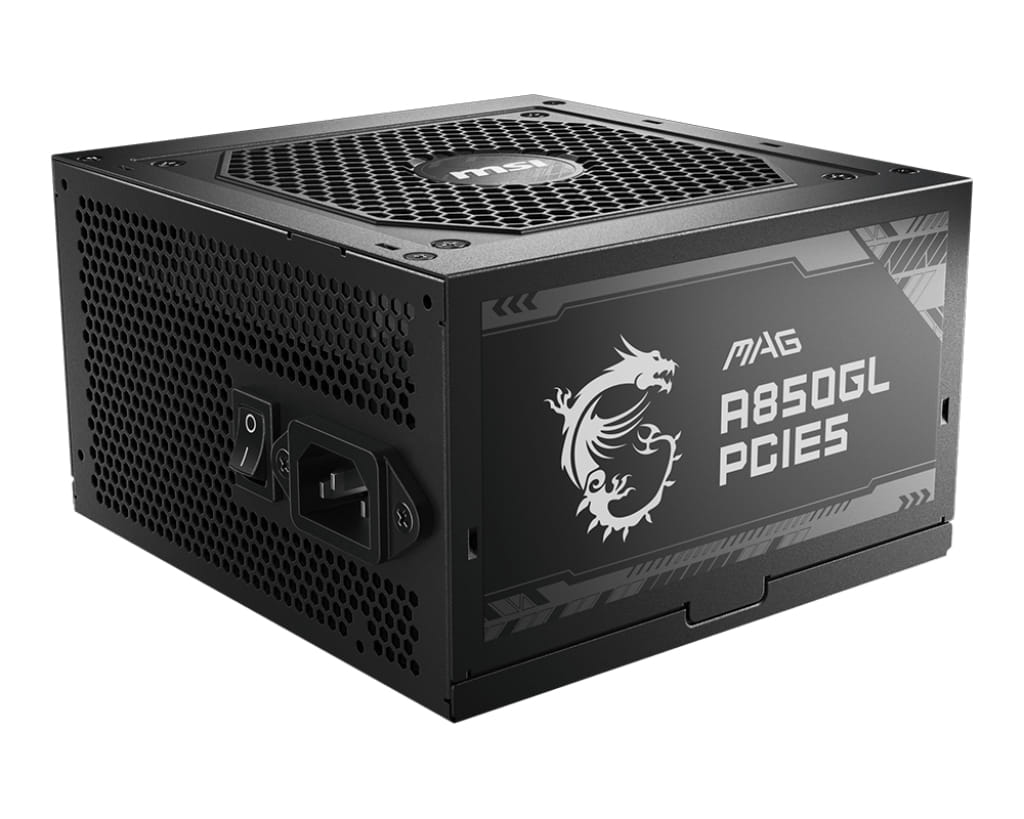

MSI MAG A850GL PCIE5, 850 W, 100 240 V, 47 63 Hz, 8 A, 4 A, Active
The MAG series fights alongside gamers in pursuit of honor.
With added military inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
ATX 3.0 COMPATIBLE
It has an output port that is compliant with PCIe 5.0 and Intel PSDG(Power Supply Design Guide) ATX 3.0, also the MAG A850GL PCIE5 power supply can handle up to 2x total power excursion and 3x GPU power excursion.
80 PLUS GOLD CERTIFIED
The efficiency of your power supply directly influences your system
With added military inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
ATX 3.0 COMPATIBLE
It has an output port that is compliant with PCIe 5.0 and Intel PSDG(Power Supply Design Guide) ATX 3.0, also the MAG A850GL PCIE5 power supply can handle up to 2x total power excursion and 3x GPU power excursion.
80 PLUS GOLD CERTIFIED
The efficiency of your power supply directly influences your system
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 850 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Maximum input current (@110V) | 8 A |
| Maximum input current (@220V) | 4 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 110 W |
| Combined power (+12V) | 846 W |
| Combined power (+5V) | 110 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 90% |
| Power protection features Features that protect the device against power problems e.g. overload. | Over current, Over power, Over voltage, Overheating, Short circuit |
| Ports & interfaces | |
| Motherboard power connector The way in which the motherboard is connected to the power supply. | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. | 4 |
| EPS power connector (8-pin) |
 |
| EPS power connector (4+4 pin) |
 |
| PCI Express power connectors (6+2 pin) | 4 |
| CPU power connector (4+4 pin) |
|
| ATX Power connector (24-pin) |
|
| ATX power connector (20+4 pin) |
|
| Cabling type | Fully-Modular |
| Performance | |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose What the product is used for. | PC |
| Power supply unit (PSU) form factor | ATX |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Illumination The device has illumination. |
|
| On/off switch The button which is pressed to switch the device on or off. |
|
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 150 mm |
| Depth The distance from the front to the back of something. | 140 mm |
| Height The measurement of the product from head to foot or from base to top. | 86 mm |
| Packaging data | |
| Package type The type of product package e.g. box. | Box |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| SKU | 746393 |
| MPN | MAG A850GL PCIE5 |
| Brand | MSI |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping, In Stock at Bankstown, In Stock at Castle Hill, In Stock at Warehouse |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://au.msi.com/ |
