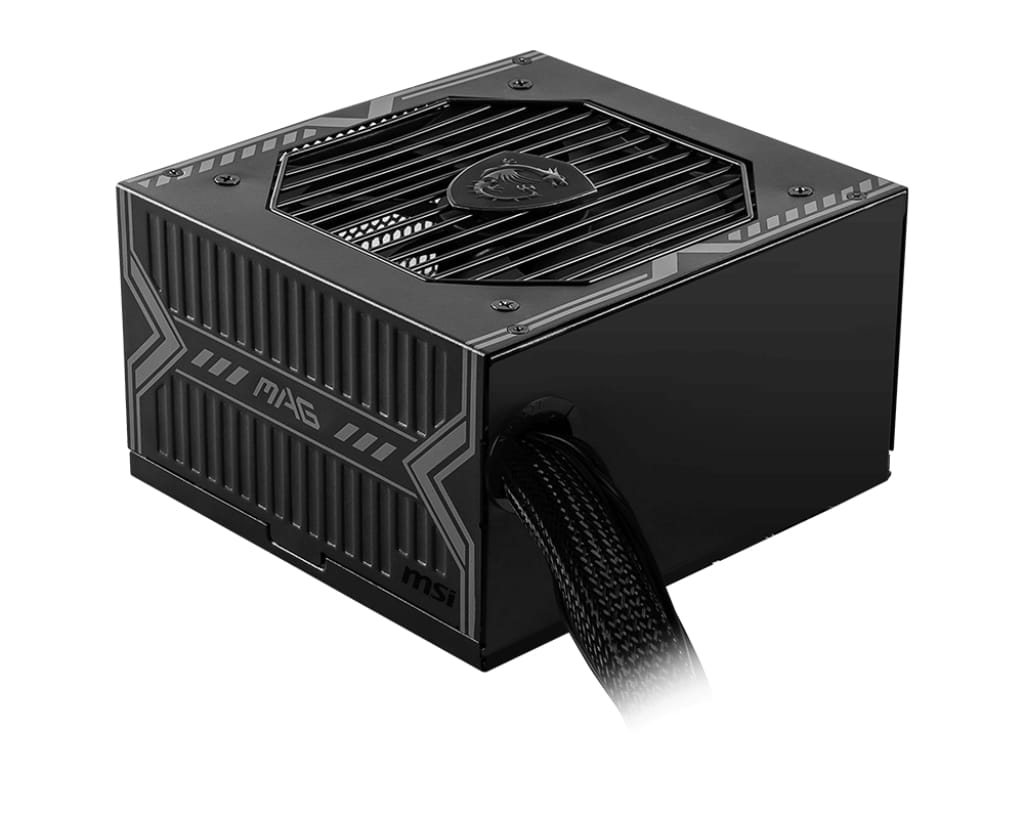

MSI MAG A750BN PCIE5 750W ATX Power Supply Unit
MSI MAG A750BN PCIE5 750W ATX Power Supply Unit
FEATURES:
MSI MPG A750GF The MPG gaming power supply can support the NVIDIA GeForce RTX 30/20 Series and AMD GPUs. Prepared for the highest of requirements, the MPG power supply s IO supports can support different and versatile ways of connection according to the power connector design of different graphics cards.
Supports the NVIDIA GeForce RTX 30 Series GPUs
Full modular cable design
Flat cable equipment
10-year warranty
80 Plus Gold certified for high efficiency
100% all Japanese 105oC capacitor
Active PFC design
Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
LLC Half Bridge Topology with DC-DC module design
SPECIFICATIONS:
EFFICIENCY RATING 80 PLUS Gold (up to 90%)
MODULAR Yes (full modular)
FAN SIZE 120 mm
FAN BEARING Fluid Dynamic Bearing
DIMENSIONS (DXWXH) 140 x 150 x 86 mm
PFC TYPE Active PFC
INPUT VOLTAGE RANGE 100~240 VAC
POWER WATT 750W
POWER EXCURSION 1500W (*up to 200% of the PSU s rated power for 100 1/4s)
INPUT FREQUENCY RANGE 47-63Hz
PROTECTION OCP / OVP / OPP / OTP / SCP / UVP
ATX (24 PIN) 1
EPS (4+4 PIN) 2
PCI-E 5.0 (16 PIN) 1 (450W)
PCI-E (6+2 PIN) 3
SATA (15 PIN) 8
MOLEX (4 PIN) 4
FDD (4 PIN) 1
FEATURES:
MSI MPG A750GF The MPG gaming power supply can support the NVIDIA GeForce RTX 30/20 Series and AMD GPUs. Prepared for the highest of requirements, the MPG power supply s IO supports can support different and versatile ways of connection according to the power connector design of different graphics cards.
Supports the NVIDIA GeForce RTX 30 Series GPUs
Full modular cable design
Flat cable equipment
10-year warranty
80 Plus Gold certified for high efficiency
100% all Japanese 105oC capacitor
Active PFC design
Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
LLC Half Bridge Topology with DC-DC module design
SPECIFICATIONS:
EFFICIENCY RATING 80 PLUS Gold (up to 90%)
MODULAR Yes (full modular)
FAN SIZE 120 mm
FAN BEARING Fluid Dynamic Bearing
DIMENSIONS (DXWXH) 140 x 150 x 86 mm
PFC TYPE Active PFC
INPUT VOLTAGE RANGE 100~240 VAC
POWER WATT 750W
POWER EXCURSION 1500W (*up to 200% of the PSU s rated power for 100 1/4s)
INPUT FREQUENCY RANGE 47-63Hz
PROTECTION OCP / OVP / OPP / OTP / SCP / UVP
ATX (24 PIN) 1
EPS (4+4 PIN) 2
PCI-E 5.0 (16 PIN) 1 (450W)
PCI-E (6+2 PIN) 3
SATA (15 PIN) 8
MOLEX (4 PIN) 4
FDD (4 PIN) 1
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 750 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Maximum input current (@110V) | 10 A |
| Maximum input current (@220V) | 5 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 750 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 85% |
| Power protection features Features that protect the device against power problems e.g. overload. | Over current, Over power, Over voltage, Short circuit |
| Ports & interfaces | |
| Motherboard power connector The way in which the motherboard is connected to the power supply. | 24-pin ATX |
| Number of SATA power connectors | 5 |
| Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. | 2 |
| EPS power connector (4+4 pin) |
 |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power connectors (16-pin) | 1 |
| ATX Power connector (24-pin) |
|
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
| Performance | |
| 80 PLUS certification | 80 PLUS Bronze |
| Purpose What the product is used for. | PC |
| Power supply unit (PSU) form factor | ATX |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Illumination The device has illumination. |
 |
| On/off switch The button which is pressed to switch the device on or off. |
|
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 150 mm |
| Package depth The distance from the front to the back of the packaging. | 140 mm |
| Package height The distance from the top to the bottom of the packaging. | 86 mm |
| SKU | 768083 |
| MPN | MAG A750BN PCIE5 |
| Brand | MSI |
| Product Condition | Brand New/Unused |
| PSU Form Factor | ATX / PS2 |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://au.msi.com/ |
