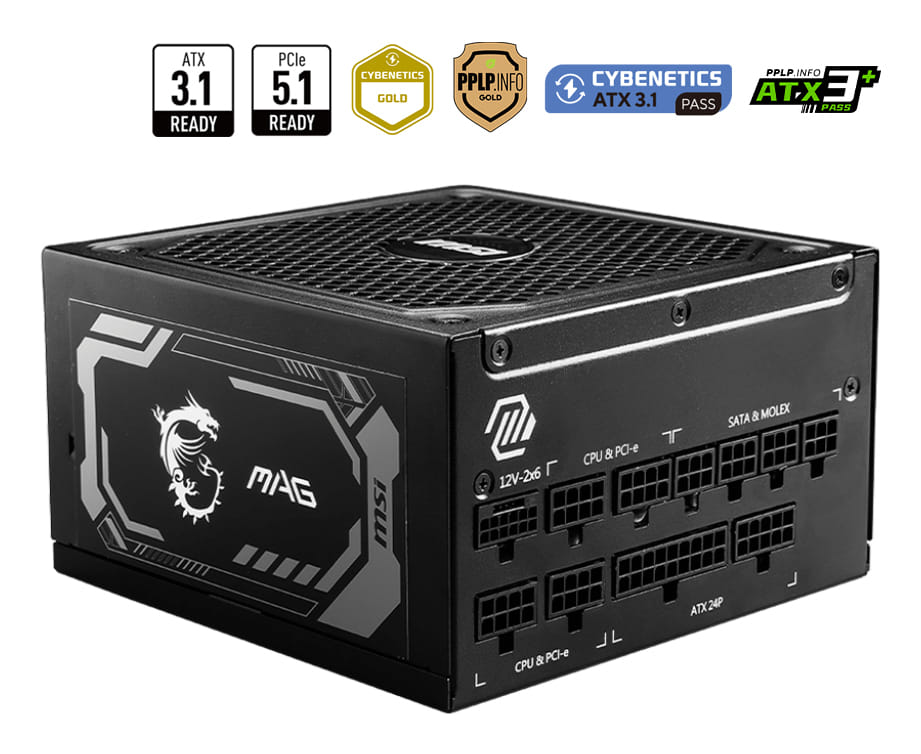

MSI MAG A1250GL PCIE5 ATX Power Supply Unit, 80 PLUS Gold, Fully modular flat cables, 0 RPM Mode, Active PFC design
MSI MAG A1250GL PCIE5 ATX Power Supply Unit, 80 PLUS Gold, Fully modular flat cables, 0 RPM Mode, Active PFC design
FEATURES:
Supports Nvidia® GeForce RTXTM 40 Series graphics cards
Full modular design
Flat cables
80 Plus Gold certified for high efficiency
100% all Japanese 105oC capacitor
Active PFC design
Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
LLC Half Bridge Topology with DC-DC module design
SPECIFICATIONS:
Efficiency Rating 80 Plus Gold (Up To 90%)
Modular Yes (Fully Modular)
Fan Size 135 Mm
Fan Bearing Fluid Dynamic Bearing
Dimensions (Dxwxh) 150 X 150 X 86 Mm
Pfc Type Active Pfc
Input Voltage Range 100~240 Vac
Power Watt 1000W
Power Excursion 2000W (*Up To 200% Of The Psu S Rated Power For 100 s)
Input Frequency Range 50~60 Hz
Protection Ocp / Ovp / Opp / Otp / Scp / Uvp
Atx (24 Pin) 1
Eps (4+4 Pin) 2
Pci-E 5.0 (16 Pin) 1 (600W)
Pci-E (6+2 Pin) 6
Sata (15 Pin) 12
Molex (4 Pin) 4
Fdd (4 Pin) 1
FEATURES:
Supports Nvidia® GeForce RTXTM 40 Series graphics cards
Full modular design
Flat cables
80 Plus Gold certified for high efficiency
100% all Japanese 105oC capacitor
Active PFC design
Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
LLC Half Bridge Topology with DC-DC module design
SPECIFICATIONS:
Efficiency Rating 80 Plus Gold (Up To 90%)
Modular Yes (Fully Modular)
Fan Size 135 Mm
Fan Bearing Fluid Dynamic Bearing
Dimensions (Dxwxh) 150 X 150 X 86 Mm
Pfc Type Active Pfc
Input Voltage Range 100~240 Vac
Power Watt 1000W
Power Excursion 2000W (*Up To 200% Of The Psu S Rated Power For 100 s)
Input Frequency Range 50~60 Hz
Protection Ocp / Ovp / Opp / Otp / Scp / Uvp
Atx (24 Pin) 1
Eps (4+4 Pin) 2
Pci-E 5.0 (16 Pin) 1 (600W)
Pci-E (6+2 Pin) 6
Sata (15 Pin) 12
Molex (4 Pin) 4
Fdd (4 Pin) 1
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 1250 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power Factor Correction (PFC) type | Active |
| Number of +12V rail(s) | 1 |
| Efficiency | 90% |
| Power protection features Features that protect the device against power problems e.g. overload. | Over current, Over power, Over total voltage, Over voltage, Short circuit, Under voltage |
| Ports & interfaces | |
| Motherboard power connector The way in which the motherboard is connected to the power supply. | 24-pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 12 |
| SATA power cable length | 500 mm |
| Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. | 4 |
| Peripheral (Molex) power cable length | 150 mm |
| EPS power connector (8-pin) |
 |
| EPS power connector (4+4 pin) |
 |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (16-pin) | 1 |
| PCI Express power connectors (12+4 pin) cable length | 500 mm |
| Cabling type | Fully-Modular |
| Performance | |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose What the product is used for. | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version ATX (Advanced Technology eXtended) is a motherboard form factor specification developed by Intel in 1995. The specification defines the key mechanical dimensions, mounting point, I/O panel, power and connector interfaces between a computer case, a motherboard and a power supply. There are many versions of ATX including ATX12V 1.x and ATX12V v2.3. | 3.1 |
| Bearing technology | Hydro bearing |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 13.5 cm |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Illumination The device has illumination. |
|
| Packaging content | |
| Cables included | CPU, PCIe, Peripheral (Molex), SATA |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 150 mm |
| Depth The distance from the front to the back of something. | 150 mm |
| Height The measurement of the product from head to foot or from base to top. | 86 mm |
| SKU | 786713 |
| MPN | MAG A1250GL PCIE5 |
| Brand | MSI |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 10 Years Warranty |
| Warranty Contact | https://au.msi.com/ |
