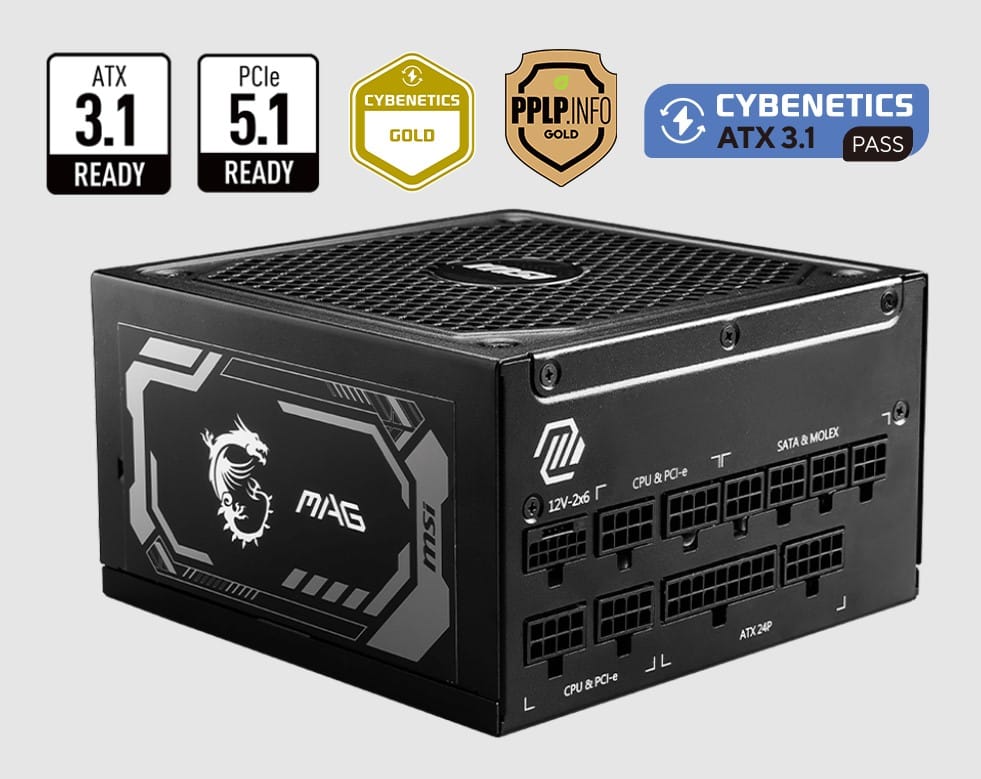

MSI MAG A1000GL PCIE5 ATX Power Supply Unit, 80 PLUS Gold, Fully modular flat cables, 0 RPM Mode, Active PFC design
MSI MAG A1000GL PCIE5 ATX Power Supply Unit, 80 PLUS Gold, Fully modular flat cables, 0 RPM Mode, Active PFC design
FEATURES:
Supports Nvidia® GeForce RTXTM 40 Series graphics cards
Full modular design
Flat cables
80 Plus Gold certified for high efficiency
100% all Japanese 105oC capacitor
Active PFC design
Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
LLC Half Bridge Topology with DC-DC module design
SPECIFICATIONS:
Efficiency Rating 80 Plus Gold (Up To 90%)
Modular Yes (Fully Modular)
Fan Size 135 Mm
Fan Bearing Fluid Dynamic Bearing
Dimensions (Dxwxh) 150 X 150 X 86 Mm
Pfc Type Active Pfc
Input Voltage Range 100~240 Vac
Power Watt 1000W
Power Excursion 2000W (*Up To 200% Of The Psu S Rated Power For 100 s)
Input Frequency Range 50~60 Hz
Protection Ocp / Ovp / Opp / Otp / Scp / Uvp
Atx (24 Pin) 1
Eps (4+4 Pin) 2
Pci-E 5.0 (16 Pin) 1 (600W)
Pci-E (6+2 Pin) 6
Sata (15 Pin) 12
Molex (4 Pin) 4
Fdd (4 Pin) 1
FEATURES:
Supports Nvidia® GeForce RTXTM 40 Series graphics cards
Full modular design
Flat cables
80 Plus Gold certified for high efficiency
100% all Japanese 105oC capacitor
Active PFC design
Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
LLC Half Bridge Topology with DC-DC module design
SPECIFICATIONS:
Efficiency Rating 80 Plus Gold (Up To 90%)
Modular Yes (Fully Modular)
Fan Size 135 Mm
Fan Bearing Fluid Dynamic Bearing
Dimensions (Dxwxh) 150 X 150 X 86 Mm
Pfc Type Active Pfc
Input Voltage Range 100~240 Vac
Power Watt 1000W
Power Excursion 2000W (*Up To 200% Of The Psu S Rated Power For 100 s)
Input Frequency Range 50~60 Hz
Protection Ocp / Ovp / Opp / Otp / Scp / Uvp
Atx (24 Pin) 1
Eps (4+4 Pin) 2
Pci-E 5.0 (16 Pin) 1 (600W)
Pci-E (6+2 Pin) 6
Sata (15 Pin) 12
Molex (4 Pin) 4
Fdd (4 Pin) 1
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 1000 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power Factor Correction (PFC) type | Active |
| Number of +12V rail(s) | 1 |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 999.6 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V) | 83.3 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |
| Power protection features Features that protect the device against power problems e.g. overload. | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Ports & interfaces | |
| Motherboard power connector The way in which the motherboard is connected to the power supply. | 24-pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 12 |
| SATA power cable length | 150,500 mm |
| Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. | 1 |
| Peripheral (Molex) power cable length | 450,500 mm |
| EPS power connector (8-pin) |
 |
| EPS power connector (4+4 pin) |
 |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (16-pin) | 1 |
| Cabling type | Fully-Modular |
| Performance | |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose What the product is used for. | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version ATX (Advanced Technology eXtended) is a motherboard form factor specification developed by Intel in 1995. The specification defines the key mechanical dimensions, mounting point, I/O panel, power and connector interfaces between a computer case, a motherboard and a power supply. There are many versions of ATX including ATX12V 1.x and ATX12V v2.3. | 3.1 |
| Bearing technology | FDB |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 13.5 cm |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Fan speed | 500 - 1800 RPM |
| Illumination The device has illumination. |
|
| On/off switch The button which is pressed to switch the device on or off. |
|
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 150 mm |
| Depth The distance from the front to the back of something. | 150 mm |
| Height The measurement of the product from head to foot or from base to top. | 86 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 169 g |
| Technical details | |
| Sustainability compliance |
|
| Other features | |
| Fan's mean time to failure (MTTF) | 150000 h |
| SKU | 791711 |
| MPN | MAG A1000GL PCIE5 |
| Brand | MSI |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 10 Years Warranty |
| Warranty Contact | https://au.msi.com/ |
