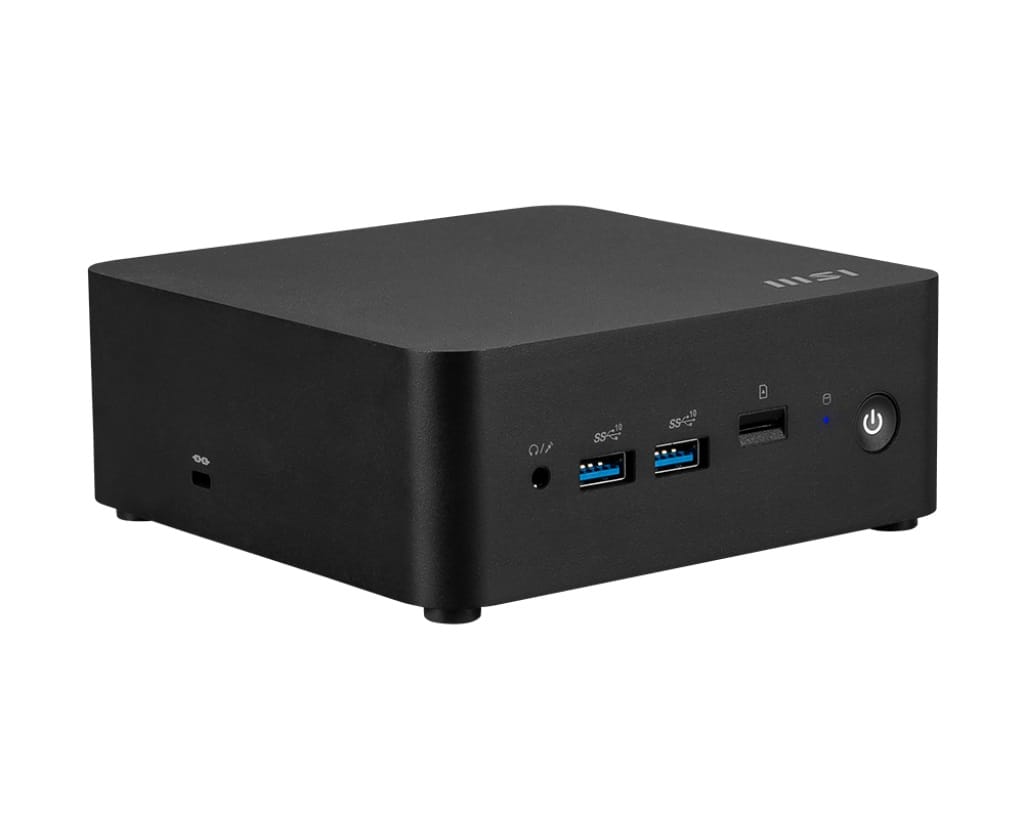

MSI Cubi NUC Mini PC, Intel Core 5 120U, 32GB RAM, 2TB NVME SSD, Windows 11 Home

Processor
Processor manufacturer The manufacturer that produced the processor.	Intel
Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.	Intel Core 5
Processor generation	Intel Core (Series 1)
Processor model The model number for the processor in a computer.	120U
Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).	10
Processor threads	12
Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded.	5 GHz
Performance cores	2
Efficient cores	8
Performance-core Max Turbo Frequency	5 GHz
Efficient-core Max Turbo Frequency	3.8 GHz
Performance-core base frequency	1.4 GHz
Efficient-core base frequency	0.9 GHz
Processor cache	12 MB
Processor cache type	Smart Cache
Number of processors supported The quantity of processors which can be used by the product.	1
Processor base power	15 W
Maximum turbo power	55 W

Memory
Internal memory A computer's memory which is directly accessible to the CPU.	32 GB
Maximum internal memory The maximum internal memory which is available in the product.	64 GB
Internal memory type The type of internal memory such as RAM, GDDR5.	DDR5-SDRAM
Memory slots Number and type of memory expansion slots, including connector and memory module descriptions.	2x SO-DIMM
Memory clock speed The frequency at which the memory (e.g. RAM) runs.	5200 MHz
Supported memory types Types of memory which can be used with the product.	DDR5-SDRAM

Storage
Total storage capacity The total amount of data that can be stored on the device.	2 TB
Storage media Used for the storage of data e.g. HDD (hard disk drive), SSD (solid-state drive).	SSD
Optical drive type An optical drive uses laser to read optical discs such as CDs, DVDs and Blu-Ray. Some types of optical drive are: CD ROM drive, CR-RW (CD writer) drive, DVD-ROM.
Total SSDs capacity	2 TB
Number of SSDs installed	1
SSD capacity The Solid State Drive's data storage capacity.	2 TB
NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices.
SSD form factor The size of the solid-state drive, given in inches	M.2
Card reader integrated A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.
Compatible memory cards Types of memory cards which can be used with this product.	MicroSD (TransFlash)

Graphics
Discrete graphics card
On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.
Discrete graphics card model A graphics adapter (often known as a video card) generates images for a display. A discrete graphics adapter plugs into the motherboard, and usually produces much better graphics than an integrated graphics adapter. There are various models of discrete graphics adapters.	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel Graphics
On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.	Intel Graphics

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
LAN controller	Intel I226-V
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard.	Wi-Fi 6E (802.11ax)
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.
Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).	5.3

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Intel® Thunderbolt 4
Thunderbolt 4 ports quantity	2
DVI port Digital Visual Interface (DVI) is a video display interface to connect a video source to a display device, such as a computer monitor.
HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.	2
HDMI version	1.4b/2.1
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	2
Microphone in The socket where a microphone is connected to the device.
Headphone outputs Number of sockets /ports where headphones are connected.	1
Combo headphone/mic port
DC-in jack The socket/plug where the DC electricity supply connects to the device.

Design
Chassis type The type of rigid framework onto which is the hosuing for device components.	Mini PC
VESA mounting
Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.
Cable lock slot type	Kensington
Product colour The colour e.g. red, blue, green, black, white.	Black
Housing material What the casing of the product is made of.	Plastic

Performance
Motherboard chipset The chipset connects the microprocessor to the rest of the motherboard.	Intel SoC
Motherboard form factor Design of the motherboard (ATX, BTX etc).	NUC
Built-in speaker(s) The device contains speaker(s) to produce sound.
Trusted Platform Module (TPM)
Product type The sub-category of the product.	Mini PC
Trusted Platform Module (TPM) version	2.0

Software
Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.

Power
Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable.	120 W

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 35 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-20 - 60 °C
Operating relative humidity (H-H)	0 - 85%
Storage relative humidity (H-H)	0 - 90%

Certificates
Certification	FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI, RCM(C-Tick)

Weight & dimensions
Width The measurement or extent of something from side to side.	132.5 mm
Depth The distance from the front to the back of something.	135.6 mm
Height The measurement of the product from head to foot or from base to top.	50.1 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	625 g
Package width The distance from one side of the packaging to the other.	205 mm
Package depth The distance from the front to the back of the packaging.	220 mm
Package height The distance from the top to the bottom of the packaging.	94 mm
Package weight Weight of the packaged product.	1.45 kg

Packaging content
Mouse included A mouse is included with this product.
Keyboard included A keyboard is part of the bundle/set.

Display
Display included This product includes a display.

Other features
Power supply type The type of power supply which this product uses.	External AC adapter
Panel mounting interface The product can be used wih VESA mounting interfaces.	100 x 100 mm
Graphics card family	Intel
Cooling type The method used to cool the device or to cool the air around the device.	Active
Number of displays supported The number of displays that can be used with this product.	4
Number of M.2 (M) slots	2
