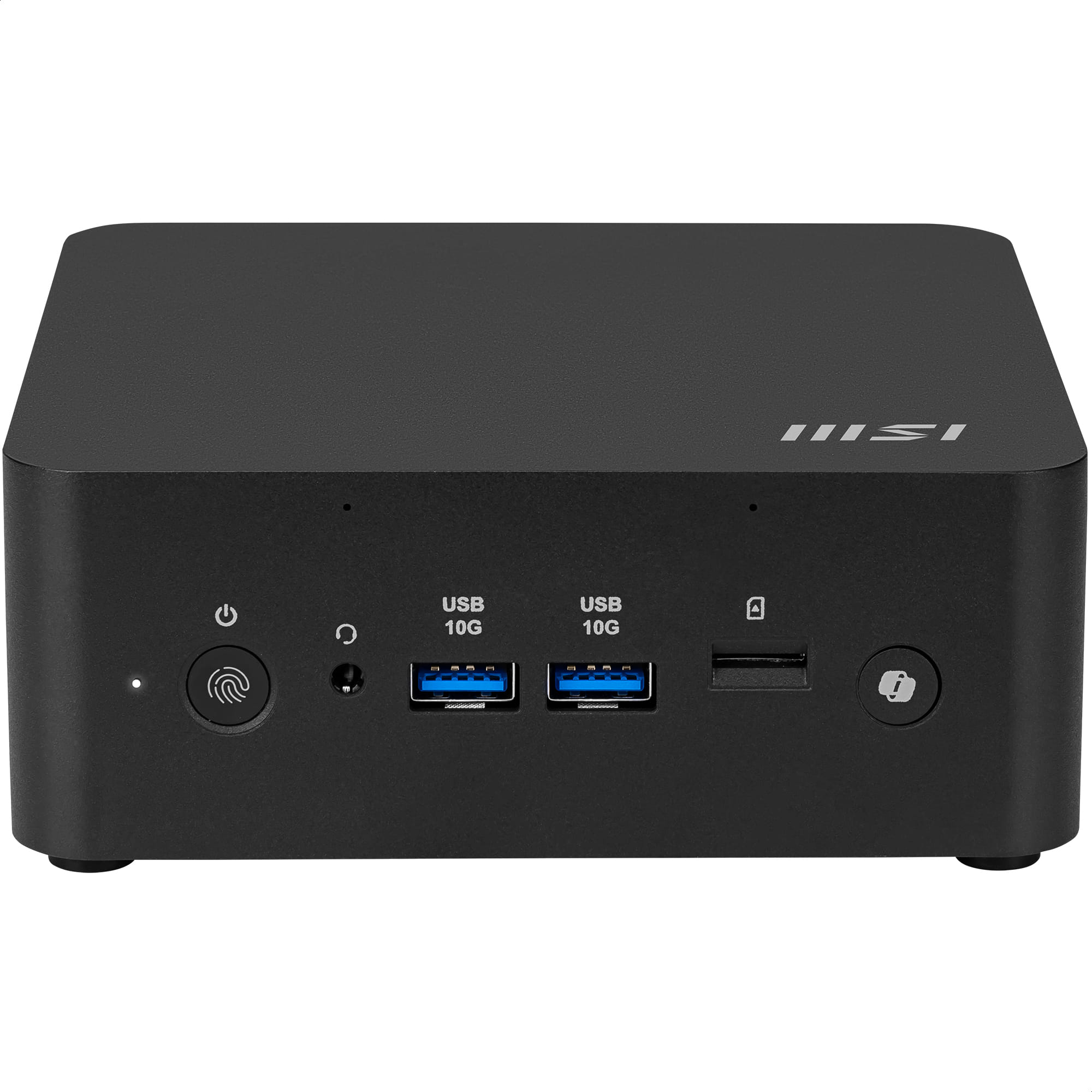

MSI Cubi NUC AI+ 2MG-003AU, Intel Core Ultra 7, 258V, 32 GB, LPDDR5x-SDRAM, 1 TB, Windows 11 Pro
Resilient and Pioneering Spirit of Your Business
Your business should be empowered to stop at nothing while navigating your journey with the MSI Business & Productivity Series products.
You sketch it.
Cocreator creates it.
Let your inner artist thrive with guidance from Cocreator.
Built-in D-Mic & Speaker
Enabling voice control for AI applications using the built-in D-Mic & speaker eliminates the need for external audio devices, conserving desk space and reducing clutter.
Intel® AI Playground
Offering various AI capabilities, including image creation, enhancement, and chatbot responses, all functions run locally on the PC, ensuring privacy and control over content and input.
For more information, please refer to the official Intel® website.
Mini Yet Powerful
The Cubi NUC comes with a perfect combination of Mini and Power, featuring a 0.826-liter chassis.
Maximize Space with the Versatile Cubi NUC
The Cubi NUC is perfect for spaces with limited room, featuring a 0.826-liter chassis. It can be mounted behind a monitor, on a wall, or in digital signage, freeing up desk space and creating a tidier workspace.
Tailored for Professional Users
Equipped with up to Intel® Core™ Ultra 9 Processor, it delivers faster and more reliable performance, enabling users to multitask various applications effortlessly.
Wi-Fi 7 Support
Wi-Fi 7 delivers ultra-fast speeds and increased network capacity, which is essential for efficiently managing AI workloads.
LPDDR5X Memory on Package (MOP)
LPDDR5X memory can enhance work efficiency and quality, processing large amounts of data and complex multitasking quickly and reducing waiting times and delays.
Thunderbolt 4:
A Single Cable to Serve All
The Thunderbolt 4 enables rapid data transfer up to 40 Gbps & power delivery input of up to 100W, crucial for handling large datasets in AI applications, making it an excellent choice for both charging and displaying through a single port.
3-Display Support
Supporting up to 3 displays with HDMI™-out and Thunderbolt 4 allows for increased productivity by providing more screen space to manage multiple applications simultaneously.
VESA Mountable Design
With its VESA Mountable design, the Cubi NUC Series can be easily installed in any location, providing users with greater flexibility and efficient space management in both home and office settings.
MSI Power Link
The Cubi NUC Series can be powered on using the power button on the MSI-selected monitor to bring the most convenient user experience
MSI Frozr AI PRO
MSI Frozr AI PRO cooling design enhances airflow, increases static pressure, and effectively lowers system temperatures for improved cooling and performance inside your PC.
Built for Sustainability
The Cubi NUC Series blends business-centric design with environmental responsibility - an embodiment of MSI's dedication to sustainability. By utilizing green material, PCR (Post-Consumer Recycled) plastic, ensures not only the products' durability but also commits to a greener world.
Our commitment extends to incorporating sustainable materials in both our product design and packaging. The Cubi NUC Series embodies sustainable value and heightened productivity.
Sustainably Sourced Wood Pulp with FSC Certification
FSC-certified cartons are made from sustainably sourced wood pulp, ensuring responsible forest management. This certification guarantees that the materials are renewable and low-carbon, promoting environmental sustainability.
By using FSC-certified cartons, MSI supports sustainable practices and contributes to the preservation of forests for future generations
Renewable Energy
Since 2021, MSI has installed solar power systems in its facilities and gradually increased the proportion of purchased renewable energy.
By 2024, it has achieved a carbon reduction of over 70%, with more than 99% of the electricity used in its factories coming from renewable sources.
This demonstrates MSI's commitment to achieving net-zero sustainability by 2050.
MSI Center
The MSI Center allows for easy optimization and resource allocation to enhance software performance.
External Power Switch
The optional external power switch significantly enhances the convenience of turning on the computer. In cases where the computer is situated in a hard-to-reach area, opting for the external power switch on the desk is far superior to bending down to turn it on.
B2B Projects
Over the past years, MSI has successfully supported countless of B2B projects, including government tenders, restaurant & hotel facilitation, shopping mall navigation projects, school & university developments and professional office projects.
Your business should be empowered to stop at nothing while navigating your journey with the MSI Business & Productivity Series products.
You sketch it.
Cocreator creates it.
Let your inner artist thrive with guidance from Cocreator.
Built-in D-Mic & Speaker
Enabling voice control for AI applications using the built-in D-Mic & speaker eliminates the need for external audio devices, conserving desk space and reducing clutter.
Intel® AI Playground
Offering various AI capabilities, including image creation, enhancement, and chatbot responses, all functions run locally on the PC, ensuring privacy and control over content and input.
For more information, please refer to the official Intel® website.
Mini Yet Powerful
The Cubi NUC comes with a perfect combination of Mini and Power, featuring a 0.826-liter chassis.
Maximize Space with the Versatile Cubi NUC
The Cubi NUC is perfect for spaces with limited room, featuring a 0.826-liter chassis. It can be mounted behind a monitor, on a wall, or in digital signage, freeing up desk space and creating a tidier workspace.
Tailored for Professional Users
Equipped with up to Intel® Core™ Ultra 9 Processor, it delivers faster and more reliable performance, enabling users to multitask various applications effortlessly.
Wi-Fi 7 Support
Wi-Fi 7 delivers ultra-fast speeds and increased network capacity, which is essential for efficiently managing AI workloads.
LPDDR5X Memory on Package (MOP)
LPDDR5X memory can enhance work efficiency and quality, processing large amounts of data and complex multitasking quickly and reducing waiting times and delays.
Thunderbolt 4:
A Single Cable to Serve All
The Thunderbolt 4 enables rapid data transfer up to 40 Gbps & power delivery input of up to 100W, crucial for handling large datasets in AI applications, making it an excellent choice for both charging and displaying through a single port.
3-Display Support
Supporting up to 3 displays with HDMI™-out and Thunderbolt 4 allows for increased productivity by providing more screen space to manage multiple applications simultaneously.
VESA Mountable Design
With its VESA Mountable design, the Cubi NUC Series can be easily installed in any location, providing users with greater flexibility and efficient space management in both home and office settings.
MSI Power Link
The Cubi NUC Series can be powered on using the power button on the MSI-selected monitor to bring the most convenient user experience
MSI Frozr AI PRO
MSI Frozr AI PRO cooling design enhances airflow, increases static pressure, and effectively lowers system temperatures for improved cooling and performance inside your PC.
Built for Sustainability
The Cubi NUC Series blends business-centric design with environmental responsibility - an embodiment of MSI's dedication to sustainability. By utilizing green material, PCR (Post-Consumer Recycled) plastic, ensures not only the products' durability but also commits to a greener world.
Our commitment extends to incorporating sustainable materials in both our product design and packaging. The Cubi NUC Series embodies sustainable value and heightened productivity.
Sustainably Sourced Wood Pulp with FSC Certification
FSC-certified cartons are made from sustainably sourced wood pulp, ensuring responsible forest management. This certification guarantees that the materials are renewable and low-carbon, promoting environmental sustainability.
By using FSC-certified cartons, MSI supports sustainable practices and contributes to the preservation of forests for future generations
Renewable Energy
Since 2021, MSI has installed solar power systems in its facilities and gradually increased the proportion of purchased renewable energy.
By 2024, it has achieved a carbon reduction of over 70%, with more than 99% of the electricity used in its factories coming from renewable sources.
This demonstrates MSI's commitment to achieving net-zero sustainability by 2050.
MSI Center
The MSI Center allows for easy optimization and resource allocation to enhance software performance.
External Power Switch
The optional external power switch significantly enhances the convenience of turning on the computer. In cases where the computer is situated in a hard-to-reach area, opting for the external power switch on the desk is far superior to bending down to turn it on.
B2B Projects
Over the past years, MSI has successfully supported countless of B2B projects, including government tenders, restaurant & hotel facilitation, shopping mall navigation projects, school & university developments and professional office projects.
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | Intel |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | Intel Core Ultra 7 |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor model The model number for the processor in a computer. | 258V |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 8 |
| Processor threads | 8 |
| Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded. | 4.8 GHz |
| Performance cores | 4 |
| Low Power Efficient-cores | 4 |
| Performance-core Max Turbo Frequency | 4.8 GHz |
| Low Power Efficient-core Max Turbo Frequency | 3.7 GHz |
| Performance-core base frequency | 2.2 GHz |
| Low Power Efficient-core Base Frequency | 2200 MHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Processor base power | 17 W |
| Maximum turbo power | 37 W |
| Neural processor unit (NPU) | |
| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support |
 |
| Windows Studio effects support |
|
| AI software frameworks supported by NPU | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Total processor performance up to | 115 TOPs |
| NPU performance up to | 47 TOPs |
| GPU performance up to | 64 TOPs |
| Memory | |
| Internal memory A computer's memory which is directly accessible to the CPU. | 32 GB |
| Maximum internal memory The maximum internal memory which is available in the product. | 32 GB |
| Internal memory type The type of internal memory such as RAM, GDDR5. | LPDDR5x-SDRAM |
| Storage | |
| Total storage capacity The total amount of data that can be stored on the device. | 1 TB |
| Storage media Used for the storage of data e.g. HDD (hard disk drive), SSD (solid-state drive). | SSD |
| Optical drive type An optical drive uses laser to read optical discs such as CDs, DVDs and Blu-Ray. Some types of optical drive are: CD ROM drive, CR-RW (CD writer) drive, DVD-ROM. |
 |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity The Solid State Drive's data storage capacity. | 1 TB |
| SSD memory type | TLC |
| SSD interface The type of interface(s) with which the Solid State Drive is connected to other hardware. | PCI Express |
| NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices. |
|
| SSD form factor The size of the solid-state drive, given in inches | M.2 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Card reader integrated A card reader is a device that enables reading and, in some cases, writing data to and from a memory card. |
|
| Compatible memory cards Types of memory cards which can be used with this product. | MicroSD (TransFlash) |
| Graphics | |
| Discrete graphics card |
|
| On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing. |
|
| Discrete graphics card model A graphics adapter (often known as a video card) generates images for a display. A discrete graphics adapter plugs into the motherboard, and usually produces much better graphics than an integrated graphics adapter. There are various models of discrete graphics adapters. | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel Arc Graphics |
| On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard. | Intel Arc Graphics 140V |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 2500 Mbit/s |
| Cabling technology Type of cable technology performance. | 10/100/1000Base-T(X) |
| LAN controller | Intel I226-V |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard. | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer | Intel |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | 2x2 |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0). | 5.3 |
| Ports & interfaces | |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Number of USB ports with PowerShare support | 1 |
| USB Type-C DisplayPort Alternate Mode |
|
| Intel® Thunderbolt 4 |
|
| Thunderbolt 4 ports quantity | 2 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Microphone in The socket where a microphone is connected to the device. |
|
| Headphone outputs Number of sockets /ports where headphones are connected. | 1 |
| Combo headphone/mic port |
|
| Expansion slots | |
| PCI Express x1 slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 slots | 1 |
| Design | |
| Chassis type The type of rigid framework onto which is the hosuing for device components. | Mini PC |
| Volume The amount of a substance contained. | 0.826 L |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Horizontal/Vertical |
| Number of 3.5" bays A drive bay is a standard-area for adding hardware to a computer. Most drive bays are fixed to the inside of a case, but some can be removed. A 3.5" drive bay is for floppy disks. | 1 |
| Number of 2.5" bays | 1 |
| Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc. |
|
| Cable lock slot type | Kensington |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Performance | |
| Market positioning Under which category can the device be positioned in the market, e.g. camera phone. | Business |
| Powered by | MSI |
| Motherboard form factor Design of the motherboard (ATX, BTX etc). | NUC |
| Audio chip | Realtek ALC256 |
| Audio system System used to play music or speech. | High Definition Audio |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
|
| Trusted Platform Module (TPM) |
|
| Product type The sub-category of the product. | Mini PC |
| Trusted Platform Module (TPM) version | 2.0 |
| Software | |
| Copilot+ PC |
|
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. | Windows 11 Pro |
| Power | |
| Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable. | 120 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 35 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 90% |
| Certificates | |
| Compliance certificates | CB, Federal Communications Commission (FCC) |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 135.6 mm |
| Depth The distance from the front to the back of something. | 132.5 mm |
| Height The measurement of the product from head to foot or from base to top. | 50.1 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 667 g |
| Package width The distance from one side of the packaging to the other. | 205 mm |
| Package depth The distance from the front to the back of the packaging. | 220 mm |
| Package height The distance from the top to the bottom of the packaging. | 94 mm |
| Package weight Weight of the packaged product. | 1.68 kg |
| Packaging content | |
| Mouse included A mouse is included with this product. |
|
| Keyboard included A keyboard is part of the bundle/set. |
|
| Display | |
| Display included This product includes a display. |
|
| Technical details | |
| Statement of conformance & platform certificate included |
|
| Not classified as hazardous under GHS |
|
| Other features | |
| Warranty period | 3 year(s) |
| SKU | 824986 |
| MPN | Cubi NUC AI+ 2MG-003AU |
| Brand | MSI |
| Product Condition | Brand New/Unused |
| Processor | Intel Core Ultra 7 258V |
| Operating System | Windows 11 Pro |
| Graphics Card | Intel Integrated Graphics |
| RAM | 32GB RAM |
| Desktop Type | Branded Computers |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://au.msi.com/ |
