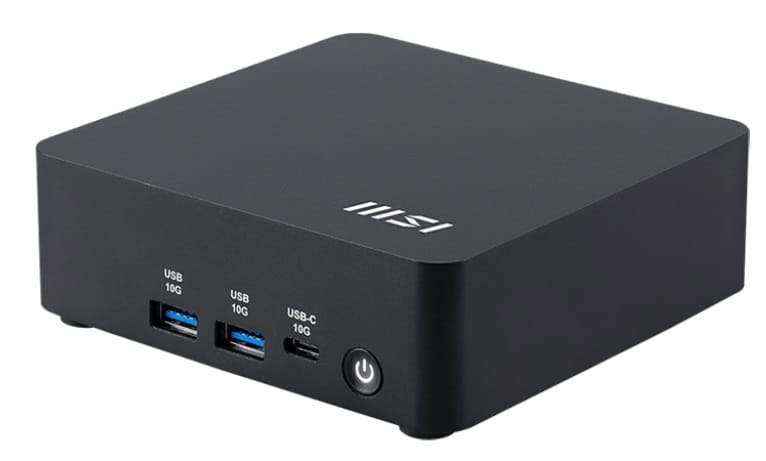

MSI CUBI NUC AI 1UMG Ultra 7-155H Barebone

Processor
Processor manufacturer The manufacturer that produced the processor.	Intel
Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.	Intel Core Ultra 7
Processor generation	Intel® Core™ Ultra (Series 1)
Processor model The model number for the processor in a computer.	155H
Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).	16
Processor threads	22
Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded.	4.8 GHz
Performance cores	6
Efficient cores	8
Low Power Efficient-cores	2
Performance-core Max Turbo Frequency	4.8 GHz
Efficient-core Max Turbo Frequency	3.8 GHz
Low Power Efficient-core Max Turbo Frequency	2.5 GHz
Performance-core base frequency	1.4 GHz
Efficient-core base frequency	0.9 GHz
Low Power Efficient-core Base Frequency	700 MHz
Built-in processor Whether or not a processor is built into the device.
Processor cache	24 MB
Processor cache type	Smart Cache

Memory
Memory slots type A memory slot, also known as a memory socket or RAM slot, is what allows computer memory (RAM) to be inserted into the computer. Depending on the motherboard, there will usually be 2 to 4 memory slots (sometimes more on high-end motherboards). The most common types of RAM are SDRAM and DDR for desktop computers and SODIMM for laptop computers, each having various types and speeds.	SO-DIMM
Number of memory slots	2
Maximum internal memory The maximum internal memory which is available in the product.	64 GB

Storage
Supported storage drive types The type of storage drives the device is compatible with.	HDD & SSD
Storage drive sizes supported The sizes of storage drives that can be used with the product.	M.2
NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices.
Card reader integrated A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.
Compatible memory cards Types of memory cards which can be used with this product.	MicroSD (TransFlash)

Graphics
On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.
Graphics card family	Intel
On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.	Intel Arc Graphics
Discrete graphics card model A graphics adapter (often known as a video card) generates images for a display. A discrete graphics adapter plugs into the motherboard, and usually produces much better graphics than an integrated graphics adapter. There are various models of discrete graphics adapters.	Not available
Number of displays supported The number of displays that can be used with this product.	4

Audio
Built-in speaker(s) The device contains speaker(s) to produce sound.

Network
Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard.	Wi-Fi 6E (802.11ax)
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
LAN controller	Intel I226-V
Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.
Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).	5.3

Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.	1
HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.	2
HDMI version	2.1
DVI port Digital Visual Interface (DVI) is a video display interface to connect a video source to a display device, such as a computer monitor.
Microphone in The socket where a microphone is connected to the device.
Combo headphone/mic port
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	2
Thunderbolt 4 ports quantity	2
DC-in jack The socket/plug where the DC electricity supply connects to the device.

Expansion slots
Number of M.2 (M) slots	2

Design
Product colour The colour e.g. red, blue, green, black, white.	Black
Cooling type The method used to cool the device or to cool the air around the device.	Active
Housing material What the casing of the product is made of.	Plastic
Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.
Cable lock slot type	Kensington
VESA mounting
Panel mounting interface The product can be used wih VESA mounting interfaces.	100 x 100 mm
Product type The sub-category of the product.	Mini PC barebone

Performance
Motherboard form factor Design of the motherboard (ATX, BTX etc).	NUC
Motherboard chipset The chipset connects the microprocessor to the rest of the motherboard.	Intel SoC
Number of processors supported The quantity of processors which can be used by the product.	1
Optical drive type An optical drive uses laser to read optical discs such as CDs, DVDs and Blu-Ray. Some types of optical drive are: CD ROM drive, CR-RW (CD writer) drive, DVD-ROM.
Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version	2.0

Certificates
Certification	FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI, RCM(C-Tick)

Software
Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.

Power
Power supply type The type of power supply which this product uses.	External AC adapter
Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable.	120 W

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 35 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-20 - 60 °C
Operating relative humidity (H-H)	0 - 85%
Storage relative humidity (H-H)	0 - 90%

Weight & dimensions
Width The measurement or extent of something from side to side.	119.6 mm
Depth The distance from the front to the back of something.	115.2 mm
Height The measurement of the product from head to foot or from base to top.	37.5 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	630 g
Package width The distance from one side of the packaging to the other.	205 mm
Package depth The distance from the front to the back of the packaging.	220 mm
Package height The distance from the top to the bottom of the packaging.	94 mm
Package weight Weight of the packaged product.	1.45 kg

Packaging content
Power cord included
AC adapter included
Display included This product includes a display.
Mouse included A mouse is included with this product.
Keyboard included A keyboard is part of the bundle/set.

Other features
Warranty period	3 year(s)
